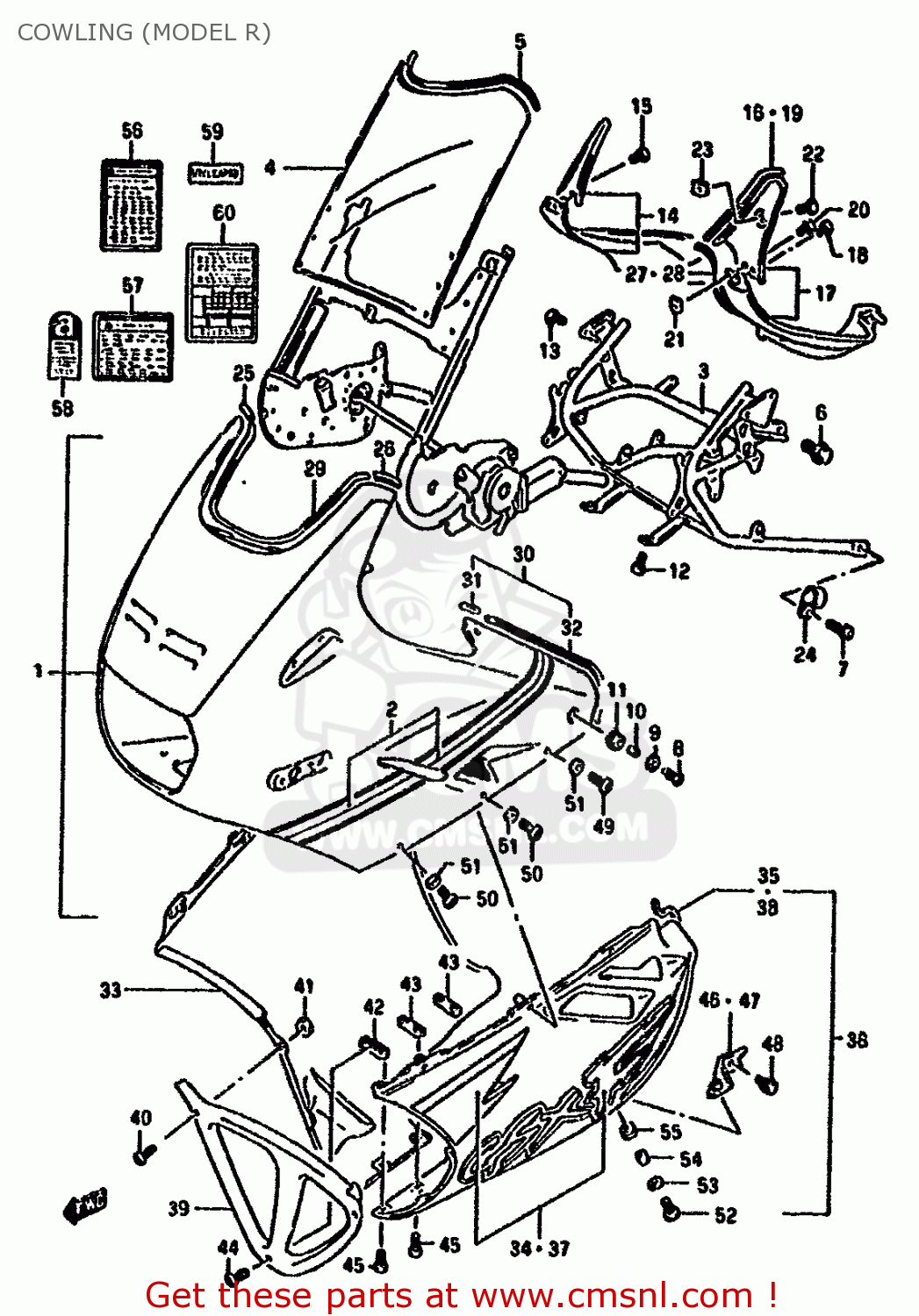

COWLING (MODEL R)

ref

part #

description

quantity

1-1

9440049C1033J
ref: 1-1
FOR 3CG

BODY ASSY,COWLING (BLACK)

€ 910.50

1-2

9440049C1020F
ref: 1-2
FOR K32

BODY ASSY,COWLING

€ 969.00

2-1

6827048C01C3M
ref: 2-1
FOR 33J

TAPE SET,COWL,

€ 35.00

2-2

6827048C01C3L
ref: 2-2
FOR 20F

TAPE SET,SIDE RH

€ 45.00

2-3

6828048C01C3M
ref: 2-3
FOR 33J

TAPE SET,COWL,

€ 18.50

2-4

6828048C01C3L
ref: 2-4
FOR 20F

TAPE SET,SIDE LH

€ 50.00

3-1

9451048B11
ref: 3-1

BRACE,COWLING

€ 213.50

3-2

9451048B21
ref: 3-2
E18

BRACE,COWLING

€ 213.50

4

9461148B40
ref: 4

WINDSCREEN

€ 309.50

5

9463148B10
ref: 5
E17

MOLDING

€ 22.50

6

0910310195
ref: 6

BOLT(10X12)

€ 2.00

7

0713008163
ref: 7

BOLT

€ 3.00

8

0913906028
ref: 8

SCREW(6X20)

€ 3.50

9

0916006056
ref: 9

WASHER(6.5X18X1)

€ 2.00

10

0918006152
ref: 10

SPACER

€ 3.00

11

0932009016
ref: 11

CUSHION

€ 2.50

12

0913906030
ref: 12

SCREW(6X16)

€ 3.50

13

0214206123
ref: 13

SCREW 6X12

€ 2.00

14

9470048B10291
ref: 14

PANEL ASSY,R

€ 137.50

15

0214205087
ref: 15

SCREW

€ 2.00

16

9441948B10
ref: 16

MOLDING,COWL.

€ 6.00

17

9480048B10291
ref: 17

PANEL ASSY,L

€ 141.00

18

0214205087
ref: 18

SCREW

€ 2.00

19

9441948B10
ref: 19

MOLDING,COWL.

€ 6.00

20

0214205123
ref: 20

SCREW 5X12

€ 1.50

21

0914805020
ref: 21

NUT

€ 2.00

22

0324105123
ref: 22

SCREW L:12

€ 1.50

23

0914805020
ref: 23

NUT

€ 2.00

24

0940318406
ref: 24

CLAMP

€ 5.50

25

9442648B10
ref: 25

CAP,PANEL & COWLING,R

€ 5.50

26

9442748B10
ref: 26

CAP,PANEL & COWLING,L

€ 4.50

27

9459148B10
ref: 27

MOLDING,COWLING PANEL,R

€ 10.00

28

9459248B10
ref: 28

MOLDING,COWLING PANEL

€ 11.50

29

9441948B00
ref: 29

MOULDING

€ 6.00

30

9443948B00
ref: 30

MOLDING,COWLING BODY SIDE

€ 15.00

31

9465148B00
ref: 31

COVER,MOLDING END

€ 7.50

32

9447948B00
ref: 32

MOLDING,COWLING BODY SIDE

€ 8.50

33-1

9760048D1033J
ref: 33-1
FOR 3CG

COVER ASSY,COWL LOWER RH (BLACK)

€ 519.50

33-2

9760048D1020F
ref: 33-2
FOR K32

COVER ASSY,COWL LOWER RH (MAROON)

€ 604.50

33-3

9760048D2033J
ref: 33-3
E18,FOR 3CG

COVER ASSY,COWL LOWER RH (BLACK)

€ 519.50

33-4

9760048D2020F
ref: 33-4
E18,FOR K32

COVER ASSY,COWL LOWER RH (MAROON)

€ 604.50

34-1

6868048C31C3M
ref: 34-1
FOR 33J

TAPE SET,RH

€ 94.00

34-2

6868048C31C3L
ref: 34-2
FOR 20F

TAPE SET,RH

€ 91.50

35

9447948B10
ref: 35

MOLDING,COWLING,LOWER

€ 8.50

36-1

9770048D1033J
ref: 36-1
FOR 3CG

COVER ASSY,COWL LOWER LH (BLACK)

€ 663.00

36-2

9770048D1020F
ref: 36-2
FOR K32

COVER ASSY,COWL LOWER LH (MAROON)

€ 603.00

36-3

9770048D2033J
ref: 36-3
E18,FOR 3CG

COVER ASSY,COWL LOWER LH (BLACK)

€ 663.00

36-4

9770048C2020F
ref: 36-4
E18,FOR K32

COVER ASSY,COWL LOWER LH (MAROON)

€ 0.00

37-1

6869048C31C3M
ref: 37-1
FOR 33J

TAPE SET,LH

€ 65.00

37-2

6869048C31C3L
ref: 37-2
FOR 20F

TAPE SET,LH

€ 91.50

38

9447948B10
ref: 38

MOLDING,COWLING,LOWER

€ 8.50

39

9447548B01
ref: 39

COVER,COWLING,LOWER,FRONT

€ 66.50

40

0913905025
ref: 40

SCREW(5X14)

€ 2.00

41

0831620053
ref: 41

NUT

€ 2.00

42

9449006B00
ref: 42

BRACE,COWLING LWR COVER

€ 4.50

43

9449306B00
ref: 43

BRACE,COWLING LWR COVER RR

€ 4.00

44

0913906027
ref: 44

SCREW(6X12)

€ 3.00

45

0913906039
ref: 45

SCREW(6X16)

€ 2.50

46

9458048B11
ref: 46

BRACE,COWLING LWR,R

€ 6.00

47

9459048B11
ref: 47

BRACE,COWLING LWR,L

€ 8.00

48

0157008123
ref: 48

BOLT

€ 1.50

49

0913906028
ref: 49

SCREW(6X20)

€ 3.50

50

0913906030
ref: 50

SCREW(6X16)

€ 3.50

51

0916107005
ref: 51

WASHER

€ 3.00

52

0913906028
ref: 52

SCREW(6X20)

€ 3.50

53

0916006056
ref: 53

WASHER(6.5X18X1)

€ 2.00

54

0918006121
ref: 54

SPACER(6.4X9.2X12)

€ 2.50

55

0932009016
ref: 55

CUSHION

€ 2.50

56-1

6861248B10
ref: 56-1
E4,E21

LABEL (WARNING SCREEN)

€ 6.50

56-2

6861248B00
ref: 56-2

LABEL (WARNING SCREEN)

€ 6.50

56-3

6861248B20
ref: 56-3
E18,E22

LABEL (WARNING,SCREEN)

€ 6.50

57-1

6831940C00
ref: 57-1

LABEL

€ 8.00

57-2

6831940C20
ref: 57-2
E18,E22

LABEL, WARNING SAFETY

€ 8.00

57-3

6831940C30
ref: 57-3
E4,E21

LABEL, WARNING SAFETY

€ 8.50

57-4

6831940C40
ref: 57-4
E34

LABEL, WARNING SAFETY

€ 8.00

57-5

6831940C51
ref: 57-5
E53

LABEL

€ 8.00

58

1196782000
ref: 58
E2

LABEL,ASBESTOS WARNING

€ 2.00

59

6862317D00
ref: 59
E2

LABEL,CAUTION

€ 4.00

60-1

6833248B40
ref: 60-1

LABEL (TIRE AIR PRESSURE)

€ 0.00

60-2

6833248B50
ref: 60-2
E4

LABEL,TIRE AIR PRESSURE

€ 0.00

61

1196782000
ref: 61
E2

LABEL,ASBESTOS WARNING

€ 2.00

62-1

8693273060
ref: 62-1
E24

LABEL,FUEL CAUTION

€ 4.00

62-2

6862317D00
ref: 62-2
E2

LABEL,CAUTION

€ 4.00

63-1

6833248B40
ref: 63-1
WITH OUT DRAWING

LABEL (TIRE AIR PRESSURE)

€ 0.00

63-2

6833248B50
ref: 63-2
E4,WITH OUT DRAWING

LABEL,TIRE AIR PRESSURE

€ 0.00
