HANDLE BAR (MODEL L/M/N/P/R)

GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

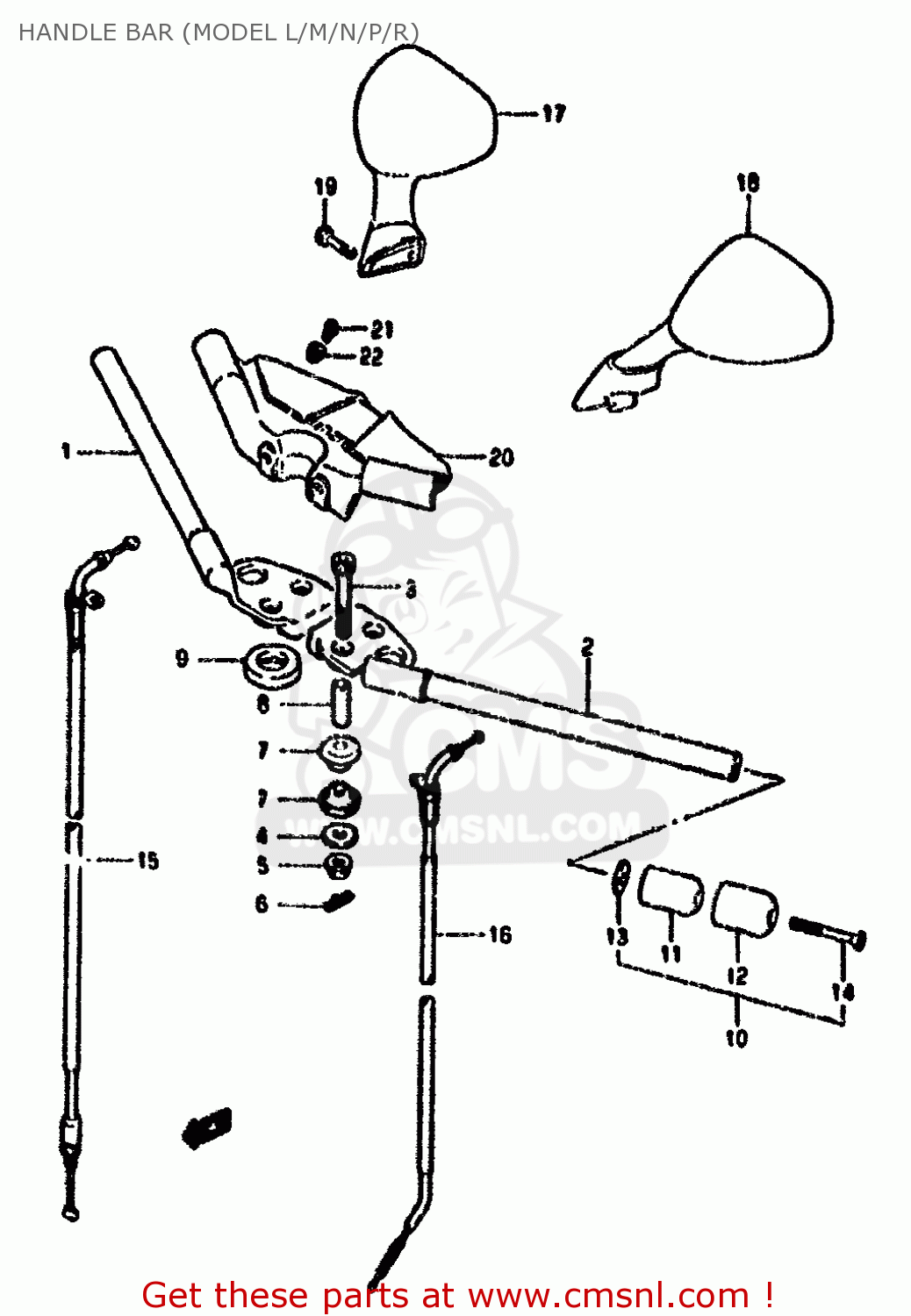

Handle bar (model l/m/n/p/r) diagram GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

HANDLE BAR (MODEL L/M/N/P/R) GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
HANDLE BAR (MODEL L/M/N/P/R) GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
HANDLE BAR (MODEL L/M/N/P/R) GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
5611148B70
ref: 1
HANDLEBAR,RIGHT
5611148B70
€ 145.50
2
5615148B70
ref: 2
HANDLEBAR,L
5615148B70
€ 137.50
3
0910610049
ref: 3
BOLT L:70
0910610049
€ 7.00
4
0916010084
ref: 4
WASHER
€ 3.50
5
0831931105
ref: 5
NUT 10MM
€ 3.00
6
0938510005
ref: 6
CLIP
0938510005
€ 1.50
7
5624042A00
ref: 7
RUBBER,HANDLE HOLDER
5624042A00
€ 23.00
8
5624348B31
ref: 8
SPACER
€ 6.50
9
5655948B70
ref: 9
CUSHION,HANDLE INNER CAP
5655948B70
€ 11.00
10-1
5620048810
ref: 10-1
MODEL L/M/N/P
BALANCER SET,HANDLEBAR
5620048810
€ 23.00
10-2
5620048820
ref: 10-2
MODEL R
BALANCER SET,HANDLEBAR
€ 23.00
11
5627100A00
ref: 11
BALANCER,HANDLEBAR
5627100A00
€ 19.50
12
5627400A11
ref: 12
CAP,BALANCER
5627400A11
€ 6.00
13
5627534400
ref: 13
SPACER,BALANCER
5627534400
€ 2.50
14-1
0213206605
ref: 14-1
MODEL L/M/N/P
SCREW
0213206605
€ 3.00
14-2
0212206603
ref: 14-2
MODEL R
SCREW
0212206603
€ 3.00
15
5830048B10
ref: 15
CABLE ASSY,THROTTLE
5830048B10
€ 44.50
16
5841048B00
ref: 16
CABLE ASSY,STARTER
5841048B00
€ 29.00
17-1
5650048C0124V
ref: 17-1
MODEL L FOR 24V
MIRROR ASSY,RR VIEW,R
€ 201.00
17-2
5650048C0133J
ref: 17-2
MODEL L FOR 3BF MODE
MIRROR ASSY,RR VIEW,R
€ 201.00
17-3
5650048C0116B
ref: 17-3
MODEL M FOR E97
MIRROR ASSY,RR
€ 171.50
17-4
5650048C0119A
ref: 17-4
MODEL M FOR 19A
MIRROR ASSY,RR VIEW,R
5650048C0119A
€ 185.50
17-5
5650048C011HU
ref: 17-5
MODEL N/P FOR K31
MIRROR ASSY,RR VIEW,R
5650048C011HU
€ 180.00
17-6
5650048C0120F
ref: 17-6
MODEL N/P/R FOR K32
MIRROR ASSY,RR VIEW,R
5650048C0120F
€ 195.00
18-1
5660048C0124V
ref: 18-1
MODEL L FOR 24V
MIRROR ASSY,RR VIEW,L
5660048C0124V
€ 201.00
18-2
5660048C0133J
ref: 18-2
MODEL L FOR 3BF MODE
MIRROR ASSY,RR VIEW,L
5660048C0133J
€ 201.00
18-3
5660048C0116B
ref: 18-3
MODEL M FOR E97
MIRROR ASSY,RR VIEW,L
€ 197.00
18-4
5660048C0119A
ref: 18-4
MODEL M FOR 19A
MIRROR ASSY,RR VIEW,L
5660048C0119A
€ 197.00
18-5
5660048C011HU
ref: 18-5
MODEL N/P FOR K31
MIRROR ASSY,RR VIEW,L
5660048C011HU
€ 180.00
18-6
5660048C0120F
ref: 18-6
MODEL N/P/R FOR K32
MIRROR ASSY,RR VIEW,L
5660048C0120F
€ 195.00
19-1
0712006205
ref: 19-1
MODEL L/M/N/P
PLUG ,6X20
0712006205
€ 3.50
19-2
0712006203
ref: 19-2
MODEL R
BOLT
0712006203
€ 3.50
20
5617048B00
ref: 20
COVER,HANDLE
5617048B00
€ 26.50
21-1
0214205124
ref: 21-1
MODEL L/M/N/P
SCREW, FRONT & REAR
€ 1.50
21-2
0214205123
ref: 21-2
MODEL R
SCREW 5X12
0214205123
€ 1.50
22
0916905009
ref: 22
WASHER
0916905009
€ 3.50
21-5
5650048B6024D
ref: 21-5
E16 FOR 24D
MIRROR ASSY,REAR VIEW RH (MAROON)
€ 0.00
21-6
5650048B6024V
ref: 21-6
E16 FOR 9RD,24V,2VV
MIRROR ASSY,REAR VIEW RH (BLUE)
€ 0.00
21-7
5650048B6033J
ref: 21-7
E16 FOR 33J
MIRROR ASSY,REAR VIEW RH (BLACK)
€ 0.00
22-1
5660048B3223S
ref: 22-1
E18,FOR 9WV
MIRROR ASSY,REAR VIEW LH (SILVER)
€ 236.00
22-2
5660048B3224D
ref: 22-2
E1,E15,E18,E22,E24,E
MIRROR ASSEMBLY,REAR VIEW,LEFT
€ 183.50
22-3
5660048B3224V
ref: 22-3
E1,E15,E18,E22,E24,E
MIRROR ASSEMBLY,REAR VIEW,LEFT
5660048B3224V
€ 127.00
22-4
5660048B3233J
ref: 22-4
E1,E15,E18,E22,E24,E
MIRROR ASSEMBLY,REAR VIEW,LEFT
€ 175.00
22-5
5660048B6024D
ref: 22-5
E16 FOR 24D
MIRROR ASSY,REAR VIEW LH (MAROON)
€ 183.50
22-6
5660048B6024V
ref: 22-6
E16 FOR 9RD,24V,2VV
MIRROR ASSY,REAR VIEW LH (BLUE)
€ 0.00
22-7
5660048B6033J
ref: 22-7
E16 FOR 33J
MIRROR ASSY,REAR VIEW LH (BLACK)
€ 0.00
23
0712006205
ref: 23
PLUG ,6X20
0712006205
€ 3.50
24
5617048B00
ref: 24
COVER,HANDLE
5617048B00
€ 26.50
25
0214205124
ref: 25
SCREW, FRONT & REAR
€ 1.50
26
0916905009
ref: 26
WASHER
0916905009
€ 3.50
