FRONT DAMPER (MODEL K/L/M/N/P)

GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

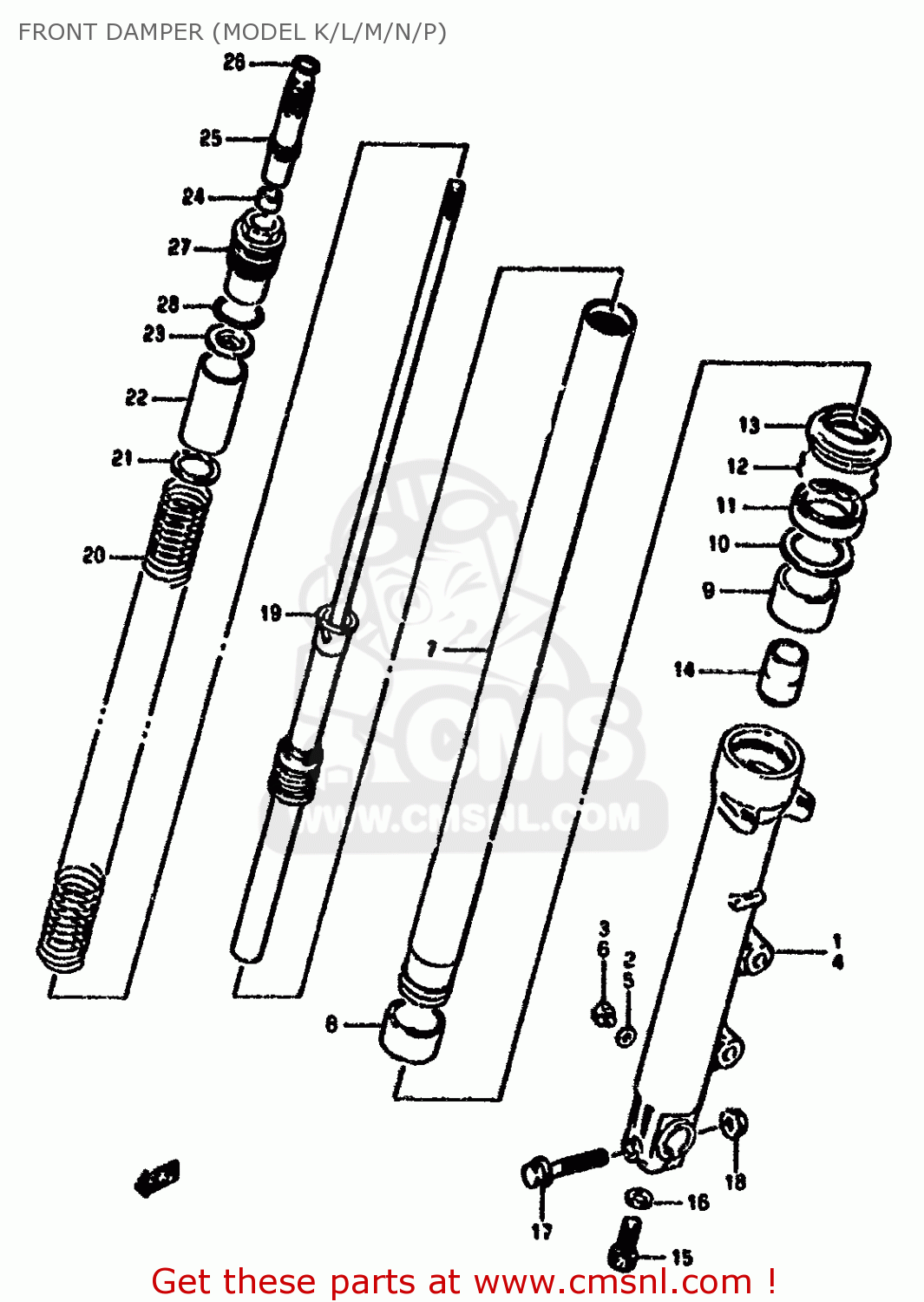

Front damper (model k/l/m/n/p) diagram GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

FRONT DAMPER (MODEL K/L/M/N/P) GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FRONT DAMPER (MODEL K/L/M/N/P) GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FRONT DAMPER (MODEL K/L/M/N/P) GSX1100F 1990 (L) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
0
5110348B70
ref: 0
MODEL K/L
DAMPER ASSEMBLY,RIGHT
€ 840.00
0
5110348C00
ref: 0
MODEL M/N/P/R
DAMPER ASSEMBLY,RIGHT
€ 840.00
0
5110448B70
ref: 0
MODEL K/L
DAMPER ASSEMBLY,LEFT
€ 527.50
0
5110448C00
ref: 0
MODEL M/N/P/R
DAMPER ASSEMBLY,LEFT
€ 527.50
1-1
5113048B31
ref: 1-1
MODEL K/L
TUBE,OUTER,RIGHT
€ 469.50
1-2
5113048C00
ref: 1-2
MODEL M/N/P/R
TUBE,OUTER,RIGHT
€ 469.50
2
5118331030
ref: 2
MODEL K/L
GASKET,DRAIN,PLUG (NAS)
5118331030
€ 4.00
3
0110706088
ref: 3
MODEL K/L
BOLT
€ 2.50
4-1
5114048B31
ref: 4-1
MODEL K/L
TUBE,FORK,LEFT,OUTER
€ 508.50
4-2
5114048C00
ref: 4-2
MODEL M/N/P/R
TUBE,OUTER,LEFT
€ 508.50
5
5118331030
ref: 5
MODEL K/L
GASKET,DRAIN,PLUG (NAS)
5118331030
€ 4.00
6
0110706088
ref: 6
MODEL K/L
BOLT
€ 2.50
7
5111048B70
ref: 7
TUBE,INNER
5111048B70
€ 346.00
8
5112148B31
ref: 8
BUSH,SLIDE
5112148B31
€ 15.50
9
5115248B31
ref: 9
BUSH,GUIDE
5115248B31
€ 20.00
10
5116838B00
ref: 10
SPACER,SEAL
5116838B00
€ 5.00
11-1
5115312C00
ref: 11-1
MODEL K/L
OIL SEAL,FRONT FORK
€ 15.50
11-2
5115308D00
ref: 11-2
MODEL M/N/P/R
SEAL,OIL
5115308D00
€ 15.50
12
5155638B00
ref: 12
CIRCLIP,FORK OIL SEAL
5155638B00
€ 4.50
13-1
5157138B00
ref: 13-1
MODEL K/L
BOOT
5157138B00
€ 19.50
13-2
5117308D00
ref: 13-2
MODEL M/N/P/R
DUST SEAL,FRONT FORK
€ 19.50
14
5119532C00
ref: 14
PIECE,OIL LOCK
€ 18.50
15
5114748130
ref: 15
BOLT(8X27)
5114748130
€ 3.50
16
5114836011
ref: 16
GASKET (NAS)
5114836011
€ 4.00
17
0151708558
ref: 17
BOLT 8X55
0151708558
€ 3.00
18
0831616088
ref: 18
NUT
0831616088
€ 2.50
19
5211048B70
ref: 19
DAMPER
€ 228.00
20
5117148B70
ref: 20
SPRING,FR FORK
€ 68.00
21
5119248B31
ref: 21
JOINT,SPRING
€ 3.50
22
5117612C10
ref: 22
COLLAR,SPRING(32.9X34X50)
5117612C10
€ 11.50
23
5117212C10
ref: 23
SEAT,SPRING,UPPER
€ 4.00
24
5182732C00
ref: 24
NUT,ROD
5182732C00
€ 1.50
25
5182848B70
ref: 25
ADJUSTER,SPRING
€ 48.50
26
5183417C00
ref: 26
O RING
€ 3.50
27
5118912C10
ref: 27
BOLT,FORK
€ 31.00
28
5111712C00
ref: 28
O RING
5111712C00
€ 3.00
