prices are in EUR

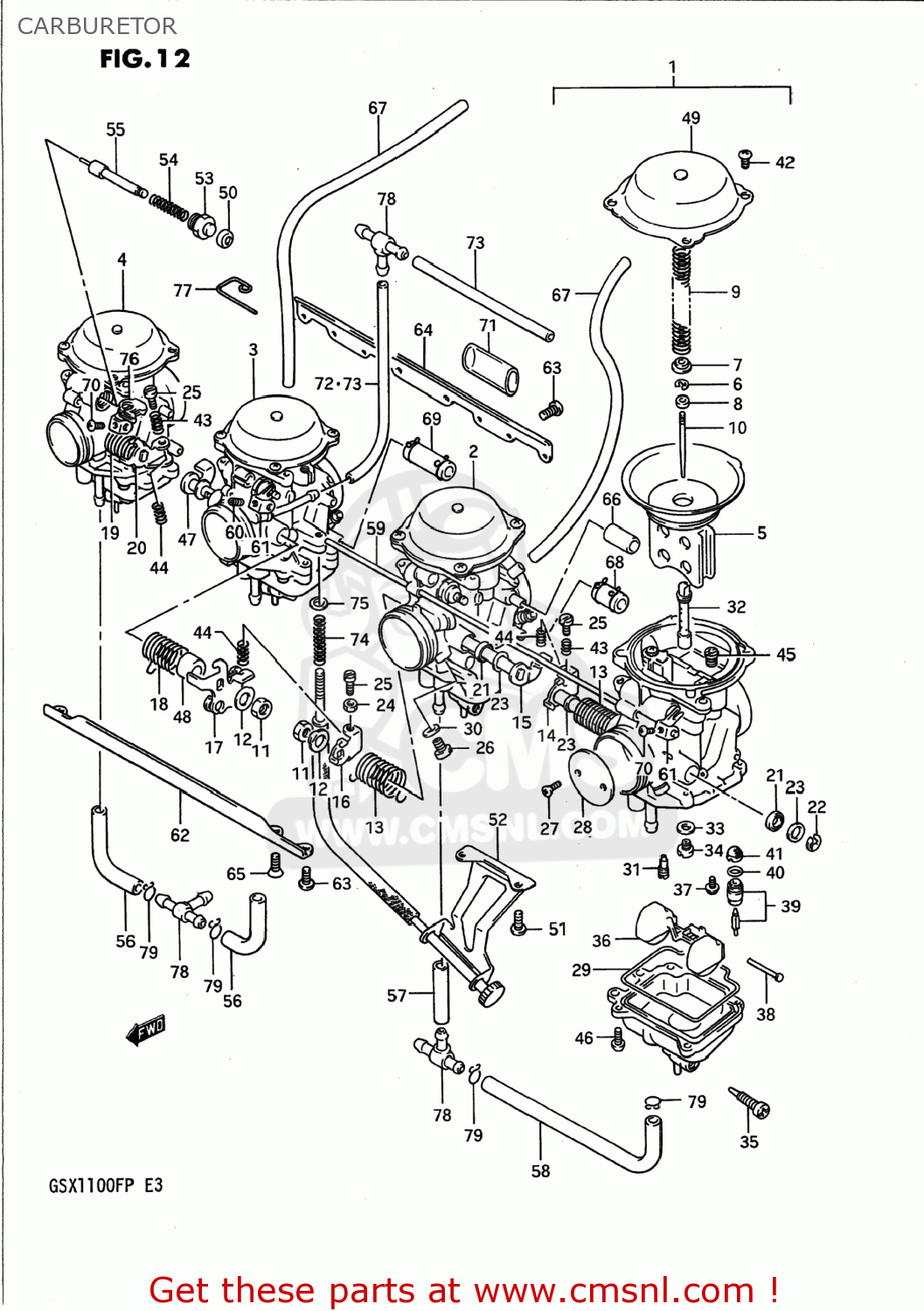

ref
part #
description
quantity
1-1
CARBURETOR ASSEMBLY,LEFT
1-2
NO PRODUCT DESCRIPTION AVAILABLE
3-1
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-2
(CA) CARBURETOR ASSEMBLY,MIDDLE
4-1
CARBURETOR ASSEMBLY,RIGHT
4-2
(CA) CARBURETOR ASSEMBLY,RIGHT
5
DIAPHRAGM ASSY
6
CLIP
7
RING
8
RING
9
SPRING
10-1
NEEDLE,JET
12
WASHER
21
SEAL
22
E RING
23
GASKET,THROTTLE SHAFT (NAS)
24
NUT,THROTTLE ROD
25
SCREW
26
SCREW
28-1
VALVE,THROTTLE (125)
28-2
VALVE,THROTTLE (130)
29
O RING,FLOAT CHAMBER
30
WASHER
31-1
JET,PILOT(32.5)
31-2
JET,PILOT(42.5)
32-1
JET,NEEDLE (P-2)
32-2
JET,NEEDLE(P-0)
34-1
JET,MAIN(112.5)
34-2
JET,MAIN(110)
35
SCREW
36
FLOAT
37
SCREW
38
PIN,FLOAT
39
VALVE ASSY,NEEDLE
40
O-RING,NEEDLE VALVE
42
SCREW
43
SPRING
45-1
JET,AIR(135)
45-2
JET,AIR
48
RING
49
COVER,DIAPHRAGM
50
CAP,STARTER VALVE
51
SCREW
52
BRACKET ASSY
53
GUIDE SCREW,PLUNGER
55
PLUNGER ASSY
57
HOSE
57
HOSE
58
HOSE
58
HOSE
65
SCREW(5X14)
69
HOSE ASSY
70
SCREW,THROTTLE ADJUST
71
HOSE(16X19X100)
75
WASHER
78
NIPPLE
