CYLINDER HEAD
GSX1100F 1992 (N) USA (E03)

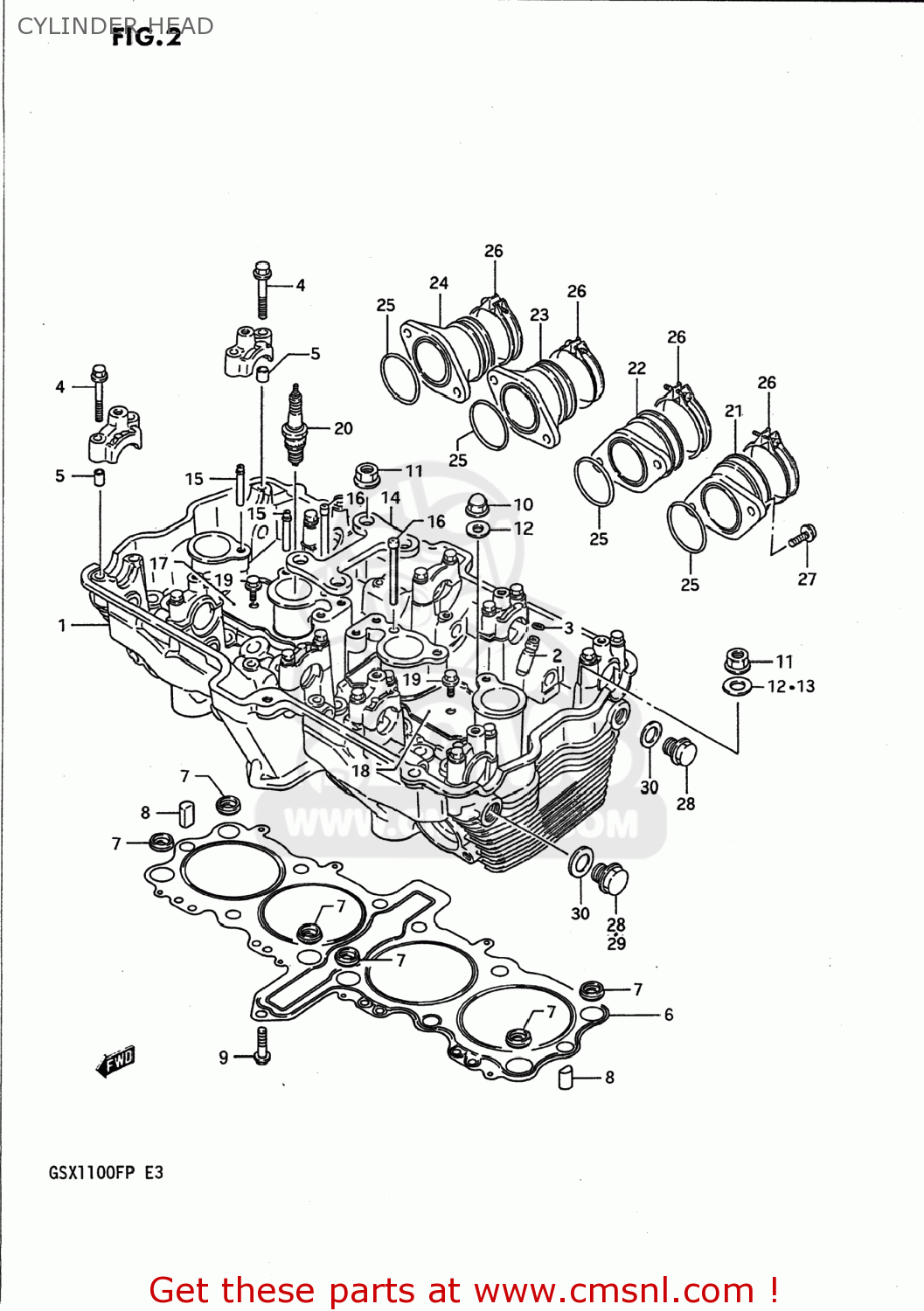

Cylinder head diagram GSX1100F 1992 (N) USA (E03)
CYLINDER HEAD GSX1100F 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110048B02
ref: 1-1
11100-48B03
HEAD ASSEMBLY,CYLINDER
€ 1,224.00
1-2
1110048B03
ref: 1-2
HEAD ASSEMBLY,CYLINDER
€ 1,224.00
1-3
1110048B10
ref: 1-3
11100-48B11
HEAD ASSEMBLY,CYLINDER
€ 1,632.00
1-3
1110048B10
ref: 1-3
11100-48B11
HEAD ASSEMBLY,CYLINDER
€ 1,632.00
1-4
1110048B11
ref: 1-4
HEAD ASSEMBLY,CYLINDER
€ 1,632.00
1-4
1110048B11
ref: 1-4
HEAD ASSEMBLY,CYLINDER
€ 1,632.00
2
1111606B70
ref: 2
GUIDE,VALVE
€ 43.00
3
0938110004
ref: 3
RING,SNAP
€ 1.50
4
0910306026
ref: 4
BOLT(6X39)
€ 2.00
5
0920608001
ref: 5
PIN(6.2X8X11)
€ 2.00
6-1
1114148B11
ref: 6-1
11141-48B22
GASKET,CYLINDER HEAD (NAS)
€ 91.00
6-2
1114148B20
ref: 6-2
11141-48B22
GASKET,CYLINDER HEAD (NAS)
€ 91.00
6-2
1114148B20
ref: 6-2
11141-48B22
GASKET,CYLINDER HEAD (NAS)
€ 91.00
6-3
1114148B21
ref: 6-3
11141-48B22
GASKET,CYLINDER HEAD (NAS)
€ 91.00
7
1114348B01
ref: 7
11143-32F00
O-RING,HEAD GASKET
€ 6.00
8
0920911007
ref: 8
PIN
€ 16.00
9-1
0151706254
ref: 9-1
01550-0625A
BOLT
€ 2.50
9-1
0151706254
ref: 9-1
01550-0625A
BOLT
€ 2.50
9-2
0151706305
ref: 9-2
01550-0630A
BOLT 6X30
€ 2.50
9-2
0151706305
ref: 9-2
01550-0630A
BOLT 6X30
€ 2.50
10-1
0915910069
ref: 10-1
NUT
€ 5.00
10-2
0915910069
ref: 10-2
NUT
€ 5.00
11-1
0831616106
ref: 11-1
08316-1010B
NUT
€ 2.00
11-2
0831616106
ref: 11-2
08316-1010B
NUT
€ 2.00
12-1
0916810031
ref: 12-1
GASKET(10.2X20X2).3 (NAS)
€ 2.00
12-2
0916810031
ref: 12-2
GASKET(10.2X20X2).3 (NAS)
€ 2.00
13
0916010060
ref: 13
09160-10039
WASHER (10.5X22X2.3)
€ 2.50
14
1113840C00
ref: 14
PLATE,HEAD REINF
€ 34.50
15
1113127A00
ref: 15
PIPE,OIL NO.1
€ 6.00
16
1113327A00
ref: 16
PIPE,OIL NO.3
€ 7.00
17
1113527A02
ref: 17
PLATE,OIL PIPE,R
€ 4.00
18
1113627A02
ref: 18
PLATE,OIL PIPE,L
€ 4.00
19
0151706128
ref: 19
01550-06127
BOLT
€ 2.50
20-1
0948200389
ref: 20-1
PLUG,SPARK(JR9B)
€ 8.00
20-2
0948200391
ref: 20-2
PLUG,SPARK(JR10B)
€ 9.00
21-1
1311006B00
ref: 21-1
13101-06B00
PIPE,INTAKE
€ 32.50
21-2
1310106B00
ref: 21-2
PIPE,INTAKE NO.1
€ 32.50
22-1
1312006B00
ref: 22-1
13102-06B00
PIPE,INTAKE
€ 33.50
22-2
1310206B00
ref: 22-2
PIPE,INTAKE NO.2
€ 33.50
23-1
1313006B00
ref: 23-1
13103-06B00
NET,INTAKE
€ 33.50
23-2
1310306B00
ref: 23-2
PIPE,INTAKE NO.3
€ 33.50
24-1
1314006B00
ref: 24-1
13104-06B00
PIPE,INTAKE
€ 33.50
24-2
1310406B00
ref: 24-2
PIPE,INTAKE NO.4
€ 33.50
25
0928040010
ref: 25
O RING(D:2.4,ID:39.7)
€ 3.50
26
0940250208
ref: 26
CLAMP
€ 5.00
27
0215206165
ref: 27
02112-0616A
SCREW
€ 2.00
28-1
0924714034
ref: 28-1
PLUG
€ 3.50
28-2
0924714034
ref: 28-2
PLUG
€ 3.50
29
0924714032
ref: 29
PLUG
€ 5.00
30
0916814004
ref: 30
GASKET(14X19.2X2) (NAS)
€ 2.50
