FRAME
GSX1100F 1992 (N) USA (E03)

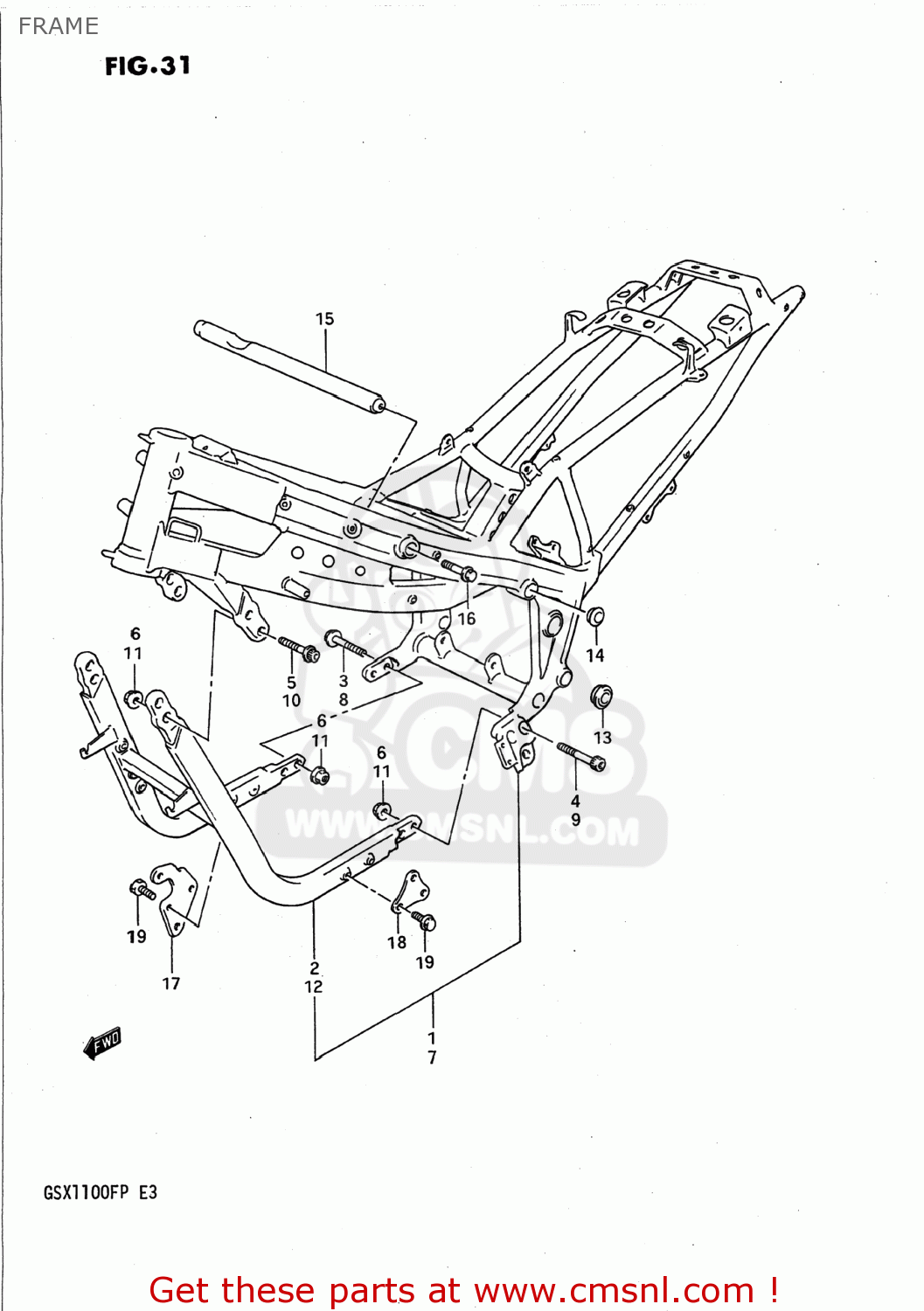

Frame diagram GSX1100F 1992 (N) USA (E03)
FRAME GSX1100F 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110048B5013L
ref: 1-1
41100-48B71-13L
FRAME
€ 1,218.00
1-2
4110048B7013L
ref: 1-2
41100-48B71-13L
FRAME
€ 1,218.00
2
4114048B5013L
ref: 2
TUBE,FRAME,DOWN
€ 143.50
3
0712010358
ref: 3
07120-1035B
BOLT,REAR RH
€ 4.00
4
0711010458
ref: 4
07130-10457
BOLT,REAR LH
€ 3.50
5
0712010408
ref: 5
07120-10407
BOLT,FRONT
€ 4.50
6
0831931107
ref: 6
NUT
€ 3.00
7-1
411004883013L
ref: 7-1
41100-48860-13L
FRAME
€ 0.00
7-2
411004886013L
ref: 7-2
FRAME SET
€ 0.00
8
0712010357
ref: 8
07120-1035B
BOLT
€ 4.00
9
0711010457
ref: 9
07130-10457
BOLT
€ 3.50
10
0712010407
ref: 10
BOLT
€ 4.50
11
0831931107
ref: 11
NUT
€ 3.00
12
4114048C6013L
ref: 12
TUBE,FRAME,DOWN
€ 0.00
13
4188848B01
ref: 13
CAP,FRAME NO.1
€ 3.50
14
4188948B01
ref: 14
CAP,FRAME NO.2
€ 4.00
15
4659048B10
ref: 15
BRIDGE,TANK RAIL
€ 64.50
16
0711010558
ref: 16
07130-10557
BOLT,TANK BRIDGE
€ 2.50
17
4191148B1213L
ref: 17
PLATE,ENGINE MOUNTING
€ 16.50
18
4192148B1113L
ref: 18
PLATE,ENG MTG NO.2
€ 13.50
19
0151708207
ref: 19
01550-08207
BOLT
€ 3.00
