MUFFLER
GSX1100F 1992 (N) USA (E03)

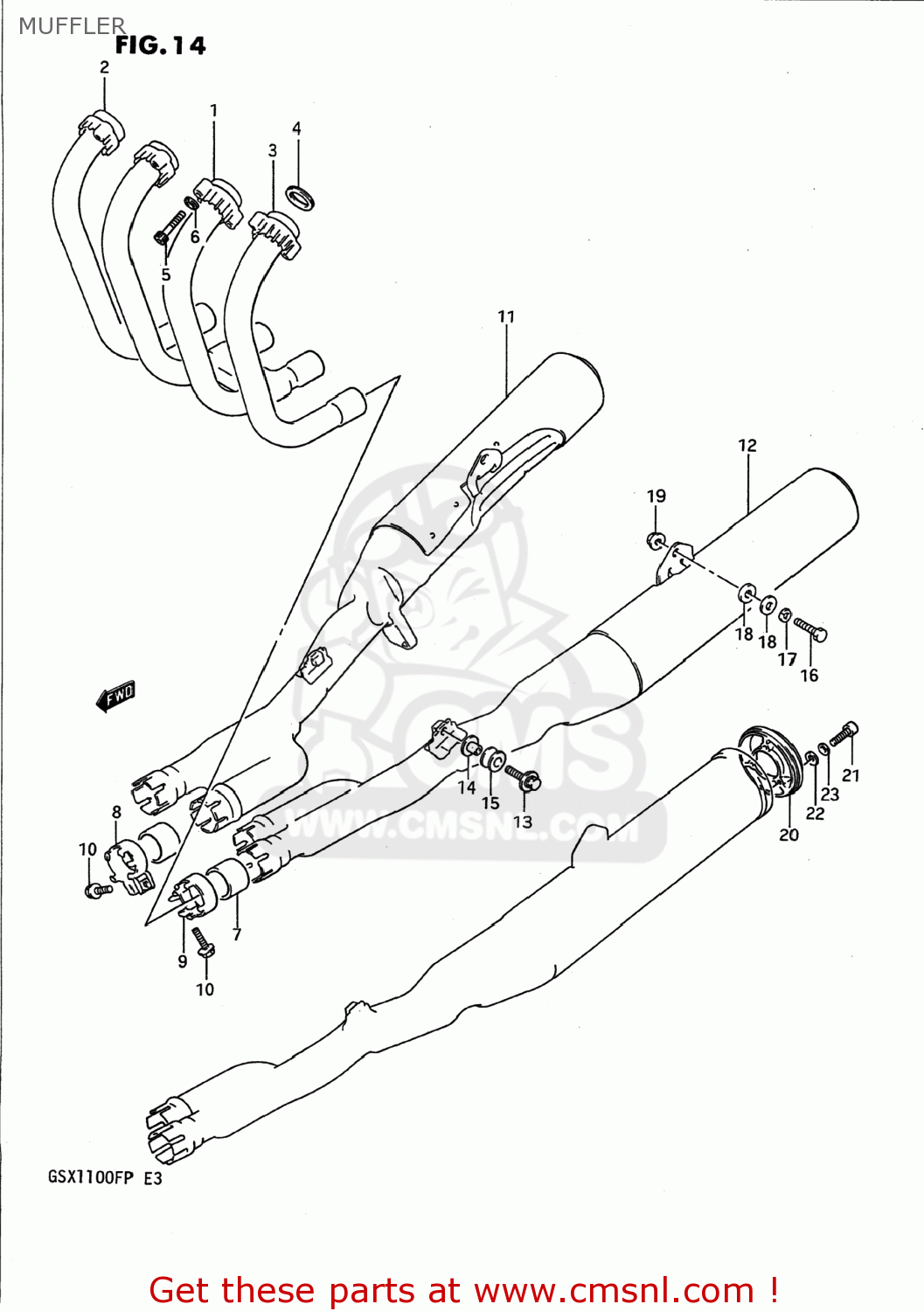

Muffler diagram GSX1100F 1992 (N) USA (E03)
MUFFLER GSX1100F 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1410048B01H01
ref: 1
EXHAUST ASSY,CTR
€ 222.00
2
1415048B01
ref: 2
PIPE,EXHAUST,R
€ 117.00
3
1416048B01
ref: 3
PIPE COMP,EXHAUST,LEFT
€ 199.00
4-1
1418148B00
ref: 4-1
14181-18C00
GASKET,EXHAUST PIPE (NAS)
€ 6.50
4-2
1418118C00
ref: 4-2
GASKET,EXHAUST (NAS)
€ 6.50
5
0711008355
ref: 5
07130-0835B
BOLT 8X35
€ 4.00
6
0916408015
ref: 6
WASHER
€ 3.00
7
1477148B01
ref: 7
CONNECTOR,MUFFLER
€ 25.00
8
1445932C00
ref: 8
14459-48B00
CLAMP,MUFFLER CONNECTOR
€ 13.00
9
1446932C00
ref: 9
14469-48B00
CLAMP,MUFFLER CONNECTOR
€ 14.00
10
0151708355
ref: 10
01550-0835A
BOLT
€ 3.50
11-1
1430548B30H01
ref: 11-1
14305-48C11-H01
MUFFLER ASSEMBLY
€ 252.00
11-2
1430548C30H01
ref: 11-2
14305-48C11-H01
MUFFLER,RIGHT
€ 252.00
11-3
1430548C80H01
ref: 11-3
14305-48C63-H01
MUFFLER ASSEMBLY
€ 387.00
11-4
1430548C81H01
ref: 11-4
14305-48C63-H01
MUFFLER ASSEMBLY
€ 387.00
12-1
1430648B30H01
ref: 12-1
14306-48C11-H01
MUFFLER ASSEMBLY
€ 252.00
12-2
1430648C30H01
ref: 12-2
14306-48C11-H01
MUFFLER,LEFT
€ 252.00
12-3
1430648C80H01
ref: 12-3
14306-48C63-H01
MUFFLER ASSEMBLY
€ 408.50
12-4
1430648C81H01
ref: 12-4
14306-48C63-H01
MUFFLER ASSEMBLY
€ 408.50
13
0911808072
ref: 13
09118-08154
BOLT 8X35
€ 3.50
14
0918008151
ref: 14
SPACER(8.6X12X17.5)
€ 6.00
15
0932012043
ref: 15
CUSHION
€ 8.00
16-1
0910010227
ref: 16-1
BOLT(10X38)
€ 3.50
16-2
0910310207
ref: 16-2
09103-10279
BOLT
€ 6.50
17
0832121107
ref: 17
08321-01107
WASHER,LOCK,10
€ 2.00
18
0916010001
ref: 18
09160-10093
WASHER
€ 2.00
19
0831616108
ref: 19
08316-10107
NUT
€ 2.00
20
1479148C40
ref: 20
COVER,MUFFLER TAIL
€ 48.50
21-1
0910606069
ref: 21-1
09106-06078
BOLT,COVER MUFFLER TAIL
€ 3.00
21-2
0910606078
ref: 21-2
BOLT(6X15)
€ 3.00
22
0916006055
ref: 22
WASHER(7X12X1)
€ 2.00
23
0916406013
ref: 23
WASHER
€ 2.50
