HEADLAMP

GSX1100F 1992 (N) USA (E03)

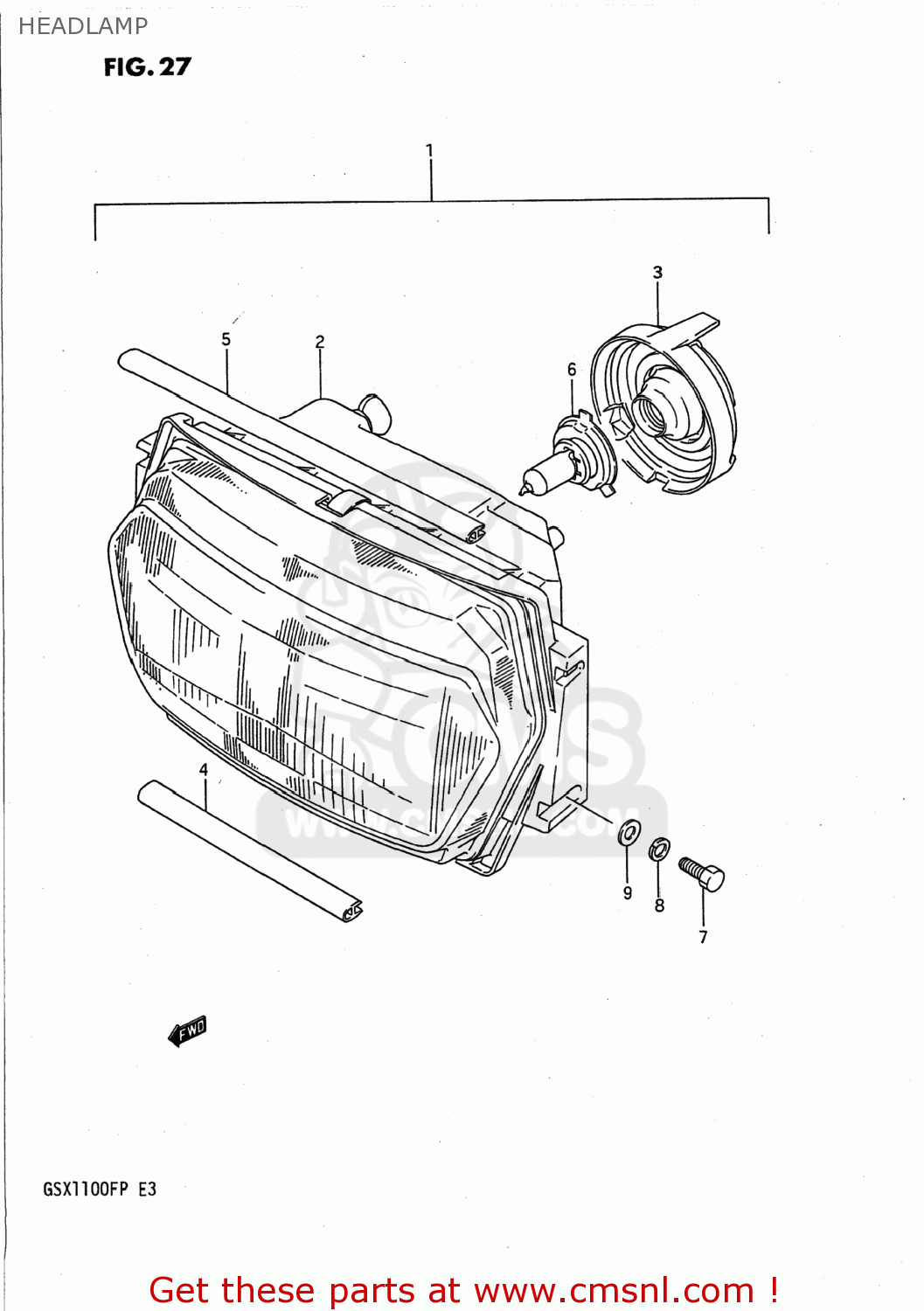

Headlamp diagram GSX1100F 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

3510048B10
ref: 1

HEADLAMP ASSEMBLY

€ 299.50

3512148B10
ref: 2

UNIT

€ 0.00

3517348B00
ref: 3

COVER,SOCKET

€ 10.50

3524248B00
ref: 4

GASKET,HEADLAMP,LOWER (NAS)

€ 5.50

3524348B00
ref: 5

GASKET,HEADLAMP,UPPER (NAS)

€ 5.50

0947112060
ref: 6

BULB(12V60/55W,H4)

€ 8.00

7-1

0110706166
ref: 7-1
01500-0616A

BOLT

€ 2.00

7-2

0117706166
ref: 7-2
01580-0616A

BOLT

€ 2.00

0832121066
ref: 8
08321-0106A

WASHER,LOCK

€ 2.00

0832221066
ref: 9
08322-0106B

WASHER, LOWER

€ 2.00
