REAR WHEEL
GSX1100F 1992 (N) USA (E03)

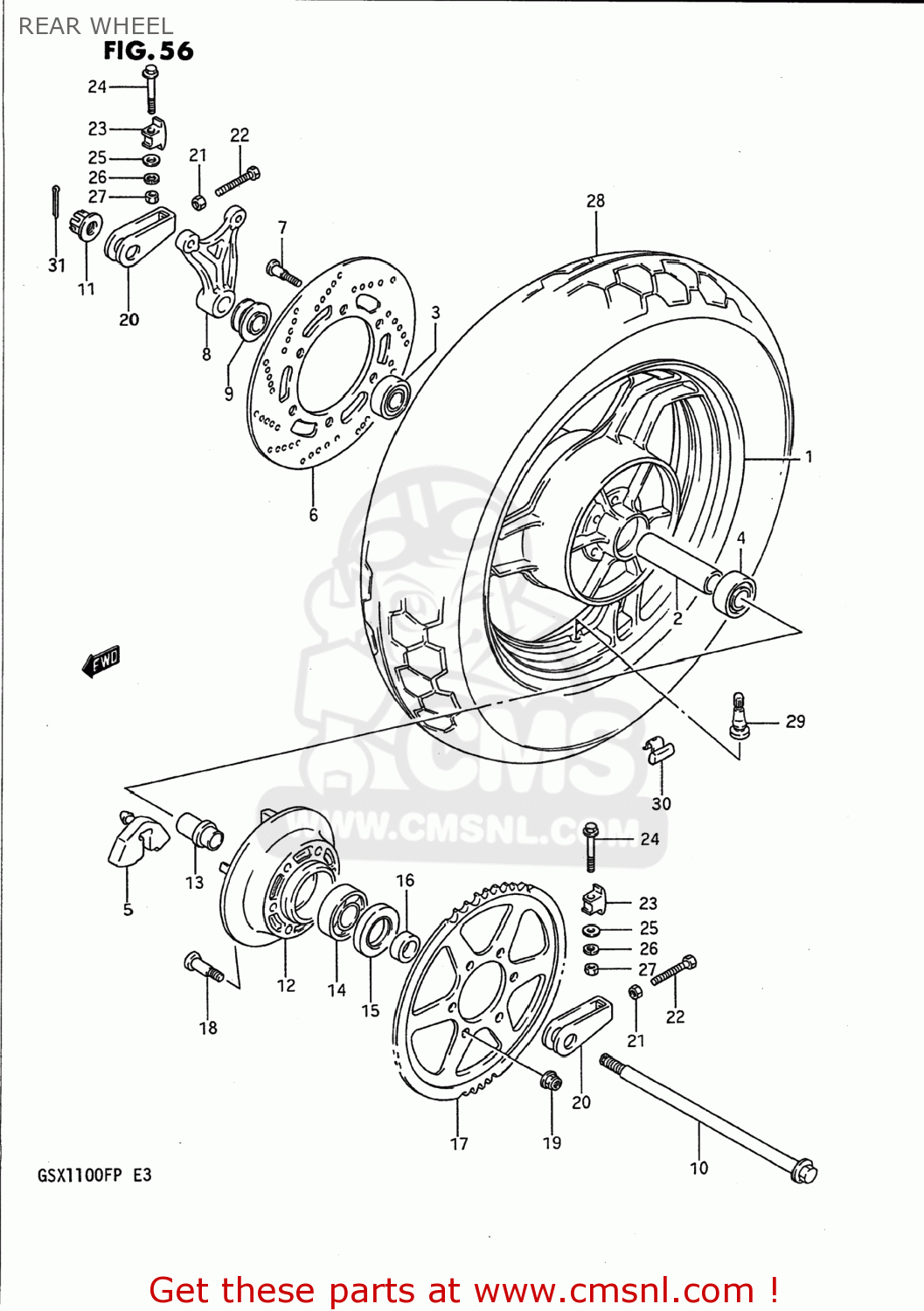

Rear wheel diagram GSX1100F 1992 (N) USA (E03)
REAR WHEEL GSX1100F 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411148B00291
ref: 1
WHEEL,RR(MT,3.50X16)
€ 766.50
2
6473148B00
ref: 2
SPACER,REAR WHEEL HUB
€ 10.50
3-1
0812362047
ref: 3-1
BEARING
€ 17.00
3-2
0926220114
ref: 3-2
BEARING(20X47X14)
€ 26.50
4
0926220042
ref: 4
BEARING(20X47X14)
€ 21.00
5
6465131001
ref: 5
ABSORBER,RR HUB SHOCK
€ 9.50
6
6921148B10
ref: 6
DISC,RR BRAKE
€ 178.00
7-1
0910608062
ref: 7-1
09106-08148
BOLT
€ 6.00
7-2
0910608082
ref: 7-2
09106-08148
BOLT 8X33
€ 6.00
8
6972147011
ref: 8
BRACKET,RR,CALIPER
€ 29.00
9
6474048B00
ref: 9
SPACER,RR AXLE,R
€ 43.00
10
6471148B11
ref: 10
AXLE,RR
€ 84.00
11
0915918012
ref: 11
NUT
€ 0.00
12
6461131003
ref: 12
DRUM,RR SPROCKET MOUNTING
€ 140.00
13
6473348B00
ref: 13
RETAINER,RR HUB BEARING
€ 25.50
14
0926225073
ref: 14
BEARING(25X62X17)
€ 21.50
15
0928535001
ref: 15
SEAL,OIL(35X62X8)
€ 9.00
16
6475148B10
ref: 16
SPACER,REAR AXLE,LEFT
€ 12.50
17
6451148B11
ref: 17
SPROCKET,RR(NT:52)
€ 79.50
18
0911910027
ref: 18
09119-10059
BOLT
€ 3.50
19
0831931107
ref: 19
NUT
€ 3.00
20
6141031001
ref: 20
ADJUSTER,CHAIN
€ 50.00
21-1
0831012088
ref: 21-1
08310-00087
NUT
€ 2.00
21-2
0831011088
ref: 21-2
08310-00087
NUT
€ 2.00
22
0910408006
ref: 22
09104-08034
BOLT
€ 3.00
23
6143331000
ref: 23
61433-3100V
SUPPORTER,CHAIN ADJUST
€ 22.50
24
0151708558
ref: 24
01550-08557
BOLT 8X55
€ 3.00
25
0832211088
ref: 25
08322-01087
WASHER
€ 2.00
26
0832131087
ref: 26
08321-01087
WASHER,LOCK
€ 2.00
27-1
0831012088
ref: 27-1
08310-00087
NUT
€ 2.00
27-2
0831011088
ref: 27-2
08310-00087
NUT
€ 2.00
28-1
6510048BA0
ref: 28-1
TIRE
€ 248.50
28-1
6510048BA0
ref: 28-1
TIRE
€ 248.50
28-2
6510048BC0
ref: 28-2
TIRE
€ 248.50
28-2
6510048BC0
ref: 28-2
TIRE
€ 248.50
28-2
6510048BC0
ref: 28-2
TIRE
€ 248.50
28-3
6511048BC0
ref: 28-3
65100-48BC0
TIRE 150/80VB16 V250,M
€ 248.50
28-3
6511048BC0
ref: 28-3
65100-48BC0
TIRE 150/80VB16 V250,M
€ 248.50
29-1
4313075150
ref: 29-1
43130-78030
VALVE,TIRE
€ 14.50
29-2
4313024A00
ref: 29-2
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
30-1
5541100A00
ref: 30-1
BALANCER,WHEEL (10G)
€ 6.50
30-2
5541200A00
ref: 30-2
55412-17G00
BALANCER,WHEEL
€ 7.00
30-3
5541300A00
ref: 30-3
55413-00A01
BALANCER,WHEEL
€ 4.00
31
0411140308
ref: 31
04111-4030A
PIN,COTTER
€ 1.50
