WIRING HARNESS
GSX1100F 1992 (N) USA (E03)

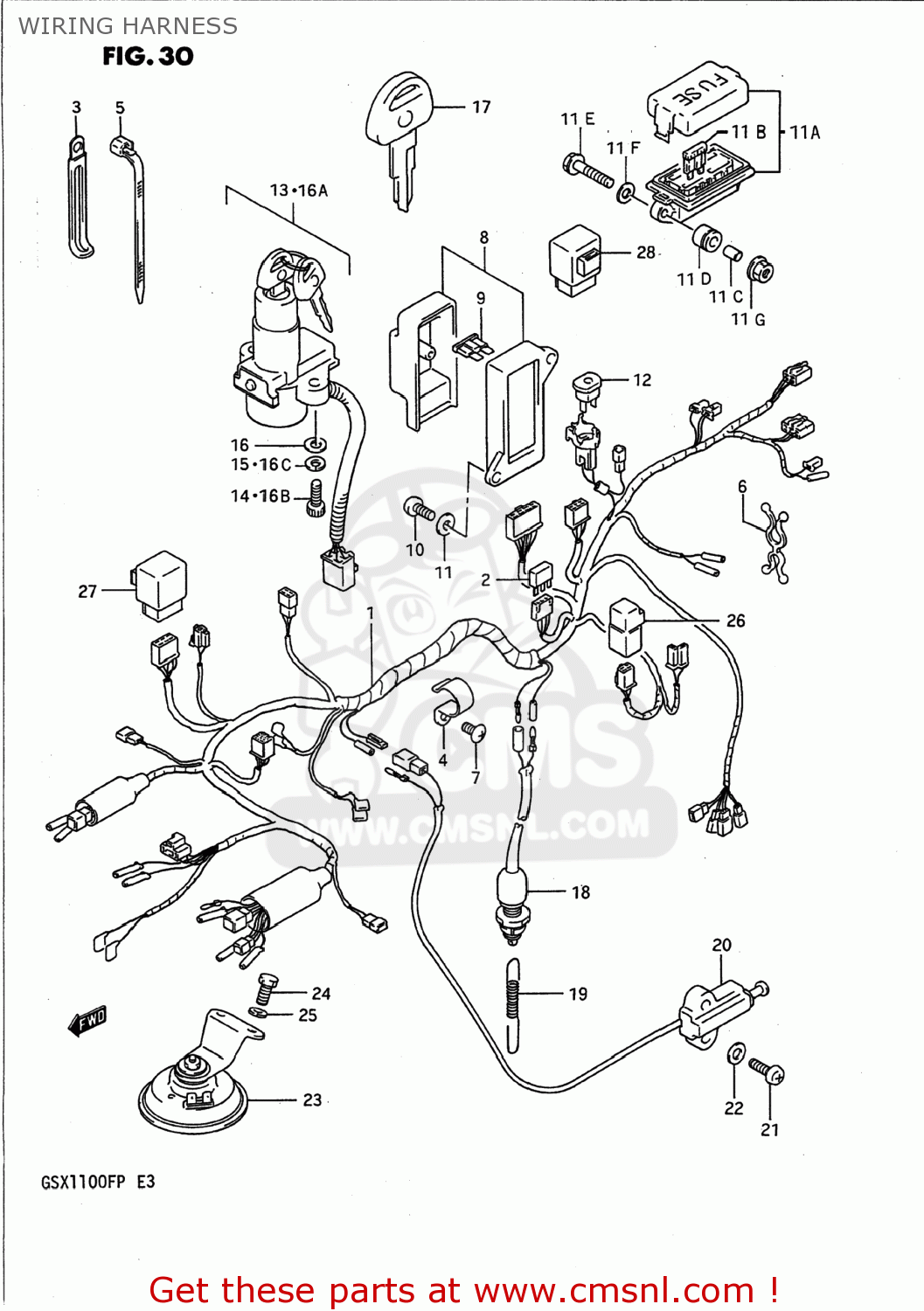

Wiring harness diagram GSX1100F 1992 (N) USA (E03)
WIRING HARNESS GSX1100F 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661048B12
ref: 1-1
HARNESS,WIRING
€ 324.50
1-2
3661048B50
ref: 1-2
36610-48BK0
HARNESS,WIRING
€ 328.00
1-3
3661048B51
ref: 1-3
36610-48BK0
HARNESS,WIRING
€ 328.00
1-4
3661048B21
ref: 1-4
HARNESS,WIRING
€ 148.00
1-5
3661048B40
ref: 1-5
36610-48BK0
HARNESS,WIRING
€ 328.00
1-6
3661048B41
ref: 1-6
36610-48BK0
HARNESS,WIRING
€ 328.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
3
0940406415
ref: 3
09404-06433
CLAMP
€ 3.00
4
0940320301
ref: 4
CLAMP
€ 2.00
5-1
0940714403
ref: 5-1
CLAMP(L:125)
€ 2.50
5-2
0940718402
ref: 5-2
CLAMP(L:165)
€ 2.50
6
0940800075
ref: 6
CLAMP
€ 0.00
7
0314106106
ref: 7
SCREW
€ 1.50
8
3674005A01
ref: 8
36740-27A00
BOX ASSEMBLY,FUSE
€ 77.50
9
0948110101
ref: 9
FUSE(10A)
€ 2.50
10
0211206126
ref: 10
02112-0612A
SCREW
€ 1.50
11
0832221066
ref: 11
08322-0106B
WASHER, LOWER
€ 2.00
11A
3674020C01
ref: 11A
BOX ASSY,FUSE
€ 48.00
11B
0948110101
ref: 11B
FUSE(10A)
€ 2.50
11C
0918006158
ref: 11C
09180-06253
SPACER
€ 4.50
11D
0932008050
ref: 11D
CUSHION 8X18X17.5
€ 0.00
11E
0151706356
ref: 11E
01550-0635A
BOLT
€ 2.50
11F
0916006056
ref: 11F
WASHER(6.5X18X1)
€ 2.00
11G
0915906024
ref: 11G
NUT
€ 2.00
12
3675005A00
ref: 12
BREAKER ASSY,CIRCUT
€ 36.50
13
3710048B00
ref: 13
37100-48B10
LOCK ASSEMBLY,STEERING
€ 146.50
14
0711006165
ref: 14
07130-0616B
BOLT
€ 3.00
15
0832121067
ref: 15
08321-01067
WASHER,LOCK
€ 2.50
16
0832221067
ref: 16
08322-01067
WASHER
€ 2.00
16A
3710048B10
ref: 16A
LOCK ASSY,STEERING
€ 146.50
16B
0711006165
ref: 16B
07130-0616B
BOLT
€ 3.00
16C
0832121067
ref: 16C
08321-01067
WASHER,LOCK
€ 2.50
17
3714647010
ref: 17
KEY,BLANK
€ 15.00
18
3774004A10
ref: 18
SWITCH ASSY,STOP LAMP
€ 22.00
19
0944306073
ref: 19
SPRING
€ 3.00
20-1
3784048B20
ref: 20-1
37840-12X50
SWITCH ASSEMBLY,SIDE STAND
€ 76.00
20-2
3784048B21
ref: 20-2
37840-12X50
SWITCH ASSEMBLY,SIDE STAND
€ 76.00
21-1
0211206205
ref: 21-1
02112-0620A
SCREW
€ 2.00
21-2
0211216205
ref: 21-2
02112-1620B
SCREW
€ 2.50
22
0832221064
ref: 22
08322-0106B
WASHER
€ 2.00
23
3850048B00
ref: 23
HORN ASSEMBLY
€ 71.50
24-1
0110706165
ref: 24-1
01500-0616A
BOLT 6X16
€ 2.00
24-2
0113706165
ref: 24-2
01570-0616A
BOLT
€ 2.50
25
0832121064
ref: 25
08321-0106A
WASHER,LOCK
€ 2.00
26
3874024B10
ref: 26
38740-24X50
RELAY ASSEMBLY
€ 37.50
27
3875048B00
ref: 27
RELAY ASSY,MOTOR CONTROL
€ 90.00
28
3887048B00
ref: 28
CONTROLLER ASSY,FAN MOTOR
€ 145.50
