COWLING (MODEL L)

GSX1100F 1992 (N) USA (E03)

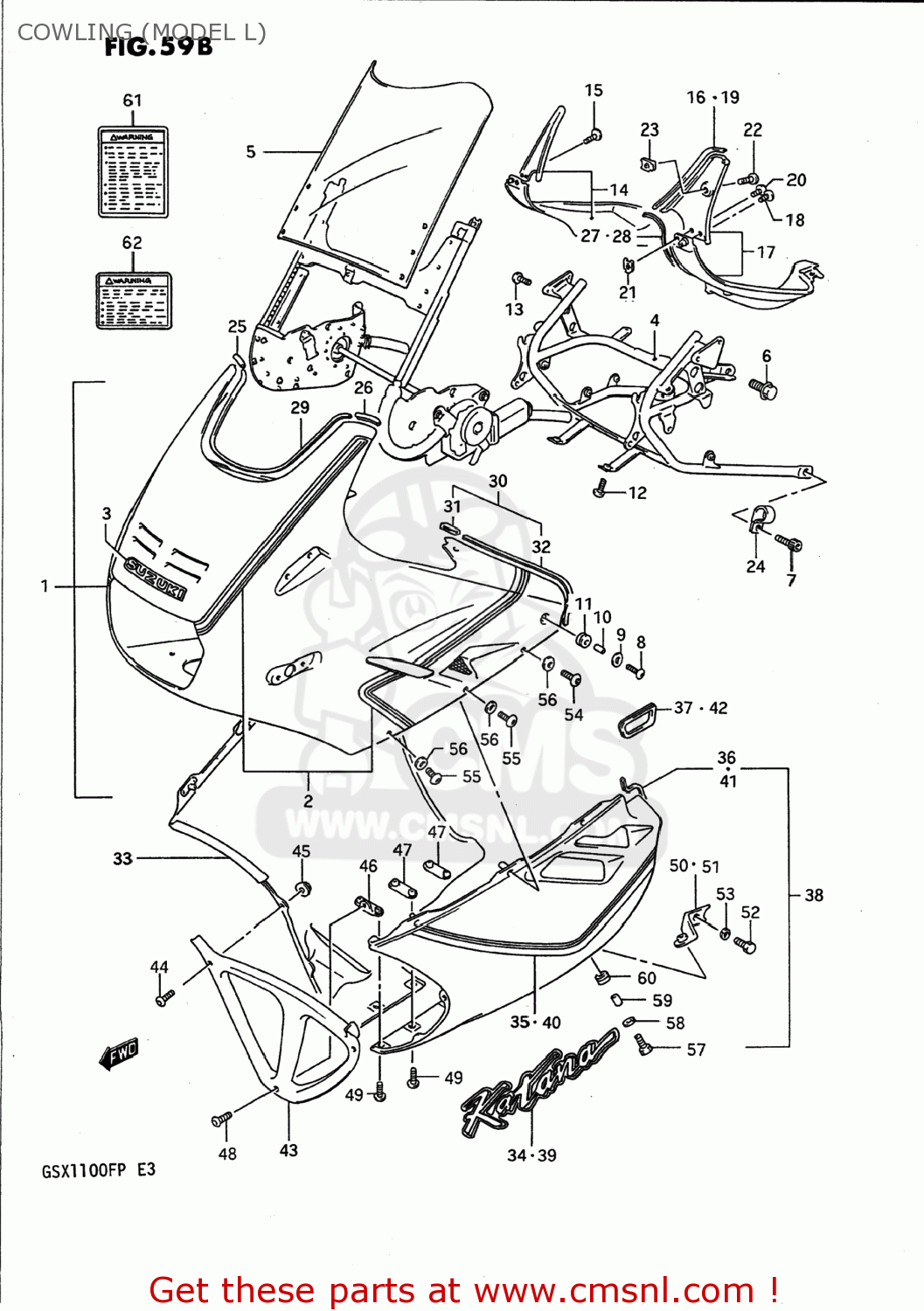

Cowling (model l) diagram GSX1100F 1992 (N) USA (E03)

COWLING (MODEL L) GSX1100F 1992 (N) USA (E03)
COWLING (MODEL L) GSX1100F 1992 (N) USA (E03)
COWLING (MODEL L) GSX1100F 1992 (N) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
9440048C4133J
ref: 1
BODY ASSEMBLY,COWLING
€ 1,320.50
2-1
6827048B103WN
ref: 2-1
TAPE SET,COWLING,UPPER
€ 27.50
2-2
6828048B103WN
ref: 2-2
TAPE SET,COWLING,UPPER
€ 27.50
3
6816604700764
ref: 3
EMBLEM (SUZUKI)
€ 0.00
4-1
9451048B11
ref: 4-1
94510-48B21
BRACE,COWLING
€ 213.50
4-2
9451048B21
ref: 4-2
BRACE,COWLING
€ 213.50
5
9461148B40
ref: 5
WINDSCREEN
9461148B40
€ 309.50
6
0910310195
ref: 6
BOLT(10X12)
0910310195
€ 2.00
7
0711008165
ref: 7
07130-0816A
BOLT
€ 3.00
8
0913906028
ref: 8
SCREW(6X20)
0913906028
€ 3.50
9
0916006056
ref: 9
WASHER(6.5X18X1)
0916006056
€ 2.00
10
0918006152
ref: 10
09180-06262
SPACER
0918006152
€ 3.00
11
0932009016
ref: 11
CUSHION
0932009016
€ 2.50
12
0913906030
ref: 12
SCREW(6X16)
0913906030
€ 3.50
13
0214206127
ref: 13
SCREW 6X12
0214206127
€ 1.50
14
9470048B10291
ref: 14
PANEL ASSY,R
9470048B10291
€ 137.50
15
0214205084
ref: 15
02142-0508A
SCREW
€ 2.00
16
9441948B10
ref: 16
94635-19C00
MOLDING,COWL.
9441948B10
€ 6.00
17
9480048B10291
ref: 17
PANEL ASSY,L
9480048B10291
€ 141.00
18
0214205084
ref: 18
02142-0508A
SCREW
€ 2.00
19
9441948B10
ref: 19
94635-19C00
MOLDING,COWL.
9441948B10
€ 6.00
20
0214205124
ref: 20
02142-0512A
SCREW, FRONT & REAR
€ 1.50
21
0914805020
ref: 21
NUT
0914805020
€ 2.00
22
0324105125
ref: 22
03241-0512A
SCREW
0324105125
€ 1.50
23
0914805020
ref: 23
NUT
0914805020
€ 2.00
24
0940318406
ref: 24
CLAMP
€ 5.50
25
9442648B10
ref: 25
CAP,PANEL & COWLING,R
9442648B10
€ 5.50
26
9442748B10
ref: 26
CAP,PANEL & COWLING,L
9442748B10
€ 4.50
27
9459148B10
ref: 27
MOLDING,COWLING PANEL,R
9459148B10
€ 10.00
28
9459248B10
ref: 28
MOLDING,COWLING PANEL
9459248B10
€ 11.50
29
9441948B00
ref: 29
94635-19C00
MOULDING
9441948B00
€ 6.00
30
9443948B00
ref: 30
MOLDING,COWLING BODY SIDE
9443948B00
€ 15.00
31
9465148B00
ref: 31
COVER,MOLDING END
9465148B00
€ 7.50
32
9447948B00
ref: 32
MOLDING,COWLING BODY SIDE
9447948B00
€ 8.50
32
9447948B00
ref: 32
MOLDING,COWLING BODY SIDE
9447948B00
€ 8.50
32
9447948B00
ref: 32
MOLDING,COWLING BODY SIDE
9447948B00
€ 8.50
33-1
9760048C6033J
ref: 33-1
94470-48B00
COVER ASSEMBLY,COWLING,LOWER
€ 320.00
33-2
9760048C5033J
ref: 33-2
94470-48B10
COVER ASSEMBLY,COWLING,LOWER
€ 241.00
34
6868120C103WN
ref: 34
EMBLEM,COWLING,LOWER
€ 17.50
35
6868548B503WN
ref: 35
TAPE,COWLING,LOWER,RIGHT
€ 17.50
36
9447948B10
ref: 36
94479-48B00
MOLDING,COWLING,LOWER
€ 8.50
37
9447348B10
ref: 37
MOLDING,INLET
€ 3.50
38-1
9770048C6033J
ref: 38-1
94480-48B00
COVER ASSEMBLY,COWLING,LOWER
€ 679.00
38-2
9770048C5033J
ref: 38-2
94480-48B10
COVER ASSEMBLY,COWLING,LOWER
€ 241.00
39
6868120C103WN
ref: 39
EMBLEM,COWLING,LOWER
€ 17.50
40
6869548B503WN
ref: 40
TAPE,COWLING,LOWER,LEFT
€ 18.00
41
9447948B10
ref: 41
94479-48B00
MOLDING,COWLING,LOWER
€ 8.50
42
9447348B10
ref: 42
MOLDING,INLET
€ 3.50
43
9447548B01
ref: 43
94475-48B02
COVER,COWLING,LOWER,FRONT
€ 66.50
44
0913905025
ref: 44
SCREW(5X14)
0913905025
€ 2.00
45
0831626055
ref: 45
08316-2005A
NUT
0831626055
€ 2.00
46
9449006B00
ref: 46
BRACE,COWLING LWR COVER
9449006B00
€ 4.50
47
9449306B00
ref: 47
BRACE,COWLING LWR COVER RR
9449306B00
€ 4.00
48
0913906027
ref: 48
SCREW(6X12)
0913906027
€ 3.00
49
0913906039
ref: 49
SCREW(6X16)
0913906039
€ 2.50
50
9458048B11
ref: 50
BRACE,COWLING LWR,R
9458048B11
€ 6.00
51
9459048B11
ref: 51
BRACE,COWLING LWR,L
€ 8.00
52
0110708127
ref: 52
01500-08127
BOLT 8X12
€ 2.50
53
0832121088
ref: 53
08321-01087
LOCK WASHER
0832121088
€ 2.00
54
0913906028
ref: 54
SCREW(6X20)
0913906028
€ 3.50
55
0913906030
ref: 55
SCREW(6X16)
0913906030
€ 3.50
56
0916107005
ref: 56
09161-07006
WASHER
0916107005
€ 3.00
57
0913906028
ref: 57
SCREW(6X20)
0913906028
€ 3.50
58
0916006056
ref: 58
WASHER(6.5X18X1)
0916006056
€ 2.00
59
0918006121
ref: 59
SPACER(6.4X9.2X12)
0918006121
€ 2.50
60
0932009016
ref: 60
CUSHION
0932009016
€ 2.50
61
6861248B00
ref: 61
68922-14F00
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
62
6831940C00
ref: 62
68319-33E01
LABEL
6831940C00
€ 8.00
62
6831940C00
ref: 62
68319-33E01
LABEL
6831940C00
€ 8.00
62
6831940C00
ref: 62
68319-33E01
LABEL
6831940C00
€ 8.00
