2ND AIR
GSX1300R HAYABUSA 2008 (K8) USA (E03)

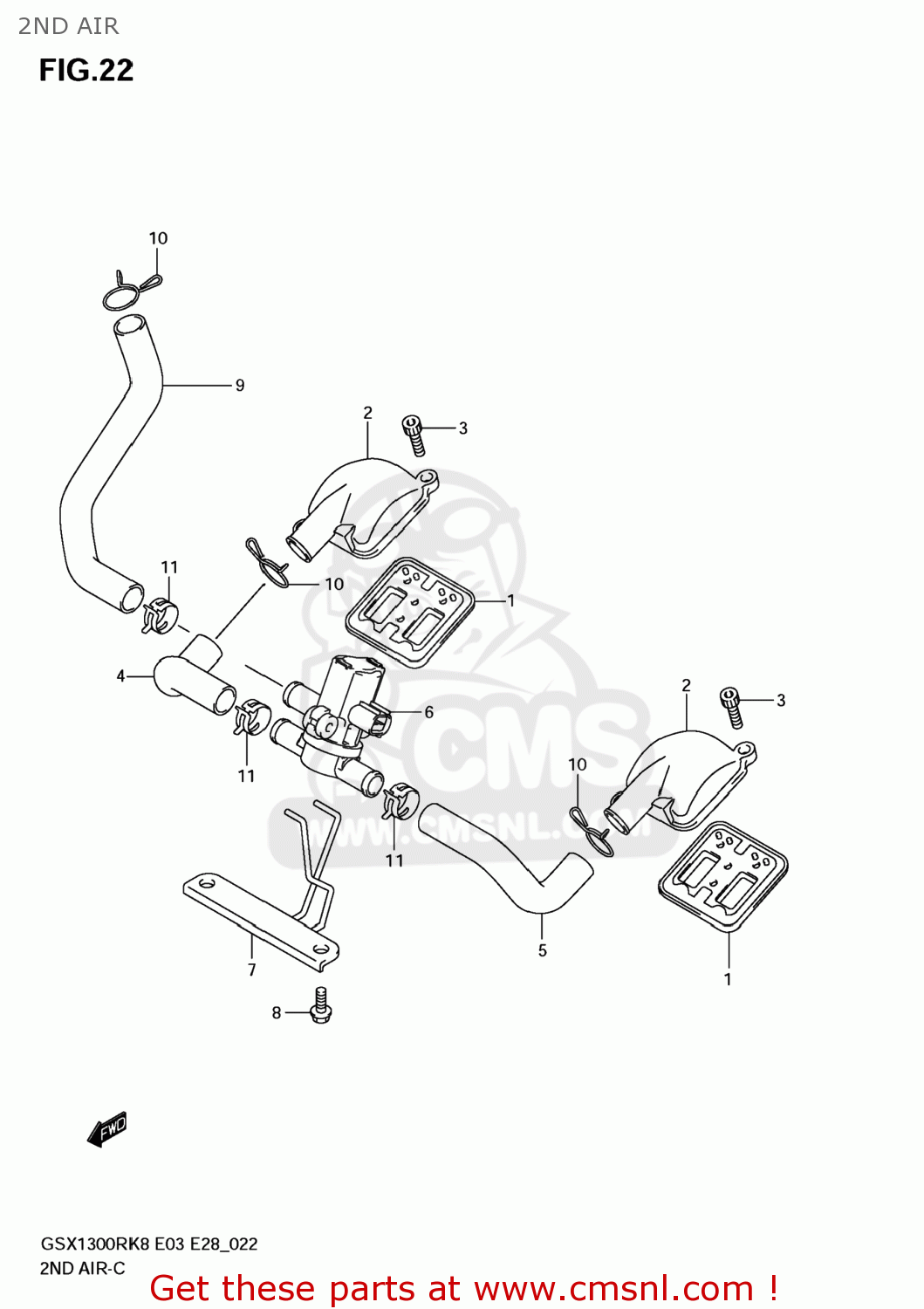

2nd air diagram GSX1300R HAYABUSA 2008 (K8) USA (E03)
2ND AIR GSX1300R HAYABUSA 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1845035F30
ref: 1
VALVE ASSY,2ND AIR REED
€ 68.50
2
1853115H00
ref: 2
COVER,2ND AIR REED VALVE
€ 20.50
3
0910606073
ref: 3
BOLT(6X16)
€ 2.50
4
1846115H00
ref: 4
HOSE,2ND AIR VALVE,R
€ 13.50
5
1847115H00
ref: 5
HOSE,2ND AIR VALVE,L
€ 14.50
6
1851029G30
ref: 6
VALVE ASSY,AIR CUT
€ 68.50
7
1861015H00
ref: 7
BRACKET,2ND AIR VALVE
€ 19.50
8
0910306283
ref: 8
BOLT(6X16)
€ 2.00
9
1871115H00
ref: 9
HOSE,2ND AIR CLEANER
€ 26.50
10
0940117201
ref: 10
CLIP
€ 2.50
11
0940117401
ref: 11
CLIP
€ 2.00
