MAGNETO
GSX1300R HAYABUSA 2008 (K8) USA (E03)

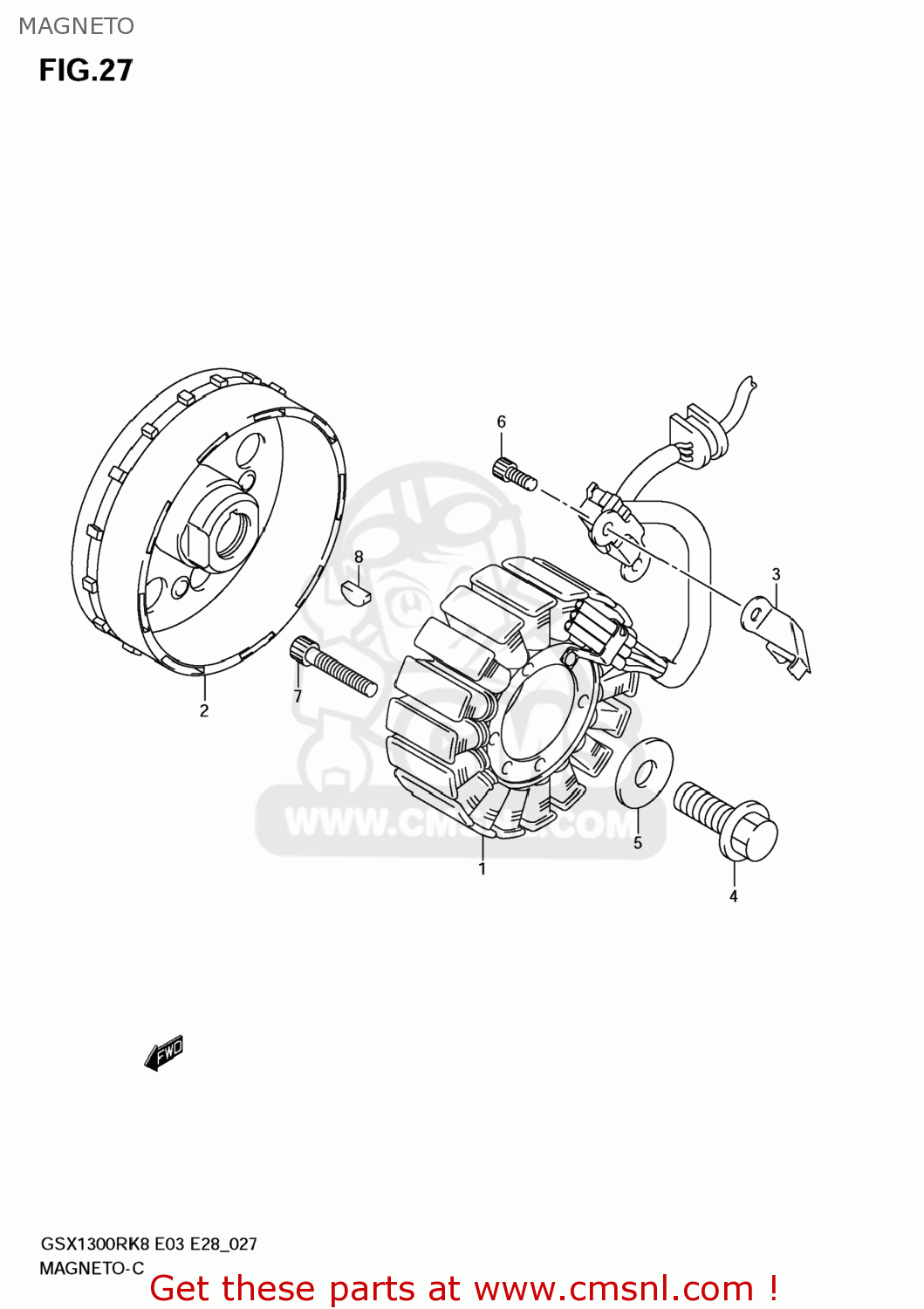

Magneto diagram GSX1300R HAYABUSA 2008 (K8) USA (E03)
MAGNETO GSX1300R HAYABUSA 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210124F30
ref: 1
STARTER ASSY
€ 564.50
2
3210224F20
ref: 2
ROTOR ASSY
€ 599.00
3
3237124F00
ref: 3
CLAMP,MAGNETO LEAD
€ 4.00
4
0910312028
ref: 4
BOLT(12X30)
€ 5.00
5
0916012036
ref: 5
WASHER(12X30X3)
€ 3.00
6
071300512B
ref: 6
BOLT
€ 2.50
7
071300635B
ref: 7
BOLT
€ 3.50
8
0942004008
ref: 8
KEY
€ 3.50
