OIL COOLER
GSX1300R HAYABUSA 2008 (K8) USA (E03)

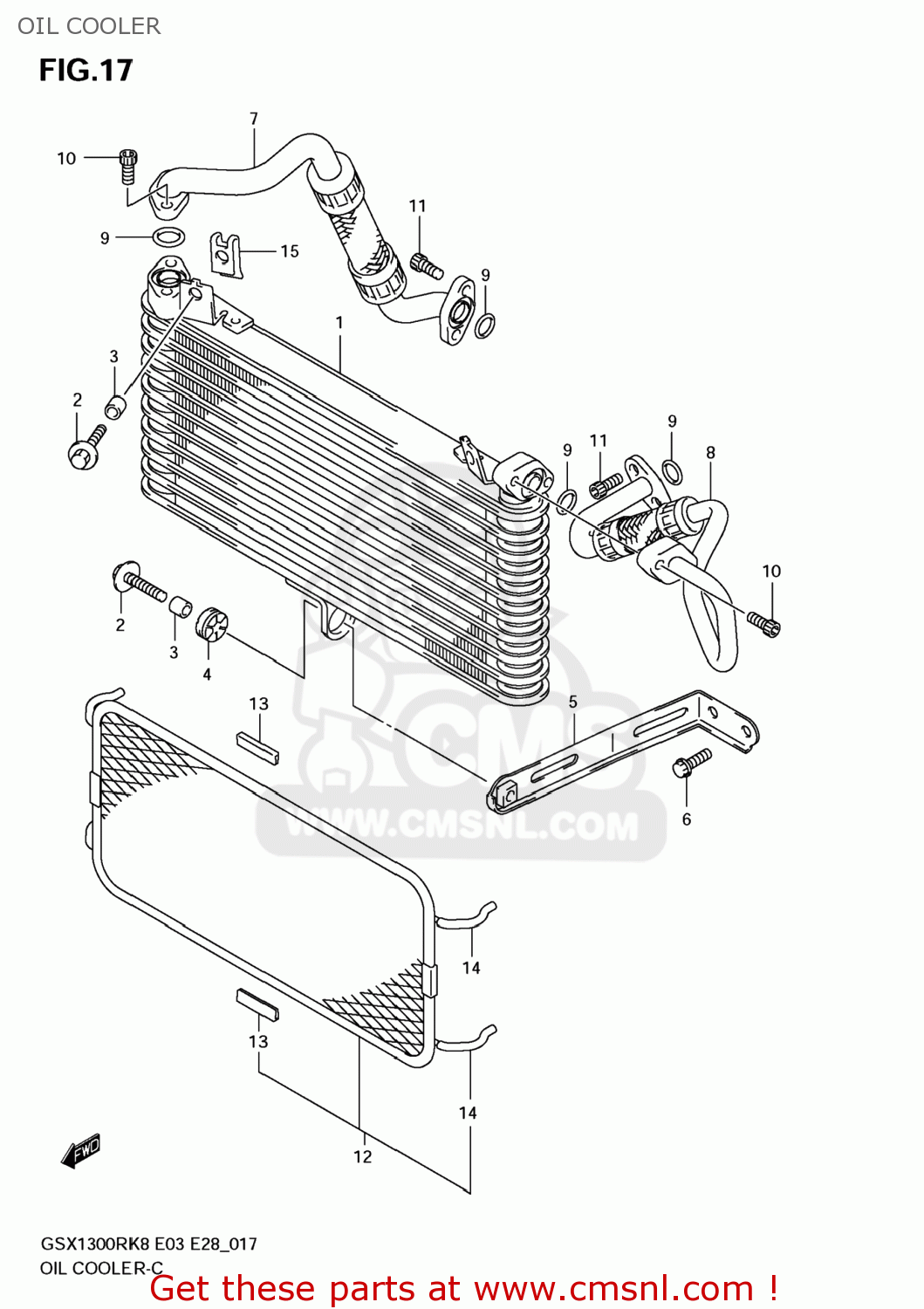

Oil cooler diagram GSX1300R HAYABUSA 2008 (K8) USA (E03)
OIL COOLER GSX1300R HAYABUSA 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1660015H10
ref: 1
COOLER ASSY,OIL
€ 1,221.50
2
0911806097
ref: 2
BOLT(6X25)
€ 2.50
3
0918006290
ref: 3
SPACER(6.5X10X12)
€ 2.50
4
0932010051
ref: 4
CUSHION
€ 3.50
5
1664024F00
ref: 5
BRACKET,OIL COOLER
€ 8.00
6
015500612A
ref: 6
BOLT
€ 2.50
7
1646015H00
ref: 7
HOSE,OIL COOLER,R
€ 129.00
8
1647015H00
ref: 8
HOSE,OIL COOLER,L
€ 129.00
9
0928015015
ref: 9
O RING(D:2.4,ID:16)
€ 5.00
10
0910606073
ref: 10
BOLT(6X16)
€ 2.50
11
0910606073
ref: 11
BOLT(6X16)
€ 2.50
12
1665015H00
ref: 12
GUARD,OIL COOLER
€ 46.00
13
1776509F00
ref: 13
PROTECTOR,CTR
€ 2.50
14
0935230503600
ref: 14
HOSE(3X5X600)
€ 8.00
15
1780214F00
ref: 15
NUT,RADIATOR FAN
€ 3.00
