GSX1300R HAYABUSA 2008 (K8) USA (E03)
Electrical diagram GSX1300R HAYABUSA 2008 (K8) USA (E03)

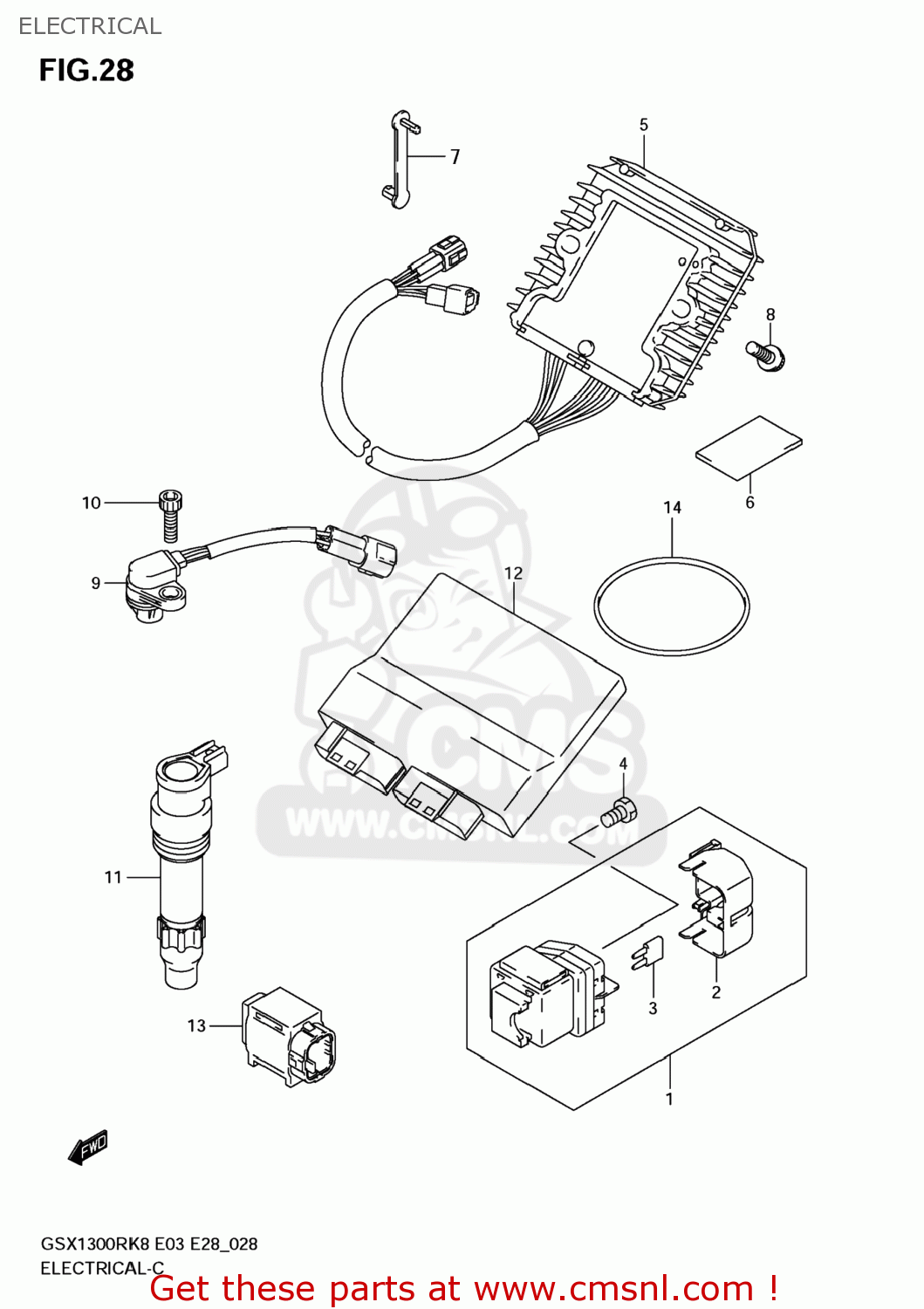

ELECTRICAL GSX1300R HAYABUSA 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180044G00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 77.50
2
3186138G00
ref: 2
COVER
€ 3.50
3
0948130501
ref: 3
FUSE(30A)
€ 0.50
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5
3280015H10
ref: 5
RECTIFIER ASSY
€ 333.50
6
3365236000
ref: 6
CUSHION(30X50X3)
€ 5.00
7
3665148E00
ref: 7
CLAMP(L:63)
€ 2.50
8
021620625A
ref: 8
SCREW
€ 1.50
9
3322001H00
ref: 9
SENSOR ASSY,CAM POSITION
€ 108.00
10
071300616A
ref: 10
07130-0616B
BOLT
€ 3.00
11
3341024F10
ref: 11
COIL ASSY,IGNITION
€ 139.00
12-1
3292015H10
ref: 12-1
CONTROL UNIT,FI
€ 933.50
12-2
3292015H20
ref: 12-2
CONTROL UNIT,FI
€ 1,258.00
13
3396006G10
ref: 13
SENSOR ASSY,FUEL CUT
€ 75.00
14
0928076005
ref: 14
O RING(D:3.5,ID:76)
€ 3.50
