BATTERY

GSX1300R HAYABUSA 2008 (K8) USA (E03)

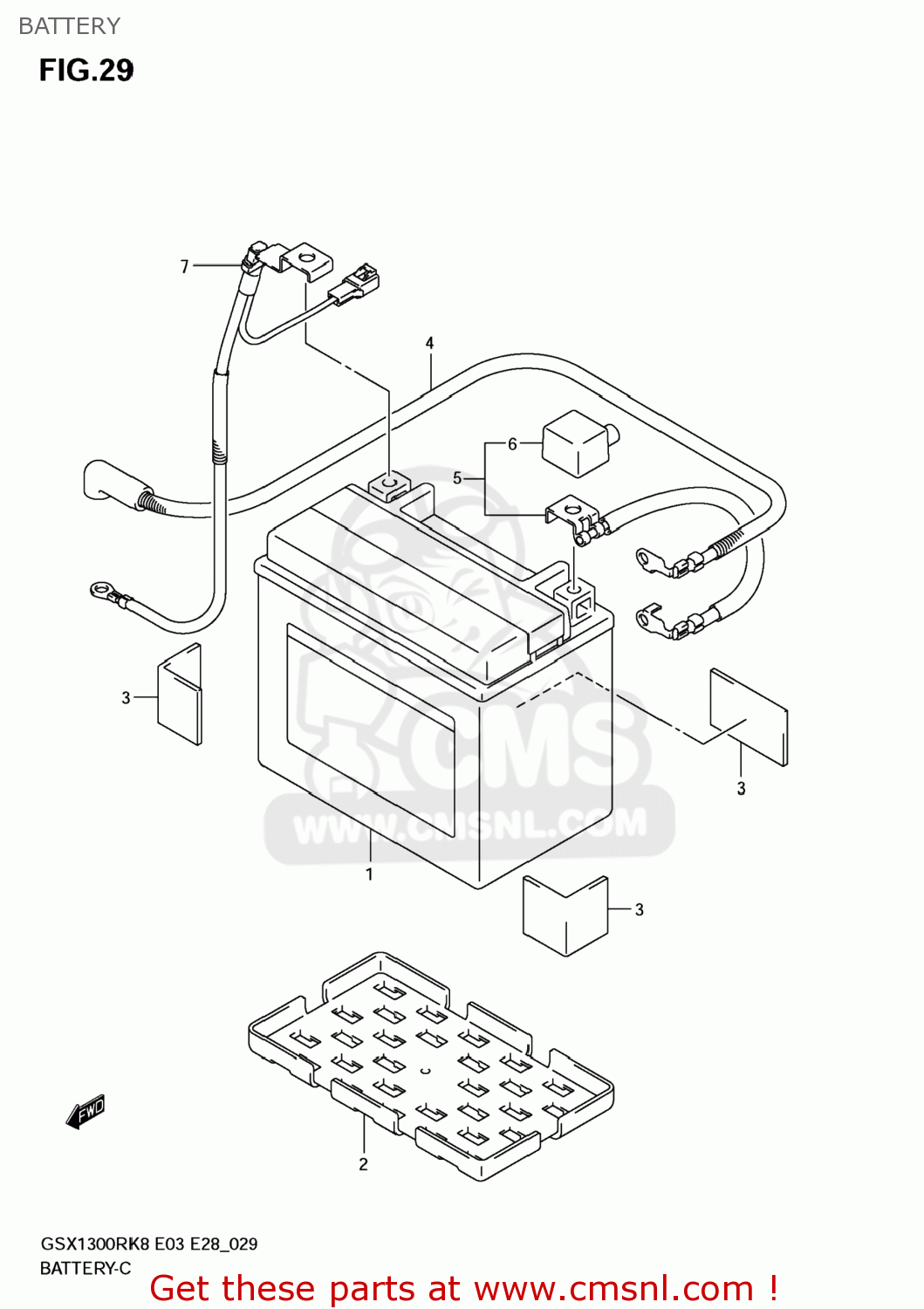

Battery diagram GSX1300R HAYABUSA 2008 (K8) USA (E03)

BATTERY GSX1300R HAYABUSA 2008 (K8) USA (E03)

BATTERY GSX1300R HAYABUSA 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361017E10
ref: 1
33610-48E20

BATTERY ASSY(YTX12-BS,12V10AH)

€ 97.50

2

3365216G00
ref: 2

PROTECTOR,BATTERY

€ 5.50

3

3365236000
ref: 3

CUSHION(30X50X3)

€ 5.00

4

3381015H00
ref: 4

WIRE,STARTER MOTOR LEAD

€ 24.00

5

3382015H00
ref: 5

WIRE,BATTERY PLUS LEAD

€ 21.50

6

3362416G00
ref: 6

CAP,BATTERY PLUS

€ 4.50

7

3386015H00
ref: 7

WIRE,BATTERY MINUS LEAD

€ 19.50
