SPEEDOMETER
GSX1300R HAYABUSA 2008 (K8) USA (E03)

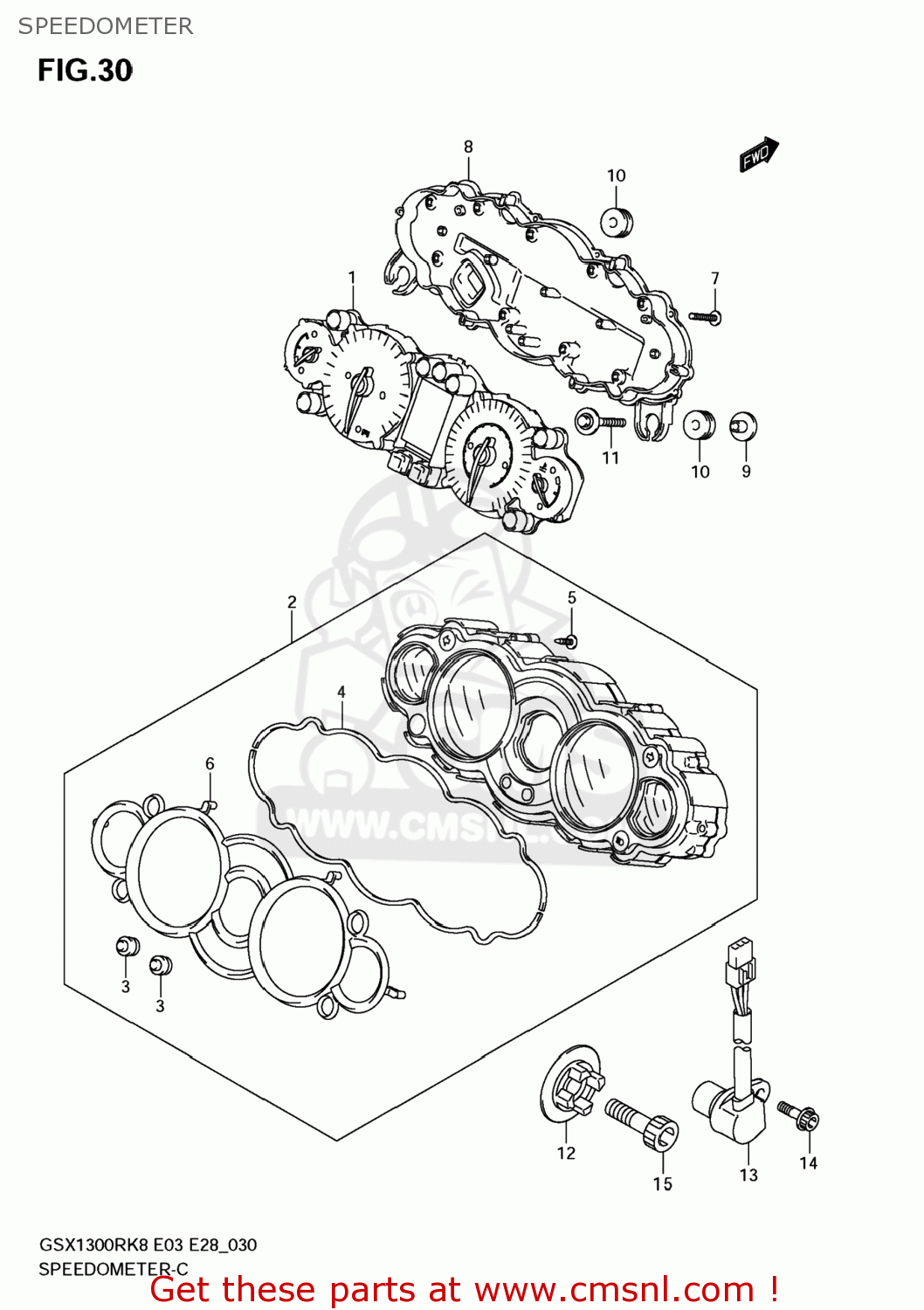

Speedometer diagram GSX1300R HAYABUSA 2008 (K8) USA (E03)
SPEEDOMETER GSX1300R HAYABUSA 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3412015H10
ref: 1-1
COMBINATION METER
€ 1,395.00
1-2
3412015H00
ref: 1-2
COMBINATION METER
€ 1,395.00
2
3415015H00
ref: 2
UPR CASE
€ 427.00
3
3412439G00
ref: 3
RUBBER,SWITCH
€ 7.00
4
3415315H00
ref: 4
PACKING (NAS)
€ 32.00
5
3418331F10
ref: 5
SCREW(2.3X8)
€ 3.00
6
3419315H00
ref: 6
RING
€ 186.00
7
0913203008
ref: 7
SCREW(3X16)
€ 1.50
8
3411115H00
ref: 8
LOWER CASE
€ 185.00
9
3418724F00
ref: 9
WASHER
€ 4.50
10
3495513E00
ref: 10
CUSHION
€ 3.00
11
0911606186
ref: 11
BOLT(6X25)
€ 2.50
12
3498115H00
ref: 12
34981-47H01
ROTOR,SPEED
€ 17.50
13
3499035F00
ref: 13
SENSOR,SPEED
€ 112.50
14
071200512B
ref: 14
BOLT
€ 2.00
15
071300825B
ref: 15
BOLT
€ 3.50
