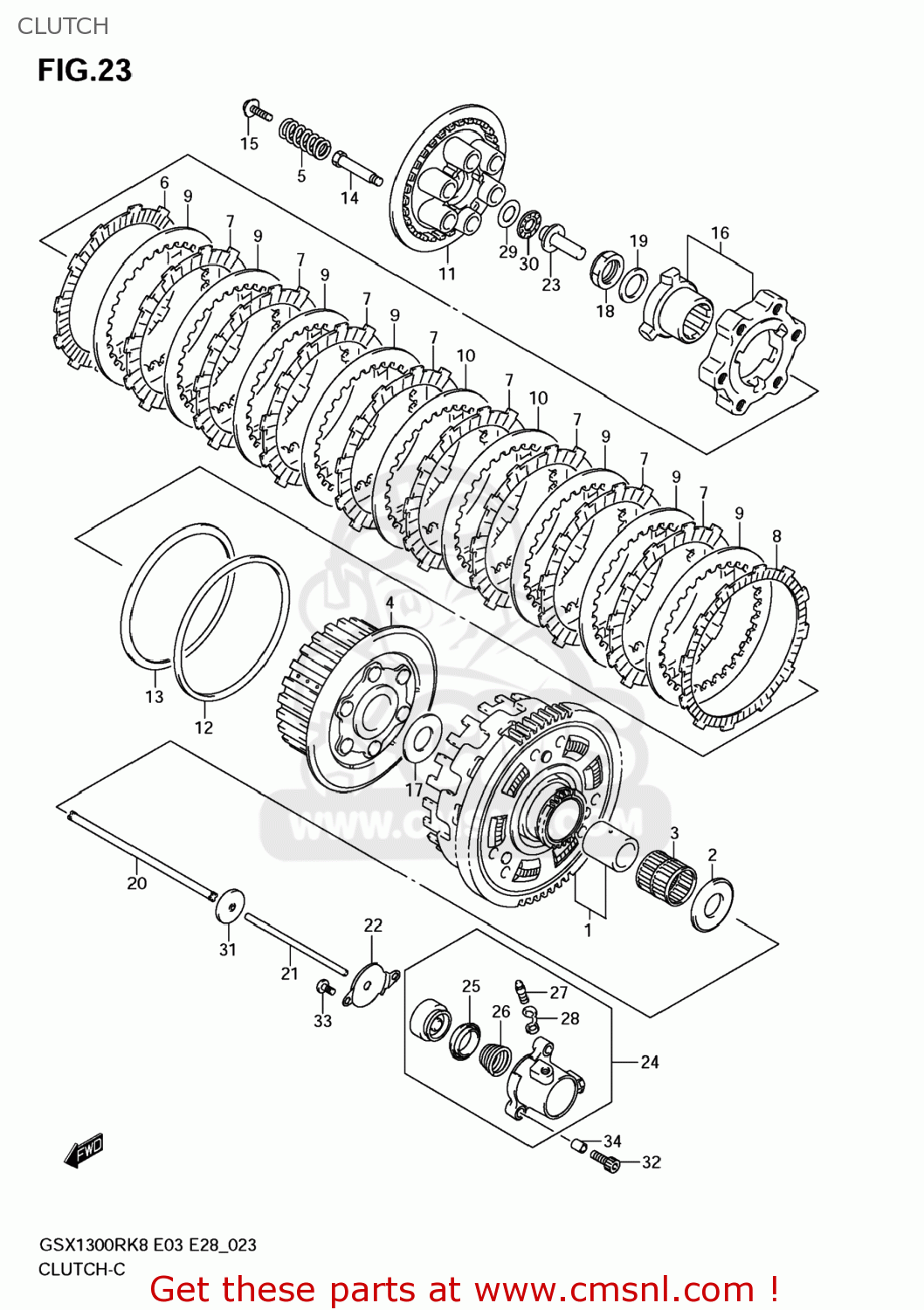

CLUTCH

ref

part #

description

quantity

1

2120024810
ref: 1

GEAR ASSY,PRI DRIVEN

€ 397.00

2

0916025073
ref: 2

WASHER(25X54X2.4)

€ 8.50

3

0926335013
ref: 3

BEARING(35X40X39.8)

€ 29.00

4

2141024F00
ref: 4

HUB,CLUTCH SLEEVE

€ 122.00

5

2141324F30
ref: 5

SPRING,CLUTCH

€ 6.00

6

2144124F10
ref: 6

PLATE,CLUTCH DRIVE NO.2 (NAS)

€ 18.50

7

2144124F30
ref: 7

PLATE,CLUTCH DRIVE NO.1 (NAS)

€ 18.50

8

2144224F00
ref: 8

PLATE,CLUTCH DRIVE NO.3 (NAS)

€ 16.00

9

2145124F00
ref: 9

PLATE,CLUTCH DRIVEN NO.1(T:2.0 (NAS)

€ 7.50

10

2145124F10
ref: 10

PLATE,CLUTCH DRIVEN NO.2(T:2.3 (NAS)

€ 7.50

11

2146224F00
ref: 11

DISC,CLUTCH PRESSURE

€ 45.50

12

2147124F00
ref: 12

SEAT,WAVE WASHER

€ 12.00

13

2147206G00
ref: 13

WASHER,CLUTCH PLATE WAVE

€ 12.50

14

2148124F30
ref: 14
21481-24F31

BOLT,CLUTCH SP

€ 9.00

15

2148224F30
ref: 15

BOLT,CLUTCH SPRING

€ 4.00

16

2161002F12
ref: 16

CAM SET,CLUTCH

€ 174.00

17

0916025056
ref: 17

WASHER(25X50X2.5)

€ 9.50

18

0915924010
ref: 18

NUT

€ 11.00

19

0916424006
ref: 19

WASHER

€ 4.00

20

2311024F00
ref: 20

ROD,CLUTCH

€ 17.50

21

2311126D00
ref: 21

ROD,CLUTCH PUSH,L

€ 14.00

22

2311746E00
ref: 22

COVER,CLUTCH RELEASE CYLINDER

€ 6.50

23

2312131E00
ref: 23

PIECE,CLUTCH PUSH

€ 18.50

24

2316015H00
ref: 24

CYLINDER,CLUTCH RELEASE

€ 122.50

25

2316310F00
ref: 25

CUP

€ 5.00

26

2316410F00
ref: 26

SPRING

€ 3.00

27

5912101A00
ref: 27

BLEEDER

€ 8.50

28

5912201A00
ref: 28

CAP,BLEEDER

€ 4.50

29

0916015045
ref: 29

WASHER(15.5X28X1)

€ 4.00

30

0926315003
ref: 30

BEARING(15X28X2)

€ 7.00

31

0928506015
ref: 31

SEAL,OIL(6X34X5.5)

€ 8.50

32

071300625A
ref: 32

BOLT

€ 2.50

33

021120610A
ref: 33

SCREW

€ 1.50

34

0421109129
ref: 34

PIN

€ 2.00

all assemblies
