FRAME
GSX1300R HAYABUSA 2008 (K8) USA (E03)

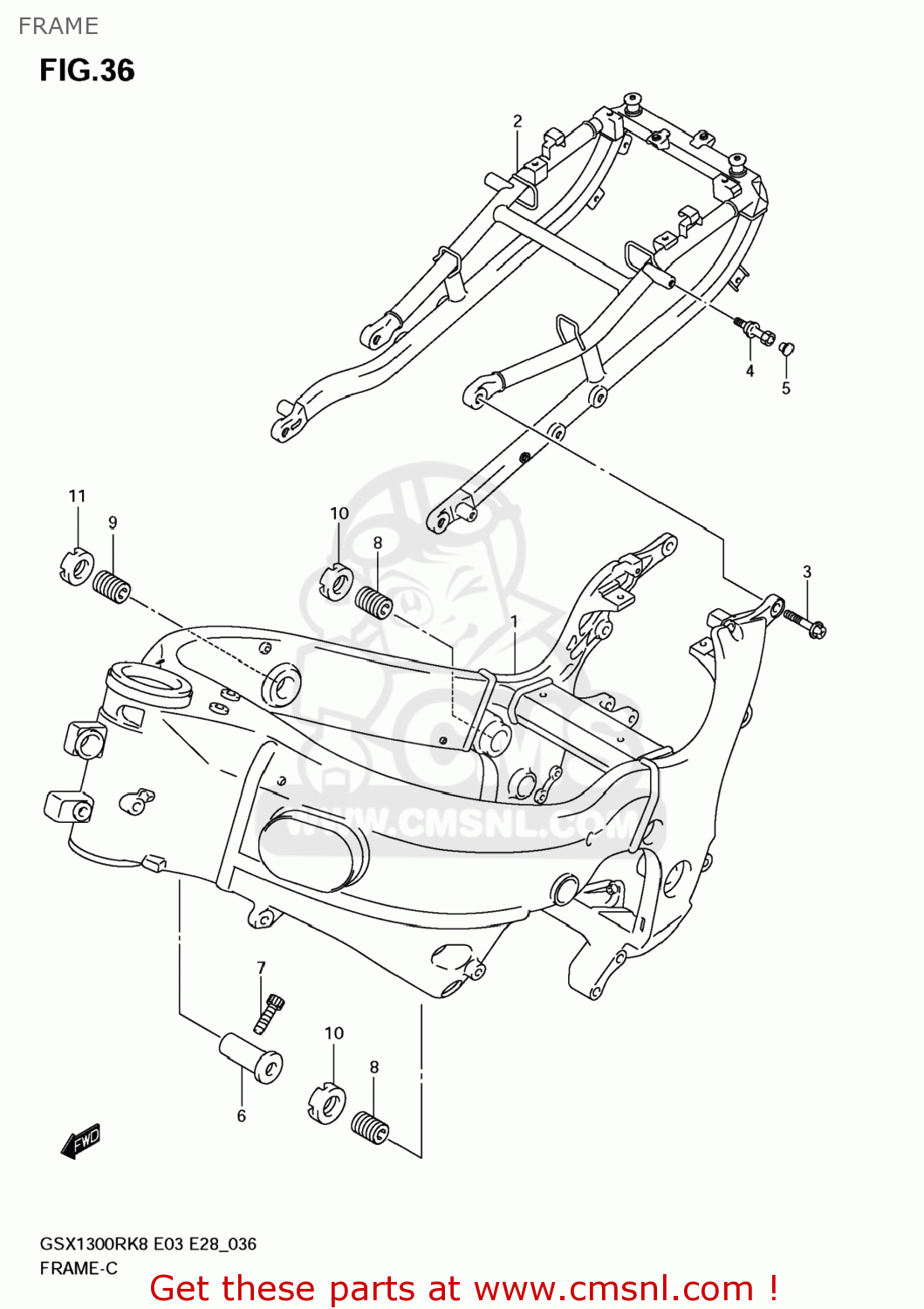

Frame diagram GSX1300R HAYABUSA 2008 (K8) USA (E03)
FRAME GSX1300R HAYABUSA 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110015H02YAP
ref: 1
FRAME
€ 3,166.00
2
4120015H00
ref: 2
41200-15H10
RAIL,SEAT
€ 631.00
3
0910310296
ref: 3
BOLT(10X30)
€ 6.00
4
4631524F01
ref: 4
HOOK,SEAT RAIL
€ 21.50
5
0925005009
ref: 5
CAP(OD:10)
€ 2.50
6
4191133E10
ref: 6
SPACER,ENGINE MTG
€ 16.50
7
0910608105
ref: 7
BOLT(8X30)
€ 3.00
8
4192115H00
ref: 8
BOLT,CRANK CASE ADJUST
€ 24.00
9
4192115H10
ref: 9
BOLT,CRANK CAS
€ 20.50
10
4192219F11
ref: 10
NUT,CRANK CASE ADJUST
€ 17.00
11
4192233E10
ref: 11
NUT,CRANKCASE ADJUST
€ 14.50
