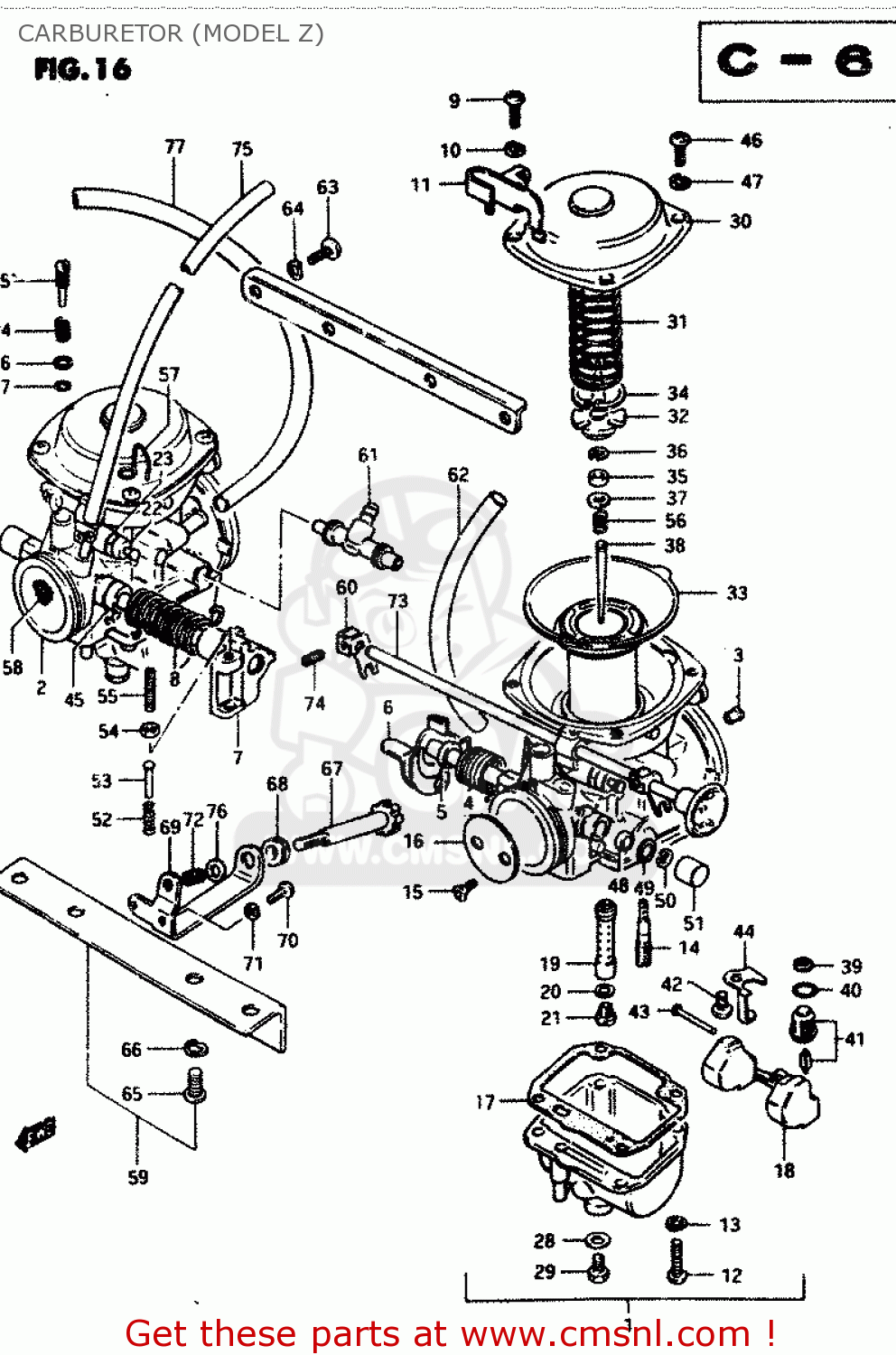

CARBURETOR (MODEL Z)

GSX250ES 1982 (Z) GENERAL EXPORT (E01)

Carburetor (model z) diagram GSX250ES 1982 (Z) GENERAL EXPORT (E01)

CARBURETOR (MODEL Z) GSX250ES 1982 (Z) GENERAL EXPORT (E01)

CARBURETOR (MODEL Z) GSX250ES 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

1320111450
ref: 1-1

1320111450

1-2

1320111460
ref: 1-2
E4

1320111460

1-3

1320111970
ref: 1-3
E18

1320111970

1-4

1320111470
ref: 1-4
E22

1320111470

1-5

1320111480
ref: 1-5
E24

1320111480

2-1

1320211450
ref: 2-1

1320211450

2-2

1320211460
ref: 2-2
E4

1320211460

2-3

1320211970
ref: 2-3
E18

1320211970

2-4

1320211470
ref: 2-4
E22

1320211470

2-5

1320211480
ref: 2-5
E24

1320211480

3-1

0949126001
ref: 3-1

0949126001

3-2

0949127008
ref: 3-2
E22

0949127008

4

1357311400
ref: 4
LH

1357311400

5

1357445110
ref: 5
LH

1357445110

6

1355011400
ref: 6
LH

1355011400

7

1355011410
ref: 7
RH

1355011410

8

1357311410
ref: 8
RH

1357311410

9

0211205128
ref: 9
LH

0211205128

10

0832121058
ref: 10
LH

0832121058

11

1362711400
ref: 11

1362711400

12

0211204208
ref: 12

0211204208

13

0832121048
ref: 13

0832121048

14

0949217008
ref: 14

0949217008

15

1360444080
ref: 15

1360444080

16-1

1355111400
ref: 16-1

1355111400

16-2

1355111470
ref: 16-2
E22

1355111470

17

1325111400
ref: 17

1325111400

18

1325044080
ref: 18

1325044080

19-1

0949400306
ref: 19-1

0949400306

19-2

0949400308
ref: 19-2
E22

0949400308

20

1333244080
ref: 20

1333244080

21-1

0949123017
ref: 21-1

0949123017

21-2

0949123011
ref: 21-2
E4

0949123011

21-3

0949122015
ref: 21-3
E22

0949122015

21-4

0949123017
ref: 21-4
E22

0949123017

22

1368209210
ref: 22

1368209210

23

1329515010
ref: 23

1329515010

24

1326847070
ref: 24

1326847070

25

1327947080
ref: 25

1327947080

26

1327744080
ref: 26

1327744080

27

1327844080
ref: 27

1327844080

28

1324644080
ref: 28

1324644080

29

1324744080
ref: 29

1324744080

30

1350211400
ref: 30

1350211400

31

1350344080
ref: 31

1350344080

32

1338944030
ref: 32

1338944030

33-1

1350011410
ref: 33-1

1350011410

33-2

1350011970
ref: 33-2
E18

1350011970

34

1358144030
ref: 34

1358144030

35

1338747010
ref: 35

1338747010

36

1339431210
ref: 36

1339431210

37

1338244030
ref: 37

1338244030

38-1

1338311930
ref: 38-1

1338311930

38-2

1338344200
ref: 38-2
E22

1338344200

39

1337665010
ref: 39

1337665010

40

6626399050
ref: 40

6626399050

41

1337011400
ref: 41

1337011400

42

0211204068
ref: 42

0211204068

43

1325492311
ref: 43

1325492311

44

1337311400
ref: 44

1337311400

45

1357411400
ref: 45
RH

1357411400

46

0211205108
ref: 46
LH:3,RH:4

0211205108

47

0832121058
ref: 47
LH:3,RH:4

0832121058

48

1365151010
ref: 48

1365151010

49

1355747070
ref: 49

1355747070

50

1361744080
ref: 50

1361744080

51

1357847070
ref: 51

1357847070

52

1326844010
ref: 52
RH

1326844010

53

1357547070
ref: 53
RH

1357547070

54

1360747070
ref: 54
RH

1360747070

55

1360547080
ref: 55
RH

1360547080

56

1338844030
ref: 56

1338844030

57

1369211400
ref: 57
RH

1369211400

58

1328111400
ref: 58

1328111400

59

1321011450
ref: 59

1321011450

60

1342211400
ref: 60

1342211400

61

1368511400
ref: 61

1368511400

62

1368311450
ref: 62

1368311450

63

0211205128
ref: 63

0211205128

64

0832121058
ref: 64

0832121058

65

0211206168
ref: 65

0211206168

66

0832121068
ref: 66

0832121068

67

1326711400
ref: 67

1326711400

68

1368144110
ref: 68

1368144110

69

1362144210
ref: 69

1362144210

70

0211205088
ref: 70

0211205088

71

0832121058
ref: 71

0832121058

72

1327193011
ref: 72

1327193011

73

1341011400
ref: 73

1341011400

74

1360547070
ref: 74

1360547070

75

1368311460
ref: 75

1368311460

76

1343247090
ref: 76

1343247090

77

1368311400
ref: 77

1368311400
