FUEL TANK (MODEL Z)

GSX250ES 1982 (Z) GENERAL EXPORT (E01)

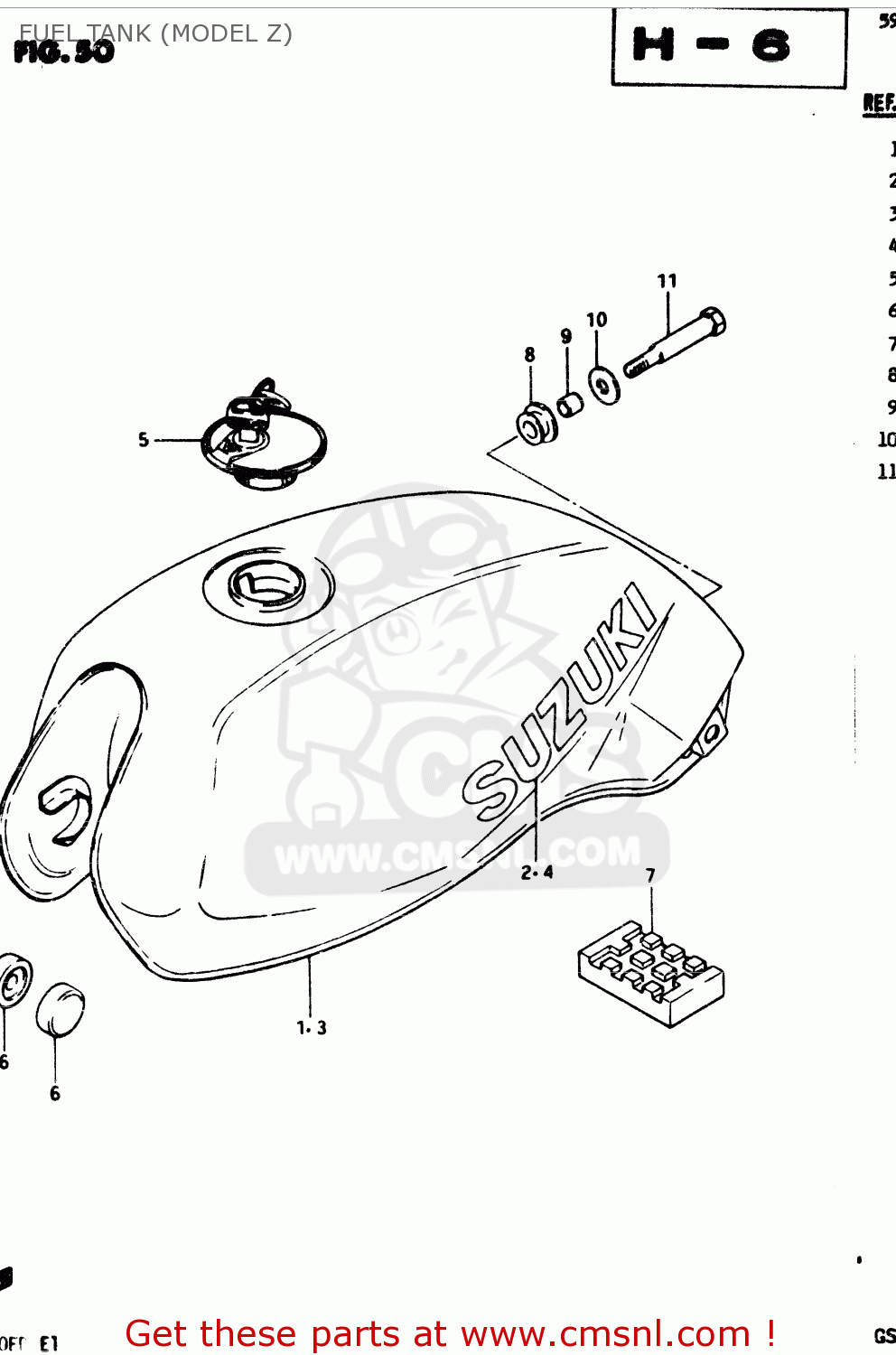

Fuel tank (model z) diagram GSX250ES 1982 (Z) GENERAL EXPORT (E01)

FUEL TANK (MODEL Z) GSX250ES 1982 (Z) GENERAL EXPORT (E01)
FUEL TANK (MODEL Z) GSX250ES 1982 (Z) GENERAL EXPORT (E01)
FUEL TANK (MODEL Z) GSX250ES 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
441004440000J
ref: 1
TANK, FUEL (RED)
€ 531.50
2
6811144400742
ref: 2
EMBLEM(SILVER)
6811144400742
€ 12.50
3
4410044400737
ref: 3
TANK, FUEL (SILVER)
€ 531.50
4
681114440005F
ref: 4
EMBLEM(ORANGE)
681114440005F
€ 12.50
5
4420034301KEY
ref: 5
CAP SET,FUEL TANK
4420034301KEY
€ 135.50
6
0932910007
ref: 6
CUSHION
0932910007
€ 3.00
7
4454134500
ref: 7
CUSHION,FUEL TANK CTR
4454134500
€ 13.00
8
0932010005
ref: 8
CUSHION
0932010005
€ 4.00
9
0918006030
ref: 9
SPACER (6.8X10X10)
0918006030
€ 2.00
10
0916006030
ref: 10
WASHER (6.5X29X1.6)
0916006030
€ 2.50
11
0911106037
ref: 11
BOLT(6X60)
0911106037
€ 4.50
