STARTING MOTOR (MODEL Z)

GSX250ES 1982 (Z) GENERAL EXPORT (E01)

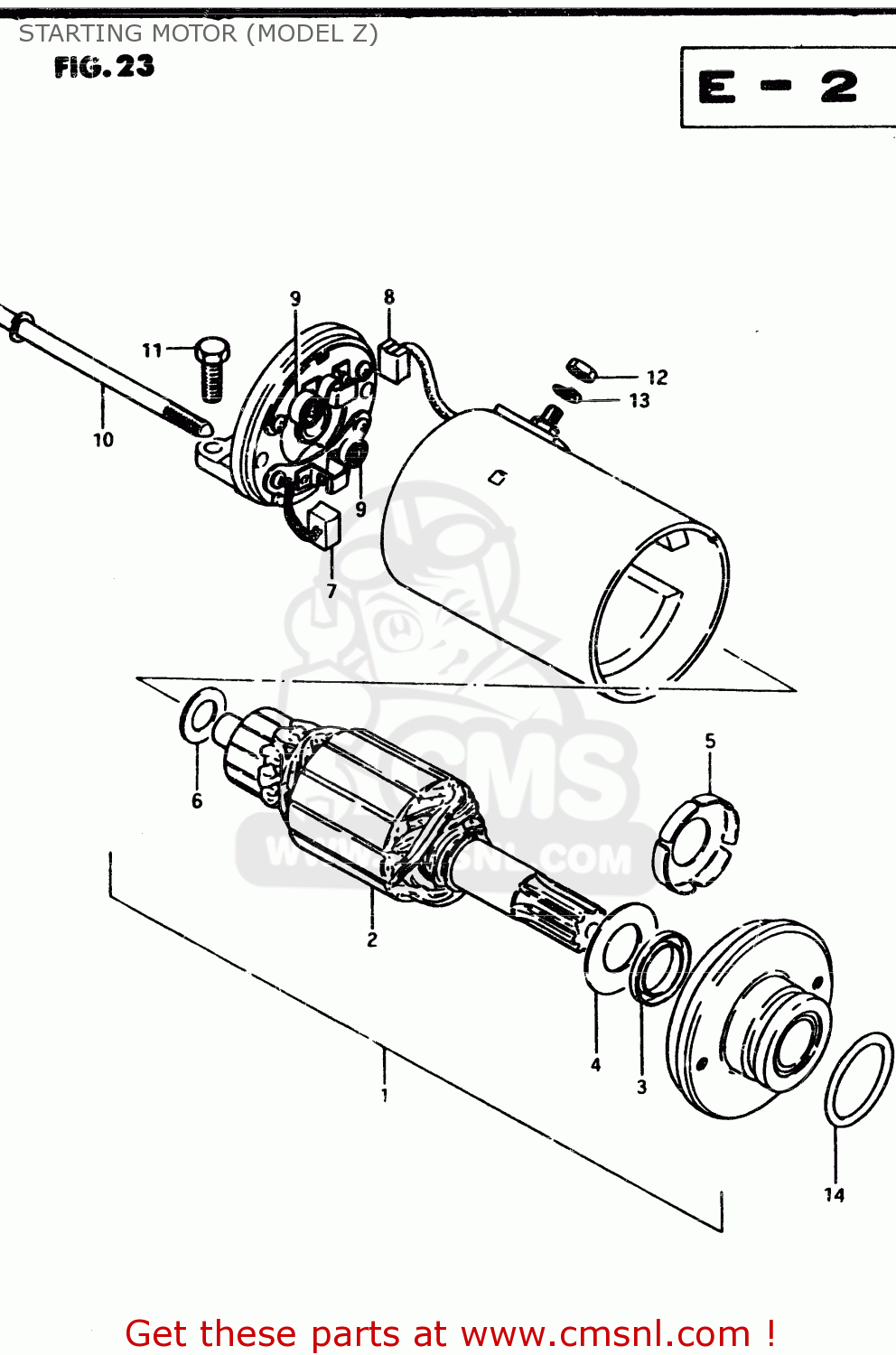

Starting motor (model z) diagram GSX250ES 1982 (Z) GENERAL EXPORT (E01)

STARTING MOTOR (MODEL Z) GSX250ES 1982 (Z) GENERAL EXPORT (E01)
STARTING MOTOR (MODEL Z) GSX250ES 1982 (Z) GENERAL EXPORT (E01)
STARTING MOTOR (MODEL Z) GSX250ES 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
3110011410
ref: 1
MOTOR ASSEMBLY,STARTING
€ 637.50
2
3131110200
ref: 2
ARMATURE
€ 167.00
3
3115345010
ref: 3
SEAL,OIL
3115345010
€ 19.50
4
3136110200
ref: 4
RING,SNAP
3136110200
€ 2.50
5
3136101400
ref: 5
SHIM,ARMATURE
€ 0.00
6
3136147010
ref: 6
SHIM,ARMATURE
€ 3.50
7
3113110200
ref: 7
BRUSH(-)
3113110200
€ 8.50
8
3113010200
ref: 8
BRUSH TERMINAL SET
€ 13.00
9
3113565010
ref: 9
SPRING
3113565010
€ 3.00
10
3128110200
ref: 10
BOLT,STARTING MOTOR HOUSING
€ 4.00
11
0110706168
ref: 11
BOLT, UPPER
€ 3.00
12
0831022068
ref: 12
NUT 6MM
€ 2.50
13
0832121068
ref: 13
LOCK WASHER
0832121068
€ 2.50
14
0928024001
ref: 14
O RING(D:2,ID:24.5)
0928024001
€ 2.00
