REAR SWINGING ARM

GSX250ES 1982 (Z) GENERAL EXPORT (E01)

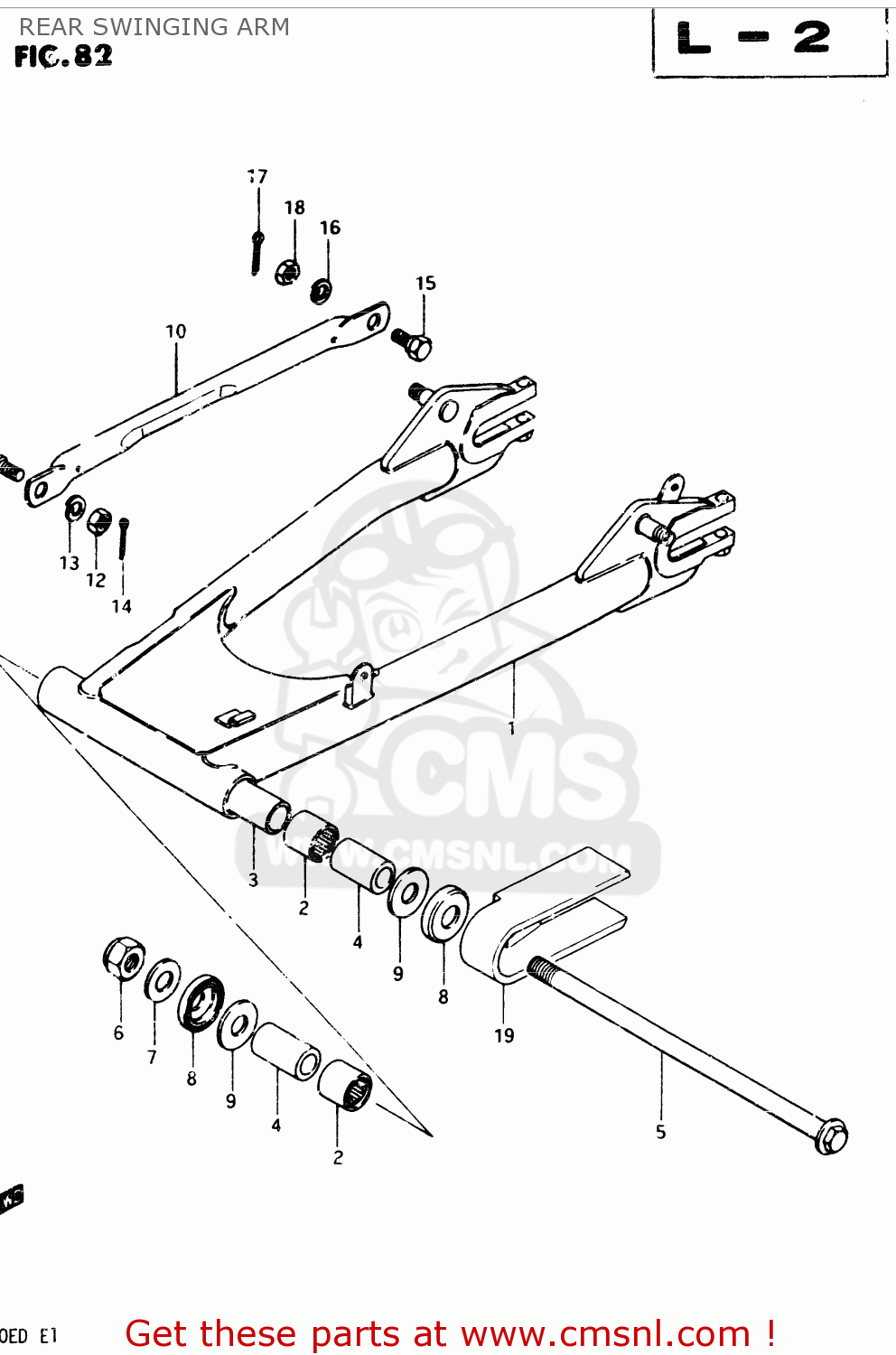

Rear swinging arm diagram GSX250ES 1982 (Z) GENERAL EXPORT (E01)

REAR SWINGING ARM GSX250ES 1982 (Z) GENERAL EXPORT (E01)
REAR SWINGING ARM GSX250ES 1982 (Z) GENERAL EXPORT (E01)
REAR SWINGING ARM GSX250ES 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
6100044400019
ref: 1-1
MODEL Z
SWING ARM ASSEMBLY,REAR
€ 247.50
1-2
6100044401019
ref: 1-2
MODEL D
ARM,REAR SWING
€ 247.50
2
0926322017
ref: 2
BEARING(22X29X30)
0926322017
€ 18.50
3
6128144001
ref: 3
SPACER,SWINGINGARM CTR
6128144001
€ 12.00
4
6125145001
ref: 4
SPACER,RR SWGARM PIVOT
6125145001
€ 12.50
5
6121144400
ref: 5
SHAFT,REAR SWING ARM
6121144400
€ 20.50
6
0831921148
ref: 6
NUT 14MM
0831921148
€ 3.00
7
0832211148
ref: 7
WASHER
0832211148
€ 2.00
8
6126245002
ref: 8
CVR,RR SWGARM DUST SEAL(OD:40)
6126245002
€ 4.50
9
0916014020
ref: 9
WASHER(14.2X34X1)
0916014020
€ 2.50
10-1
6431144000019
ref: 10-1
MODEL Z
TORQUE LINK,REAR
€ 13.00
10-2
6431144200019
ref: 10-2
MODEL D
LINK,REAR TORQUE
€ 13.00
11
0911110010
ref: 11
BOLT(10X24.5)
0911110010
€ 5.50
12
0831022108
ref: 12
NUT
0831022108
€ 2.50
13
0832121108
ref: 13
LOCK WASHER
0832121108
€ 2.00
14
0411120208
ref: 14
PIN 20X20
0411120208
€ 1.50
15
0910110003
ref: 15
BOLT(10X31)
0910110003
€ 4.00
16
0832121108
ref: 16
LOCK WASHER
0832121108
€ 2.00
17
0411120208
ref: 17
PIN 20X20
0411120208
€ 1.50
18
0831011108
ref: 18
NUT
0831011108
€ 2.50
19
6127311900
ref: 19
MODEL D
BUFFER,CHAIN TOUCH DEFLECTOR
€ 9.00
