CRANKCASE (MODEL Z)

GSX250ES 1982 (Z) GENERAL EXPORT (E01)

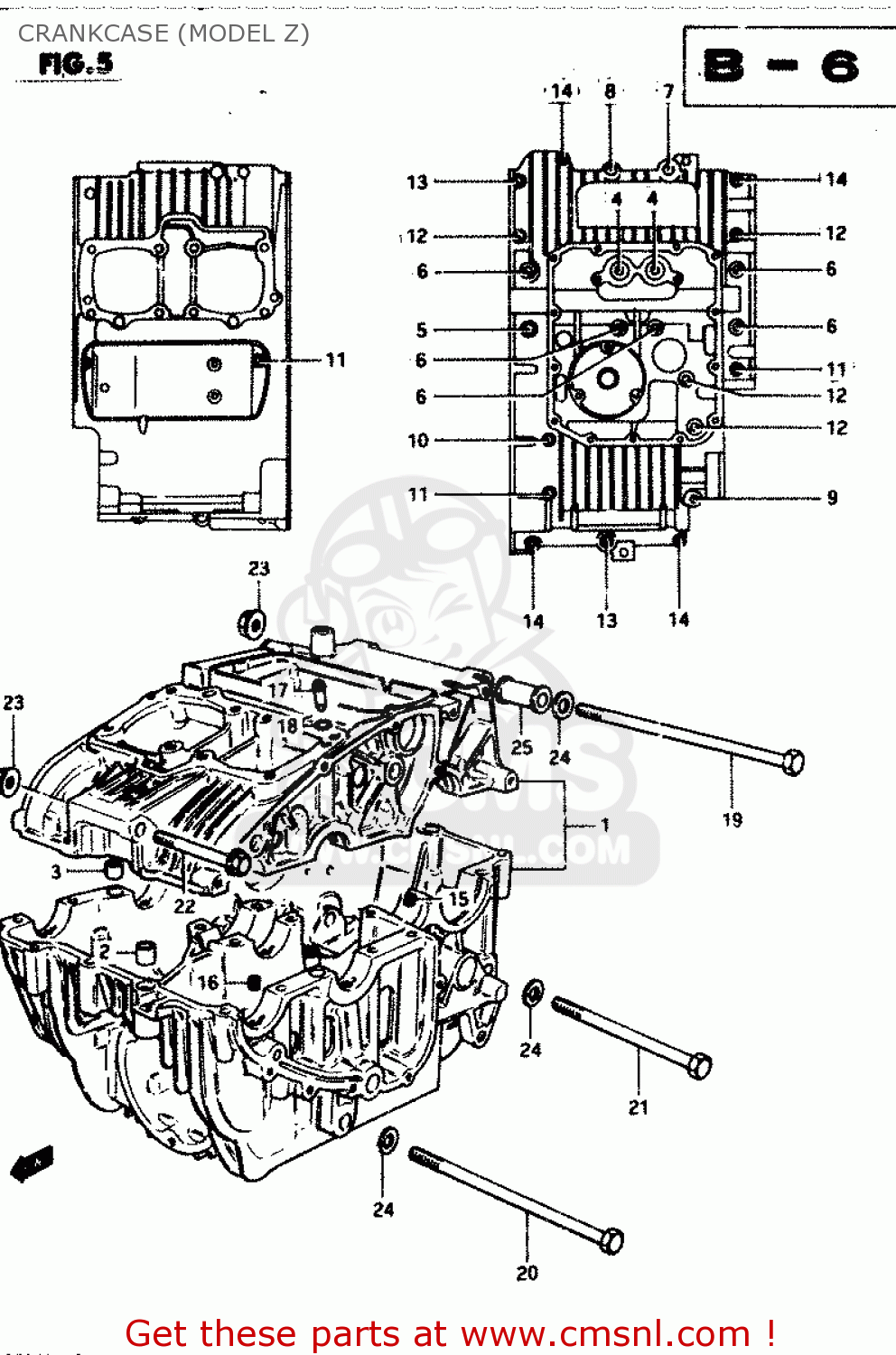

Crankcase (model z) diagram GSX250ES 1982 (Z) GENERAL EXPORT (E01)

CRANKCASE (MODEL Z) GSX250ES 1982 (Z) GENERAL EXPORT (E01)

CRANKCASE (MODEL Z) GSX250ES 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1130011402
ref: 1

CRANKCASE SET

€ 638.00

2

0920613004
ref: 2

PIN(10.4X13X22)

€ 3.00

3

0920611005
ref: 3

PIN (11X20)(SUS)

€ 6.50

4

0910608014
ref: 4

BOLT

€ 4.00

5

0910308020
ref: 5

BOLT

€ 8.00

6

0910308025
ref: 6

BOLT

€ 3.00

7

0151708658
ref: 7

BOLT 8X65

€ 3.00

8

0151708508
ref: 8

BOLT

€ 3.50

9

0151708408
ref: 9

BOLT (8X40)

€ 3.50

10

0910306031
ref: 10

BOLT

€ 3.50

11

0910306067
ref: 11

BOLT(6X105)

€ 3.50

12

0151706908
ref: 12

BOLT (6X90)

€ 2.00

13

0151706608
ref: 13

BOLT (6X60)

€ 2.50

14

0151706458
ref: 14

BOLT,UNDER

€ 2.50

15

0949320012
ref: 15

JET,AIR(100)

€ 12.00

16

0949340001
ref: 16

JET,AIR

€ 11.50

17

0949340002
ref: 17

JET,AIR

€ 16.00

18

0928003003
ref: 18

O RING(D:1.05,ID:3.1)

€ 2.50

19

0910010033
ref: 19

BOLT(10X210)

€ 46.50

20

0910010034
ref: 20

BOLT 10X215

€ 6.50

21

0910010092
ref: 21

BOLT 10X160

€ 28.50

22

0151710908
ref: 22

BOLT

€ 4.00

23

0831931105
ref: 23

NUT 10MM

€ 3.00

24

0832211108
ref: 24

WASHER

€ 2.50

25

1161044100
ref: 25

SPACER,ENGINE MOUNT

€ 9.50
