OIL FILTER - OIL PUMP

GSX250ES 1982 (Z) GENERAL EXPORT (E01)

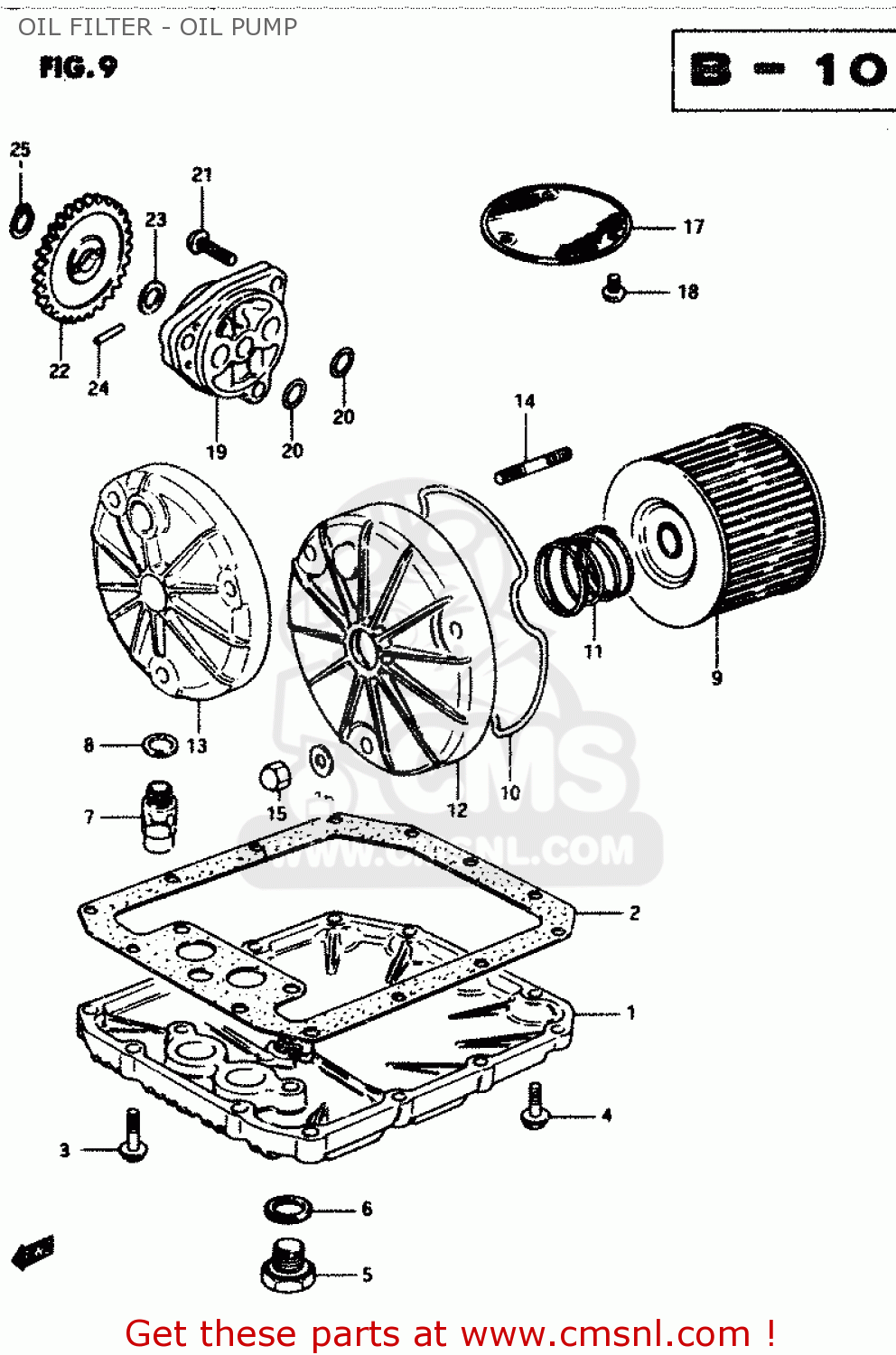

Oil filter - oil pump diagram GSX250ES 1982 (Z) GENERAL EXPORT (E01)

OIL FILTER - OIL PUMP GSX250ES 1982 (Z) GENERAL EXPORT (E01)

OIL FILTER - OIL PUMP GSX250ES 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

1151111400
ref: 1-1
MODEL Z

PAN,OIL

€ 57.00

1-2

1151111410
ref: 1-2
MODEL D

PAN,OIL

€ 57.00

2

1148911400
ref: 2

GASKET,OIL PAN (MCA)

€ 8.50

3-1

0151706258
ref: 3-1
MODEL Z

BOLT

€ 2.50

3-2

0151706255
ref: 3-2
MODEL D

BOLT

€ 2.50

4-1

0151706208
ref: 4-1
MODEL Z

BOLT,REAR

€ 2.50

4-2

0151706205
ref: 4-2
MODEL D

BOLT

€ 2.50

5

0924714001
ref: 5

PLUG

€ 5.00

6

0916814004
ref: 6

GASKET(14X19.2X2) (NAS)

€ 2.50

7-1

1644034301
ref: 7-1
MODEL Z

REGULATOR ASSEMBLY,ENGINE

€ 37.00

7-2

1644033300
ref: 7-2
MODEL D

VALVE ASSEMBLY,OIL RELIEF

€ 37.00

8

0821214181
ref: 8

WASHER

€ 2.00

9

1651045040
ref: 9

FILTER ASSY,ENGINE OIL

€ 7.50

10

1651845000
ref: 10

O RING,OIL FILTER CHAMBER CAP

€ 7.50

11

0944032004
ref: 11

SPRING

€ 13.50

12

1651245101
ref: 12
MODEL Z

CAP,ENGINE OIL FILTER

€ 37.50

13

1651244410
ref: 13
MODEL D

CAP,OIL FILTER

€ 47.00

14

0142106208
ref: 14

STUD 6X20

€ 2.50

15-1

0831311068
ref: 15-1
MODEL Z

NUT

€ 2.00

15-2

0831311065
ref: 15-2
MODEL D

NUT 6MM

€ 2.00

16-1

0832221068
ref: 16-1
MODEL Z

WASHER

€ 2.00

16-2

0832221065
ref: 16-2
MODEL D

WASHER

€ 2.00

17

1652011400
ref: 17

STRAINER,ENGINE OIL

€ 7.50

18

0211206128
ref: 18

SCREW 6X12

€ 2.00

19

1640044100
ref: 19

PUMP ASSY,ENGINE OIL

€ 164.50

20

0928013004
ref: 20

O RING(D:1.9,ID:13)

€ 2.50

21

0211206258
ref: 21

SCREW

€ 2.00

22

1633111400
ref: 22

GEAR,OIL PUMP DRIVEN

€ 31.50

23

0822110185
ref: 23

SHIM

€ 2.00

24

0926104009
ref: 24

PIN(4X15.8)

€ 1.50

25

0833131109
ref: 25

CIRCLIP

€ 2.00
