REAR BRAKE
GSX250ES 1982 (Z) GENERAL EXPORT (E01)

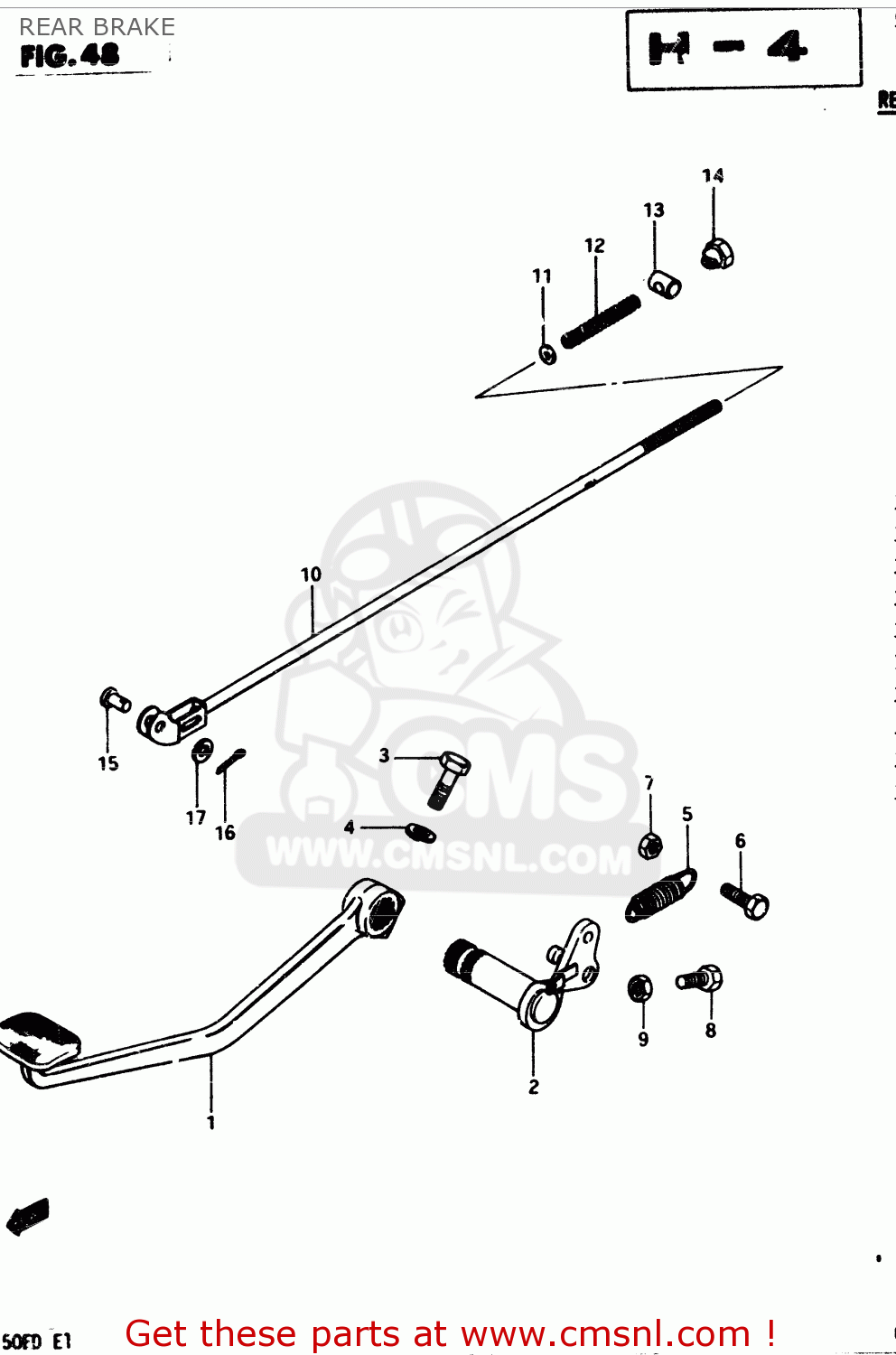

Rear brake diagram GSX250ES 1982 (Z) GENERAL EXPORT (E01)
REAR BRAKE GSX250ES 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
4311011500
ref: 1-1
MODEL Z
PEDAL,BRAKE
€ 65.50
1-2
4311011501
ref: 1-2
MODEL D
PEDAL,BRAKE
€ 65.50
2-1
4312011500
ref: 2-1
MODEL Z
ARM,BRAKE PEDAL
€ 21.00
2-2
4312011501
ref: 2-2
MODEL D
ARM,BRAKE PEDAL
€ 21.00
3
0110708258
ref: 3
BOLT
€ 2.50
4
0832121088
ref: 4
LOCK WASHER
€ 2.00
5
0944314020
ref: 5
SPRING
€ 3.00
6
0110706258
ref: 6
BOLT
€ 2.00
7
0831011068
ref: 7
NUT
€ 2.50
8
0110706208
ref: 8
BOLT
€ 2.00
9
0831011068
ref: 9
NUT
€ 2.50
10
4330044401
ref: 10
ROD ASSY,RR BRAKE
€ 16.00
11
0832221068
ref: 11
WASHER
€ 2.00
12
0944009004
ref: 12
SPRING
€ 2.00
13-1
0920913003
ref: 13-1
MODEL Z
PIN
€ 3.50
13-2
0920913005
ref: 13-2
MODEL D
PIN
€ 3.50
14-1
0915006001
ref: 14-1
MODEL Z
NUT
€ 3.50
14-2
0915006009
ref: 14-2
MODEL D
NUT (6MM)
€ 3.50
15
0920006013
ref: 15
PIN(L:13.5)
€ 2.00
16
0411120208
ref: 16
PIN 20X20
€ 1.50
17
0832221068
ref: 17
WASHER
€ 2.00
