COWLING (OPTIONAL)

GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

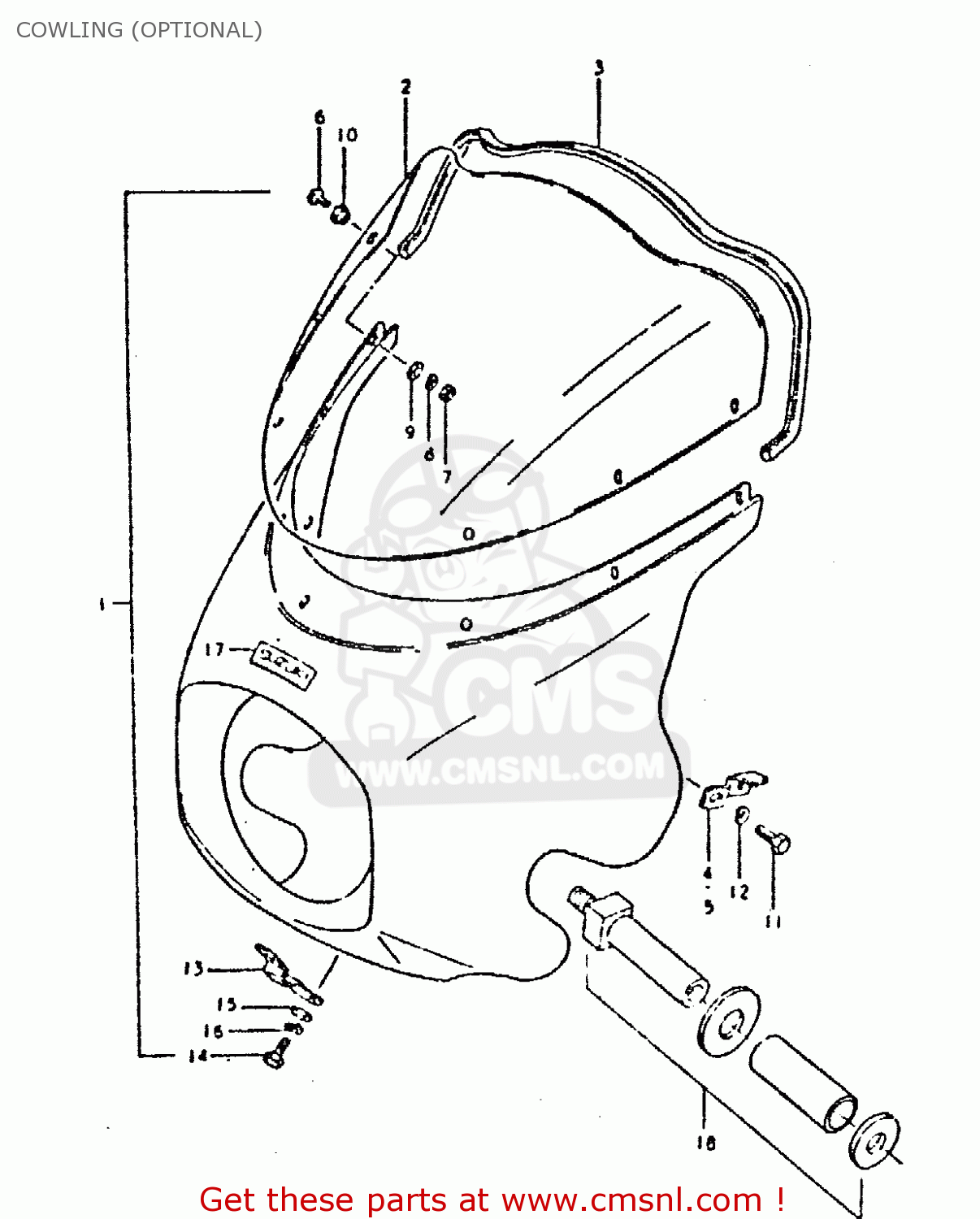

Cowling (optional) diagram GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

COWLING (OPTIONAL) GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
COWLING (OPTIONAL) GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
COWLING (OPTIONAL) GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
prices are in EUR
ref
part #
description
quantity
1-1
944004413100J
ref: 1-1
COWLING ASSY
€ 0.00
1-2
944004413105H
ref: 1-2
COWLING ASSY
€ 0.00
1-3
9440044131019
ref: 1-3
COWLING ASSY
€ 0.00
1-4
9440044131737
ref: 1-4
COWLING ASSY
€ 0.00
1-5
944004414100J
ref: 1-5
COWLING ASSY
€ 0.00
1-6
NOTUSED
ref: 1-6
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-7
944004414105H
ref: 1-7
COWLING ASSY
€ 0.00
1-8
9440044141737
ref: 1-8
COWLING ASSY
€ 0.00
2-1
9461144110
ref: 2-1
WINDOW, COWLING
€ 0.00
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
9463144100
ref: 3
TO 94631-44110
MOLDING,COWLING
€ 18.00
4
9451044100
ref: 4
BRACKET,COWLING,RIGHT
€ 10.00
5
9452044100
ref: 5
BRACKET, LH
9452044100
€ 8.00
6
0214205127
ref: 6
SCREW
0214205127
€ 1.50
7
0831011058
ref: 7
NUT
0831011058
€ 2.50
8
0832121058
ref: 8
LOCK WASHER
0832121058
€ 2.00
9
0832221058
ref: 9
WASHER
€ 2.50
10
0932005008
ref: 10
CUSHION
0932005008
€ 5.00
11
0110706108
ref: 11
BOLT
€ 2.00
12
0832121068
ref: 12
LOCK WASHER
0832121068
€ 2.50
13
9455144100
ref: 13
BRACKET,COWLING,LOWER
€ 17.00
14
0110706128
ref: 14
BOLT
0110706128
€ 2.00
15
0832221068
ref: 15
WASHER
0832221068
€ 2.00
16
0832121068
ref: 16
LOCK WASHER
0832121068
€ 2.50
17
6827844100
ref: 17
EMBLEM
6827844100
€ 19.60
18
990009901900T
ref: 18
TURN SIGNAL, EXTENTION
€ 0.00
