WIRING HARNESS

GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

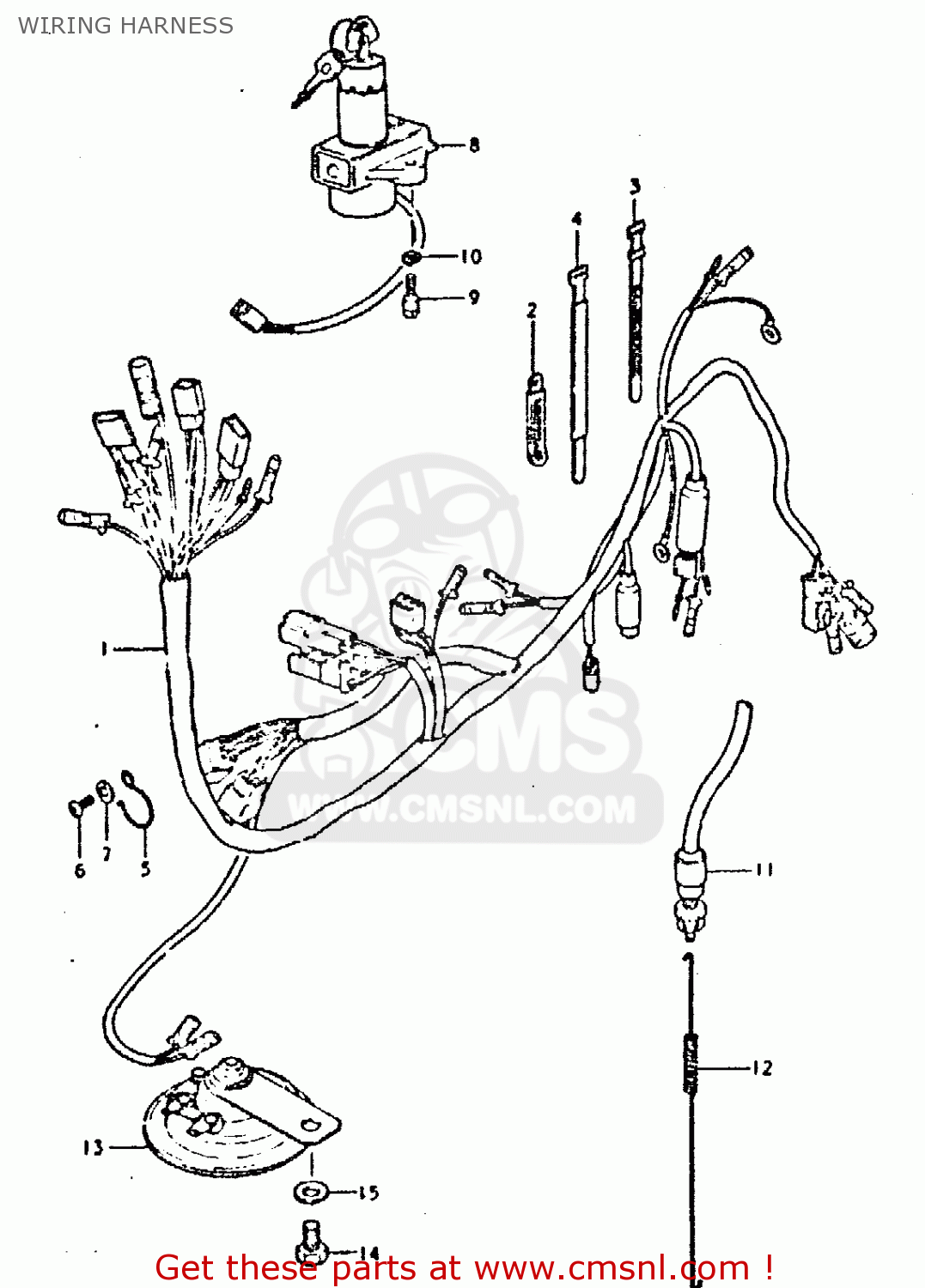

Wiring harness diagram GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

WIRING HARNESS GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

WIRING HARNESS GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

prices are in EUR

ref

part #

description

quantity

1-1

3661044150
ref: 1-1
MODEL T

WIRING HARNESS

€ 205.50

1-2

3661044170
ref: 1-2
MODEL X

WIRING HARNESS

€ 205.50

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-4

NOTUSED
ref: 1-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

0940406414
ref: 2

CLAMP

€ 3.00

3-1

0940708401
ref: 3-1

CLAMP(L:80)

€ 2.50

3-2

0940712402
ref: 3-2

CLAMP(L:120)

€ 3.00

4-1

0940718301
ref: 4-1

CLAMP

€ 6.00

4-2

NOTUSED
ref: 4-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

5

3661944000
ref: 5

GUIDE,WIRING HARNESS

€ 2.50

6

0211206128
ref: 6

SCREW 6X12

€ 2.00

7

0832211068
ref: 7

WASHER 6MM

€ 2.00

8-1

3710047011
ref: 8-1
FROM 37100-47010

LOCK ASSEMBLY,STEERING

€ 127.50

8-2

NOTUSED
ref: 8-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9

3715247010
ref: 9

BOLT

€ 3.00

10

0832121068
ref: 10

LOCK WASHER

€ 2.50

11

3774004571
ref: 11
FROM 37740-04570

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

12

0944306005
ref: 12

SPRING

€ 6.00

13-1

3850247000
ref: 13-1
MODEL T

HORN ASSEMBLY,LOW PITCH

€ 77.00

13-2

3850044200
ref: 13-2
MODEL X

HORN ASSEMBLY

€ 60.00

14

0110708128
ref: 14

BOLT 8X12

€ 2.50

15

0832211088
ref: 15

WASHER

€ 2.00
