Buy Suzuki GSX Parts Online


HANDLEBAR (GSX400ET, GSX400EX)

GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

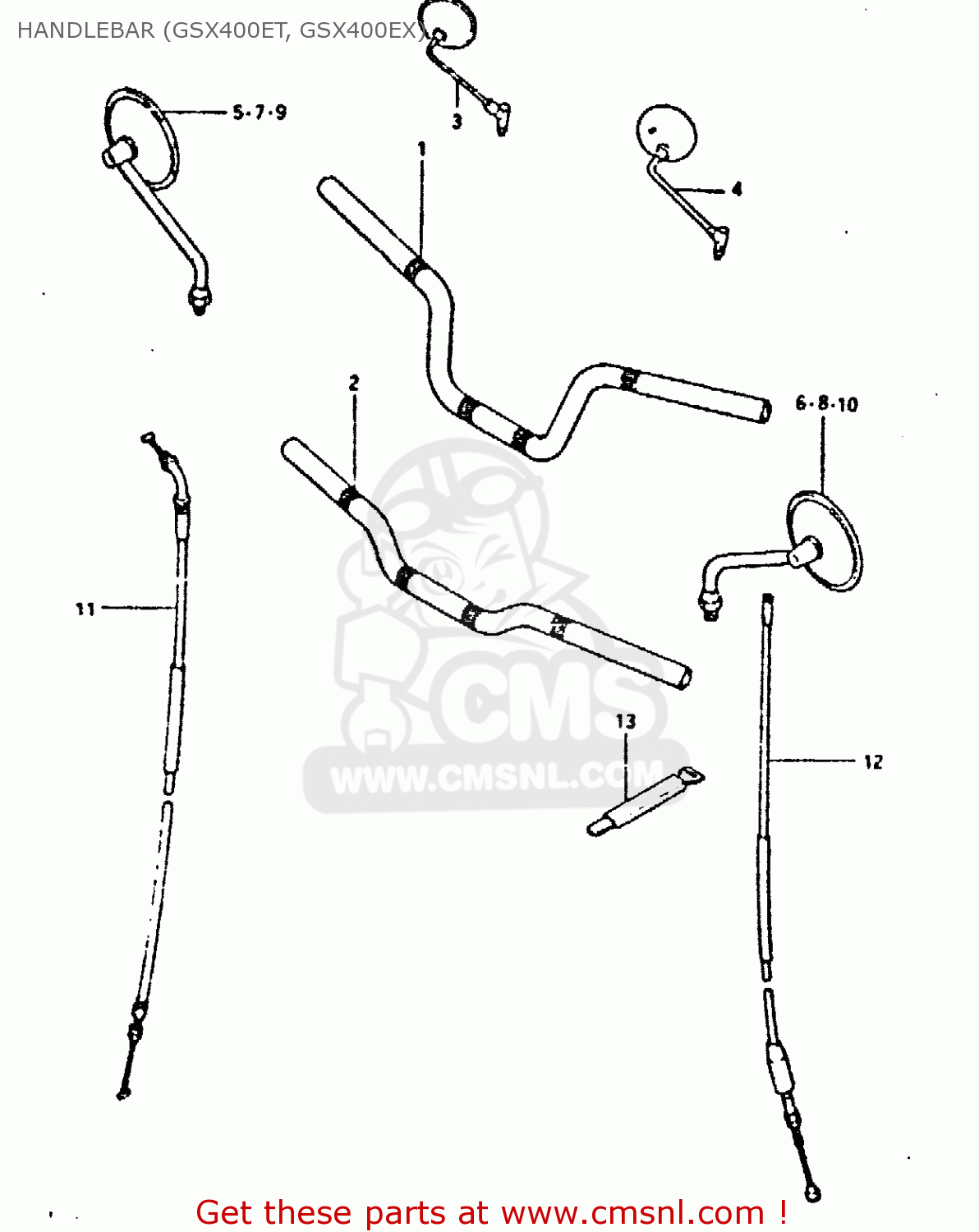

Handlebar (gsx400et, gsx400ex) diagram GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

HANDLEBAR (GSX400ET, GSX400EX) GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
HANDLEBAR (GSX400ET, GSX400EX) GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
HANDLEBAR (GSX400ET, GSX400EX) GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
prices are in EUR
ref
part #
description
quantity
1
5611044120
ref: 1
HANDLEBAR
€ 52.00
2
5611044130
ref: 2
HANDLEBAR
€ 61.00
3
5650045650
ref: 3
MIRROR ASSY,RR VIEW
5650045650
€ 35.00
4-1
NOTUSED
ref: 4-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
4-2
NOTUSED
ref: 4-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
5
NOTUSED
ref: 5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
6
NOTUSED
ref: 6
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7
NOTUSED
ref: 7
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8
NOTUSED
ref: 8
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9
NOTUSED
ref: 9
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
NOTUSED
ref: 10
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11-1
5820044100
ref: 11-1
CABLE ASSY,CLUTCH
5820044100
€ 41.50
11-2
5820044110
ref: 11-2
CABLE ASSEMBLY,CLUTCH
€ 41.50
12-1
5830044100
ref: 12-1
CABLE ASSEMBLY,THROTTLE
5830044100
€ 23.50
12-2
5830044110
ref: 12-2
CABLE ASSEMBLY,THROTTLE
5830044110
€ 25.00
13
0940718301
ref: 13
CLAMP
0940718301
€ 6.00
