Buy Suzuki GSX Parts Online


STEERING STEM (GSX400ST ~F.NO. 500305/ET, EX)

GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

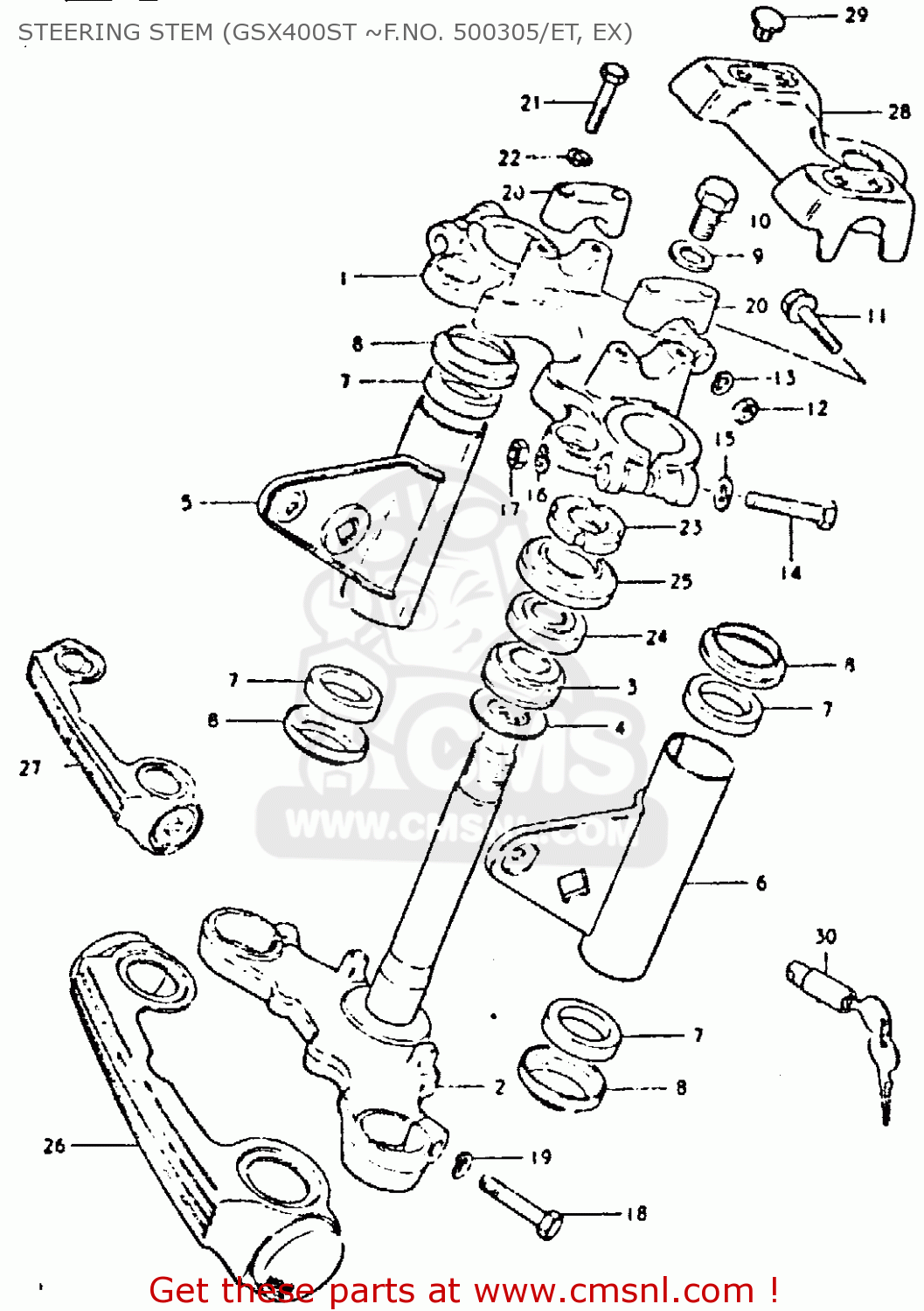

Steering stem (gsx400st ~f.no. 500305/et, ex) diagram GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

STEERING STEM (GSX400ST ~F.NO. 500305/ET, EX) GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
STEERING STEM (GSX400ST ~F.NO. 500305/ET, EX) GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
STEERING STEM (GSX400ST ~F.NO. 500305/ET, EX) GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
prices are in EUR
ref
part #
description
quantity
1
5131144100291
ref: 1
BLACK
HEAD,STEERING STEM
5131144100291
€ 133.00
2-1
5140044811
ref: 2-1
STEM,STEERING
€ 178.00
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
0926530005
ref: 3
BEARING
0926530005
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
0821130402
€ 4.00
5
5153044100291
ref: 5
BLACK
BRACKET,HEADLAMP,RIGHT
5153044100291
€ 38.50
6
5154044100291
ref: 6
BLACK
BRACKET,HEADLAMP,LEFT
5154044100291
€ 38.50
7
5155644100
ref: 7
CUSHION,HEADLAMP BRACKET
5155644100
€ 5.50
8
5155544100
ref: 8
CAP,HEADLAMP BRACKET
5155544100
€ 5.50
9
0916012006
ref: 9
WASHER
€ 2.00
10
0910412013
ref: 10
BOLT(12X20)
0910412013
€ 6.50
11
0152708507
ref: 11
BOLT
€ 3.50
12
0831012088
ref: 12
NUT
0831012088
€ 2.00
13
0832121088
ref: 13
LOCK WASHER
0832121088
€ 2.00
14
0110710558
ref: 14
BOLT 10X55
0110710558
€ 3.50
15
0832211108
ref: 15
WASHER
€ 2.50
16
0832121108
ref: 16
LOCK WASHER
0832121108
€ 2.00
17
0831011108
ref: 17
NUT
0831011108
€ 2.50
18
0110710408
ref: 18
BOLT 10X40
0110710408
€ 3.00
19
0832121108
ref: 19
LOCK WASHER
0832121108
€ 2.00
20
5621127200291
ref: 20
BLACK
HOLDER,HANDLE UPR
5621127200291
€ 13.50
21
0910608004
ref: 21
BOLT 8X35
€ 4.00
22
0832131088
ref: 22
WASHER,LOCK,8.
€ 2.00
23
5163128000
ref: 23
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
24
0926525008
ref: 24
TAPER,ROLLER BEARING
0926525008
€ 48.50
25
5164349001
ref: 25
DUST SEAL,STEERING,UPPER
5164349001
€ 7.50
26
5187047000
ref: 26
COVER,FR FORK
5187047000
€ 42.00
27
NOTUSED
ref: 27
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
28
5617044100
ref: 28
PAD,HANDLE
5617044100
€ 21.00
29
0925006002
ref: 29
CAP(OD:19.5)
0925006002
€ 2.00
30
NOTUSED
ref: 30
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
