FUEL TANK (GSX400SX)

GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

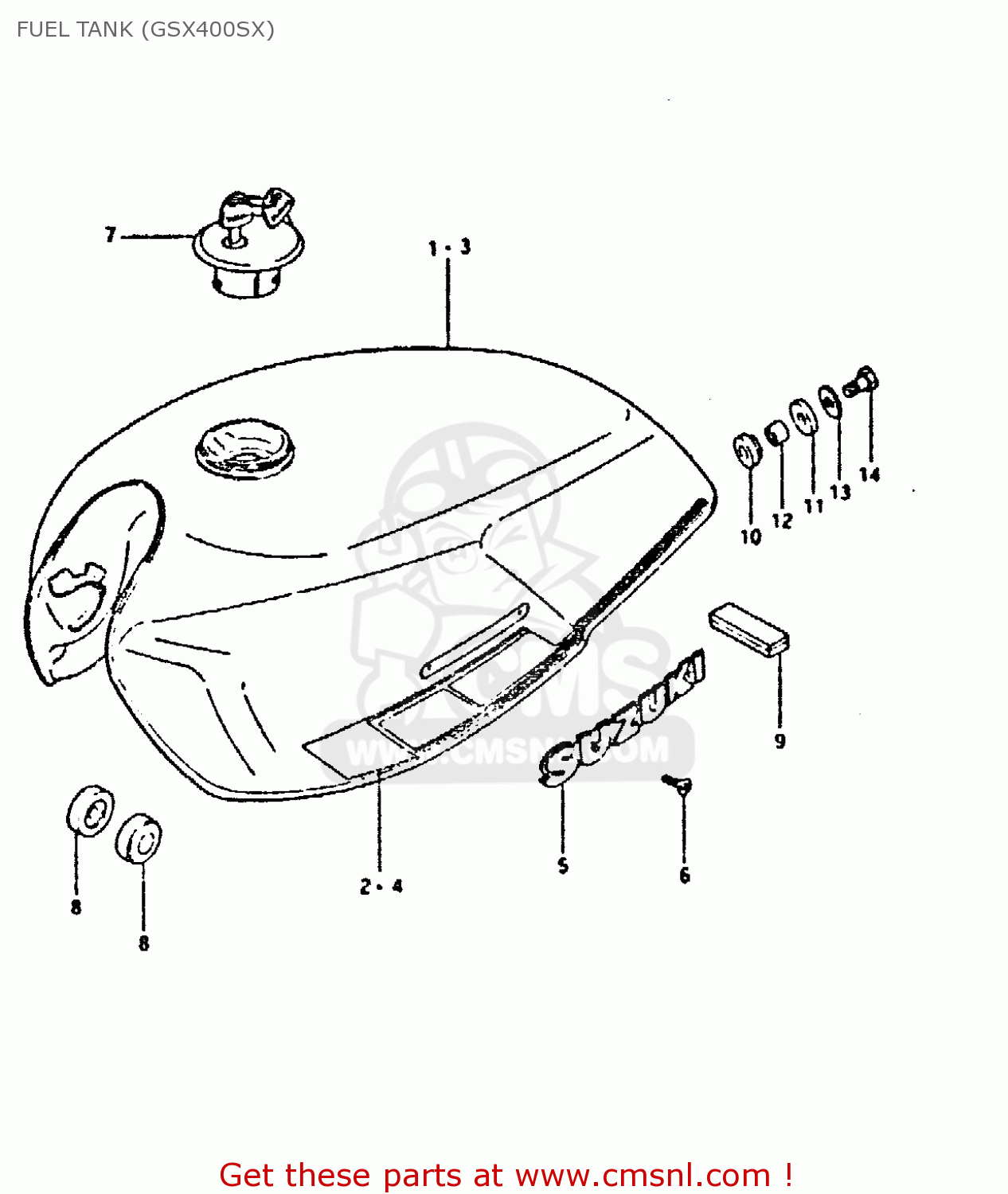

Fuel tank (gsx400sx) diagram GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

prices are in EUR

ref

part #

description

quantity

4410044180019
ref: 1

TANK, FUEL (BLACK)

€ 577.00

681104418075S
ref: 2

TAPE SET

€ 0.00

441004418010V
ref: 3

TANK, FUEL (WHITE)

€ 577.00

681104418067H
ref: 4

TAPE SET

€ 0.00

6811149000
ref: 5

EMBLEM

€ 22.00

0213203065
ref: 6

SCREW 3X6

€ 2.00

4420030703
ref: 7

CAP SET,FUEL TANK

€ 112.00

0932910007
ref: 8

CUSHION

€ 3.00

0932901005
ref: 9

CUSHION

€ 11.50

0932012010
ref: 10

CUSHION

€ 3.00

0932012023
ref: 11

CUSHION

€ 2.50

0918008067
ref: 12

SPACER(8.5X12X19)

€ 2.50

0916008002
ref: 13

WASHER (8.5X29X1.6)

€ 2.00

0110708308
ref: 14

BOLT (8X30)

€ 2.50
