TURN SIGNAL LAMP

GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

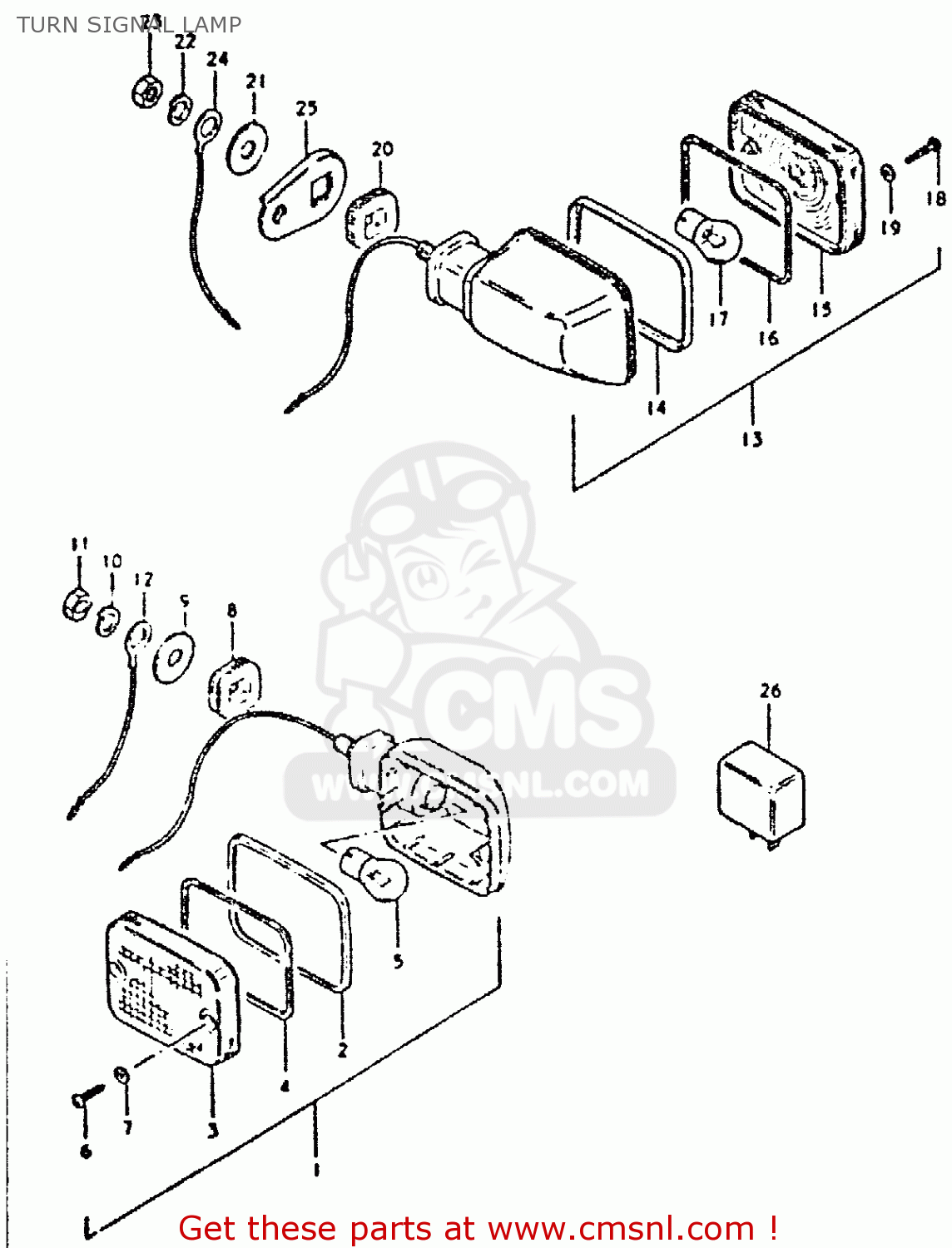

Turn signal lamp diagram GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

TURN SIGNAL LAMP GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
TURN SIGNAL LAMP GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
TURN SIGNAL LAMP GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)
prices are in EUR
ref
part #
description
quantity
1-1
3560144120
ref: 1-1
GSX400ET, EX TO 3560
LAMP, FRONT TURN SIGNAL
€ 102.00
1-2
3560144140
ref: 1-2
GSX400ST, SX
LAMP, FRONT TURN SIGNAL
3560144140
€ 102.00
2
3561149230
ref: 2
RIM
3561149230
€ 11.00
3
3561249230
ref: 3
TO 35612-49231
LENS
€ 13.00
4
3561349230
ref: 4
GASKET (NAS)
3561349230
€ 5.00
5
0947112056
ref: 5
BULB 12V 21W
0947112056
€ 5.00
6
0321104208
ref: 6
SCREW
0321104208
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
3562743010
€ 2.00
8
0932015002
ref: 8
CUSHION
0932015002
€ 4.50
9
0916010006
ref: 9
WASHER (10.5X30X2.3)
0916010006
€ 2.50
10
0832121108
ref: 10
LOCK WASHER
0832121108
€ 2.00
11
0831012108
ref: 11
NUT
0831012108
€ 2.50
12
3666033000
ref: 12
LEAD WIRE,EARTH
3666033000
€ 5.00
13
3560344171
ref: 13
FROM 35603-44170
LAMP, REAR TURN SIGNAL
€ 82.00
14
3561149230
ref: 14
RIM
3561149230
€ 11.00
15
3565244181
ref: 15
FROM 35652-44180
LENS
€ 13.00
16
3561349230
ref: 16
GASKET (NAS)
3561349230
€ 5.00
17
0947112056
ref: 17
BULB 12V 21W
0947112056
€ 5.00
18
0321104208
ref: 18
SCREW
0321104208
€ 1.50
19
3562743010
ref: 19
GASKET (NAS)
3562743010
€ 2.00
20
0932015002
ref: 20
CUSHION
0932015002
€ 4.50
21
0916010006
ref: 21
WASHER (10.5X30X2.3)
0916010006
€ 2.50
22
0832121108
ref: 22
LOCK WASHER
0832121108
€ 2.00
23
0831012108
ref: 23
NUT
0831012108
€ 2.50
24
3666033000
ref: 24
LEAD WIRE,EARTH
3666033000
€ 5.00
25
4158032201
ref: 25
BRACKET,RR TURN SIGNAL LAMP
4158032201
€ 41.50
26
3861045031
ref: 26
RELAY,TURN SIGNAL
3861045031
€ 54.50
