FRAME

GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

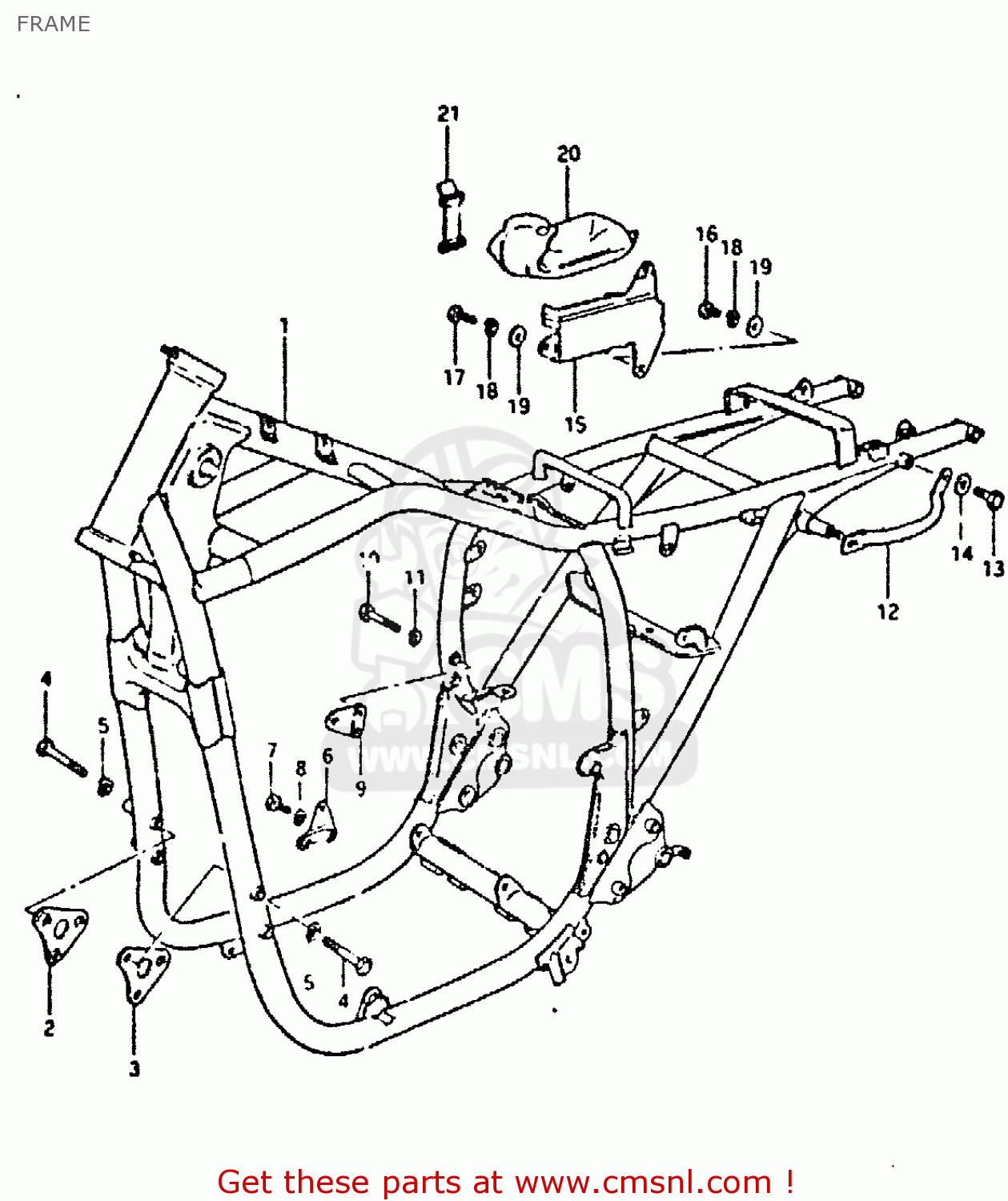

Frame diagram GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

FRAME GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

FRAME GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

prices are in EUR

ref

part #

description

quantity

1-1

4110044100019
ref: 1-1
~F.NO. 500305

FRAME

€ 0.00

1-2

4110044150019
ref: 1-2
F.NO. 500306~

FRAME (BLACK)

€ 0.00

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-4

NOTUSED
ref: 1-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-5

NOTUSED
ref: 1-5

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

4193044000019
ref: 2

PLATE,ENGINE MOUNTING

€ 8.00

3

4194044000019
ref: 3

PLATE,ENGINE MOUNTING

€ 8.00

4

0110708608
ref: 4

BOLT

€ 2.50

5

0832121088
ref: 5

LOCK WASHER

€ 2.00

6

4192044100019
ref: 6

PLATE,ENGINE MOUNTING

€ 0.00

7

0110708168
ref: 7

BOLT

€ 2.00

8

0832121088
ref: 8

LOCK WASHER

€ 2.00

9

4191044000019
ref: 9

PLATE,ENGINE MOUNTING

€ 0.00

10

0110708458
ref: 10

BOLT 8X45

€ 2.50

11

0832121088
ref: 11

LOCK WASHER

€ 2.00

12

4161144100
ref: 12

GRIP,FRAME HANDLE

€ 18.50

13

0110708168
ref: 13

BOLT

€ 2.00

14

0832211088
ref: 14

WASHER

€ 2.00

15

4155144100
ref: 15

HOLDER,TOOL

€ 28.50

16

0211206128
ref: 16

SCREW 6X12

€ 2.00

17

0211206168
ref: 17

SCREW

€ 2.50

18

0832121068
ref: 18

LOCK WASHER

€ 2.50

19

0832221068
ref: 19

WASHER

€ 2.00

20

0980000811
ref: 20

TOOL ASSY

€ 52.00

21

0946200072
ref: 21

BAND

€ 3.50
