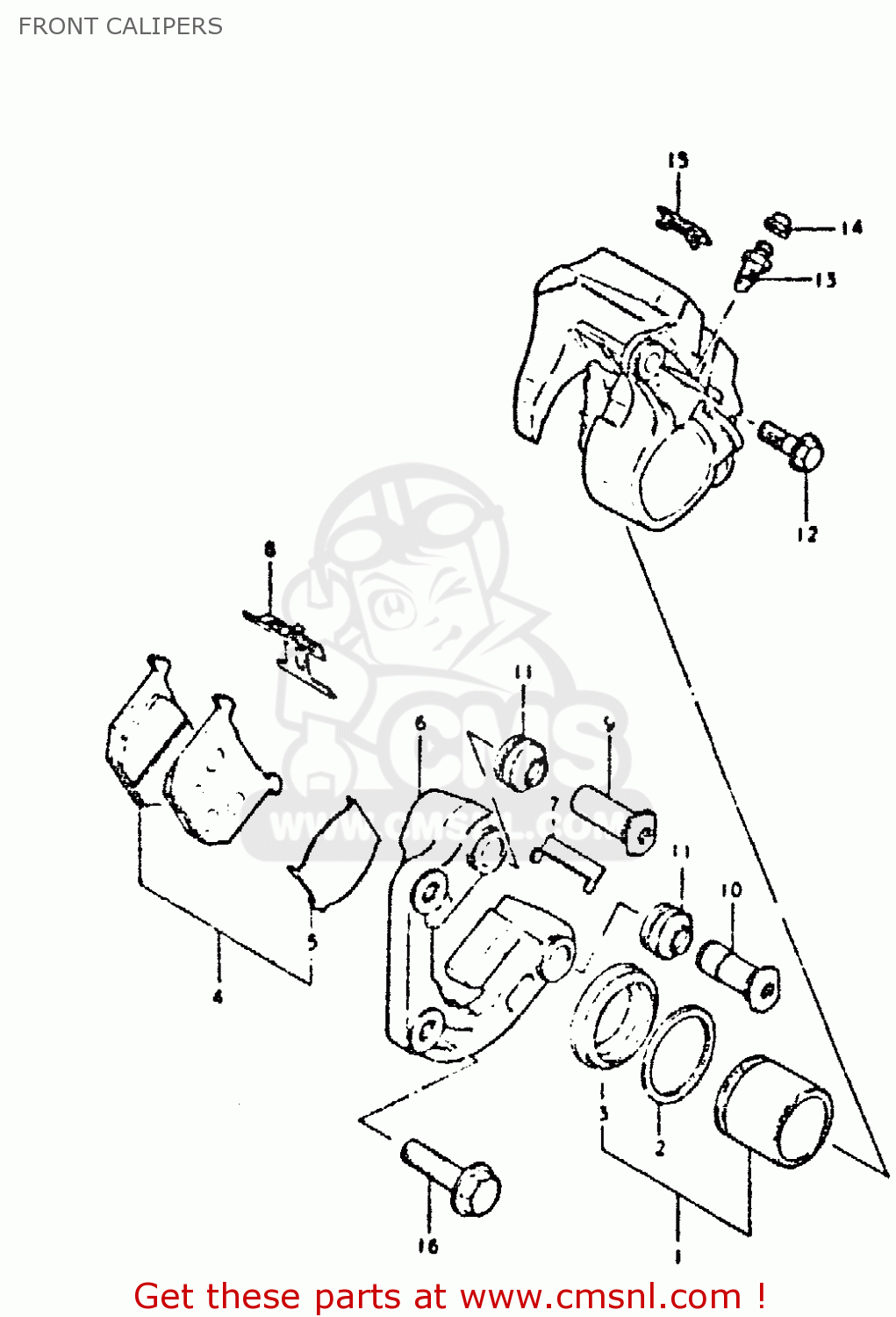

FRONT CALIPERS

GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

Front calipers diagram GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

FRONT CALIPERS GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

FRONT CALIPERS GSX400S 1980 (T) UNITED KINGDOM FRANCE GERMANY (E02 E04 E22)

prices are in EUR

ref

part #

description

quantity

0

5930045250
ref: 0

CALIPER ASSEMBLY,FRONT,LEFT

€ 400.00

1

5930145830
ref: 1

PISTON SET

€ 47.00

2

5513666310
ref: 2

SEAL,FR CALIPE

€ 8.50

3

5930845250
ref: 3

BOOT,PISTON

€ 8.00

4

5930145810
ref: 4

PAD SET (MCA)

€ 72.50

5

5937145200
ref: 5

SHIM,PAD

€ 12.50

6

5930145840
ref: 6

CARRIER,CALIPER,LEFT

€ 67.00

7

5931645200
ref: 7

GUIDE,PAD

€ 19.00

8

5931545200
ref: 8

SPRING,PAD

€ 29.00

9

5930545200
ref: 9

AXLE NO.1

€ 15.00

10

5930645200
ref: 10

AXLE NO.2

€ 13.50

11

5931245200
ref: 11

BOOT,AXLE

€ 10.50

12

5931445200
ref: 12

BOLT,CALIPER HOUSING

€ 12.00

13

5912118410
ref: 13

BLEEDER

€ 8.00

14

5912218410
ref: 14

CAP,BREATHER

€ 6.00

15

5932445200
ref: 15

COVER,INDICATOR

€ 5.00

16

0910310019
ref: 16

BOLT(10X37)

€ 2.50
