CARBURETOR
GSX600FU2 1997 (V) GERMANY (E22)

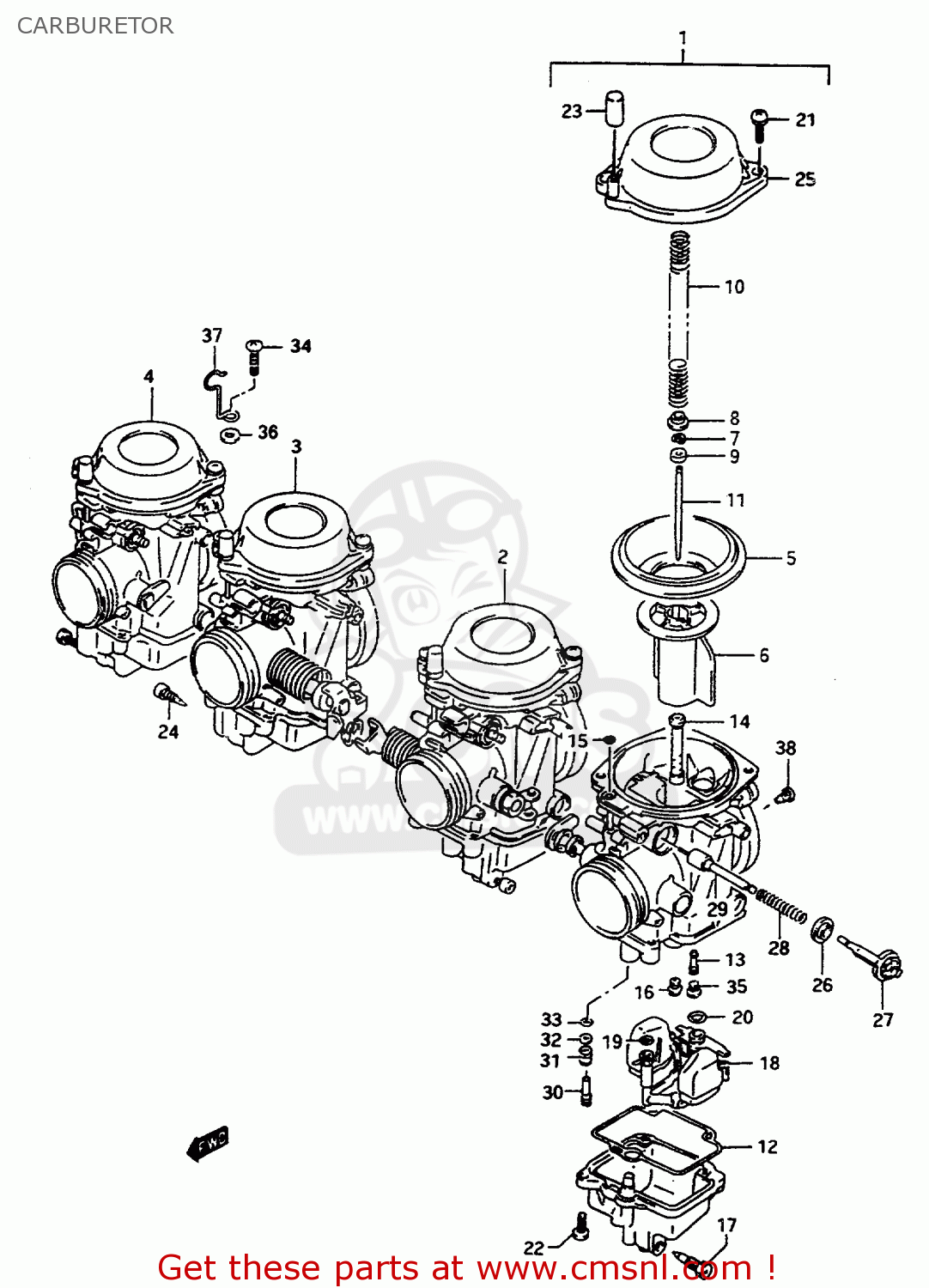

Carburetor diagram GSX600FU2 1997 (V) GERMANY (E22)
CARBURETOR GSX600FU2 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1320144CC0
ref: 1-1
CARBURETOR ASSY, LH
€ 428.50
1-2
1320144CD0
ref: 1-2
E17,E22
CARBURETOR ASSY, LH
€ 0.00
1-3
1320144CF0
ref: 1-3
GSX600FU2V E22
CARBURETOR ASSY, LH
€ 0.00
2-1
1320244CC0
ref: 2-1
CARBURETOR ASSY, ML
€ 390.00
2-2
1320244CD0
ref: 2-2
C17,E22
CARBURETOR ASSY, ML
€ 390.00
2-3
1320244CF0
ref: 2-3
GSX600FU2V E22
CARBURETOR ASSY, ML
€ 0.00
3-1
1320344CC0
ref: 3-1
CARBURETOR ASSY, MR
€ 390.00
3-2
1320344CD0
ref: 3-2
E17,E22
CARBURETOR ASSY, MR
€ 390.00
3-3
1320344CF0
ref: 3-3
GSX600FU2V E22
CARBURETOR ASSY, MR
€ 0.00
4-1
1320444CC0
ref: 4-1
CARBURETOR ASSY, RH
€ 390.00
4-2
1320444CD0
ref: 4-2
E17,E22
CARBURETOR ASSY, RH
€ 390.00
4-3
1320444CF0
ref: 4-3
GSX600FU2V E22
CARBURETOR ASSY,R
€ 0.00
5
1350717C01
ref: 5
DIAPHRAGM
€ 24.50
6-1
1350101D00
ref: 6-1
VALVE,PISTON
€ 69.00
6-2
1350144C10
ref: 6-2
VALVE,PISTON
€ 55.00
7
1339440D20
ref: 7
E RING
€ 4.50
8
1338242A00
ref: 8
RING
€ 3.50
9
1338747010
ref: 9
RING
€ 7.50
10
1341707C30
ref: 10
SPRING
€ 9.00
11
1338344C20
ref: 11
NEEDLE,JET
€ 13.00
12
1325844B00
ref: 12
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
13
0949232006
ref: 13
JET,PILOT(32.5)
€ 8.50
14-1
0949400763
ref: 14-1
JET,NEEDLE(P-3)
€ 23.00
14-2
0949400669
ref: 14-2
GSX600FU2V E22
JET,NEEDLE (P-2)
€ 34.50
15
1350917C00
ref: 15
O RING
€ 4.50
16-1
0949122015
ref: 16-1
LH,RH
JET,MAIN(112.5)
€ 11.00
16-2
0949122016
ref: 16-2
ML,MR
JET,MAIN(110)
€ 7.00
16-3
0949123011
ref: 16-3
GSX600FU2V E22
JET,MAIN(115)
€ 10.50
17
1324724500
ref: 17
LH,RH
PLUG,DRAIN
€ 12.00
18
1325044C00
ref: 18
FLOAT/NEEDLE VALVE ASSEMBLY
€ 124.50
19
1337446710
ref: 19
O RING
€ 4.50
20
1337444080
ref: 20
O-RING,NEEDLE VALVE
€ 6.00
21
0211275163
ref: 21
LH,ML,RH:2,MR:1
SCREW
€ 2.50
22
0211205127
ref: 22
SCREW
€ 2.50
23
1350817C00
ref: 23
CAP
€ 4.50
24
1324713A00
ref: 24
ML,MR
SCREW,DRAIN
€ 5.50
25
1350201D00
ref: 25
COVER,DIAPHRAGM
€ 36.00
26
1341817C00
ref: 26
CAP,STARTER
€ 5.00
27
1341817C10
ref: 27
HOLDER,GUIDE
€ 14.00
28
1341709110
ref: 28
SPRING
€ 6.00
29
1341101D00
ref: 29
PLUNGER ASSY
€ 28.50
30-1
1327947070
ref: 30-1
SCREW,PILOT
€ 11.50
30-2
1327947070
ref: 30-2
SCREW,PILOT
€ 11.50
31
1326847070
ref: 31
SPRING
€ 5.00
32
1329129900
ref: 32
WASHER
€ 2.00
33
1329529900
ref: 33
O RING,PILOT AIR SCREW
€ 4.00
34
0211205164
ref: 34
MR
SCREW
€ 2.00
35
1335734C00
ref: 35
PLUG
€ 4.50
36
0832201053
ref: 36
HR
WASHER
€ 2.50
37
1367120C20
ref: 37
MR
CLIP
€ 5.50
38
0949326004
ref: 38
JET,AIR(1.3)
€ 14.50
