RIDER HANDLE

GSX600FU2 1997 (V) GERMANY (E22)

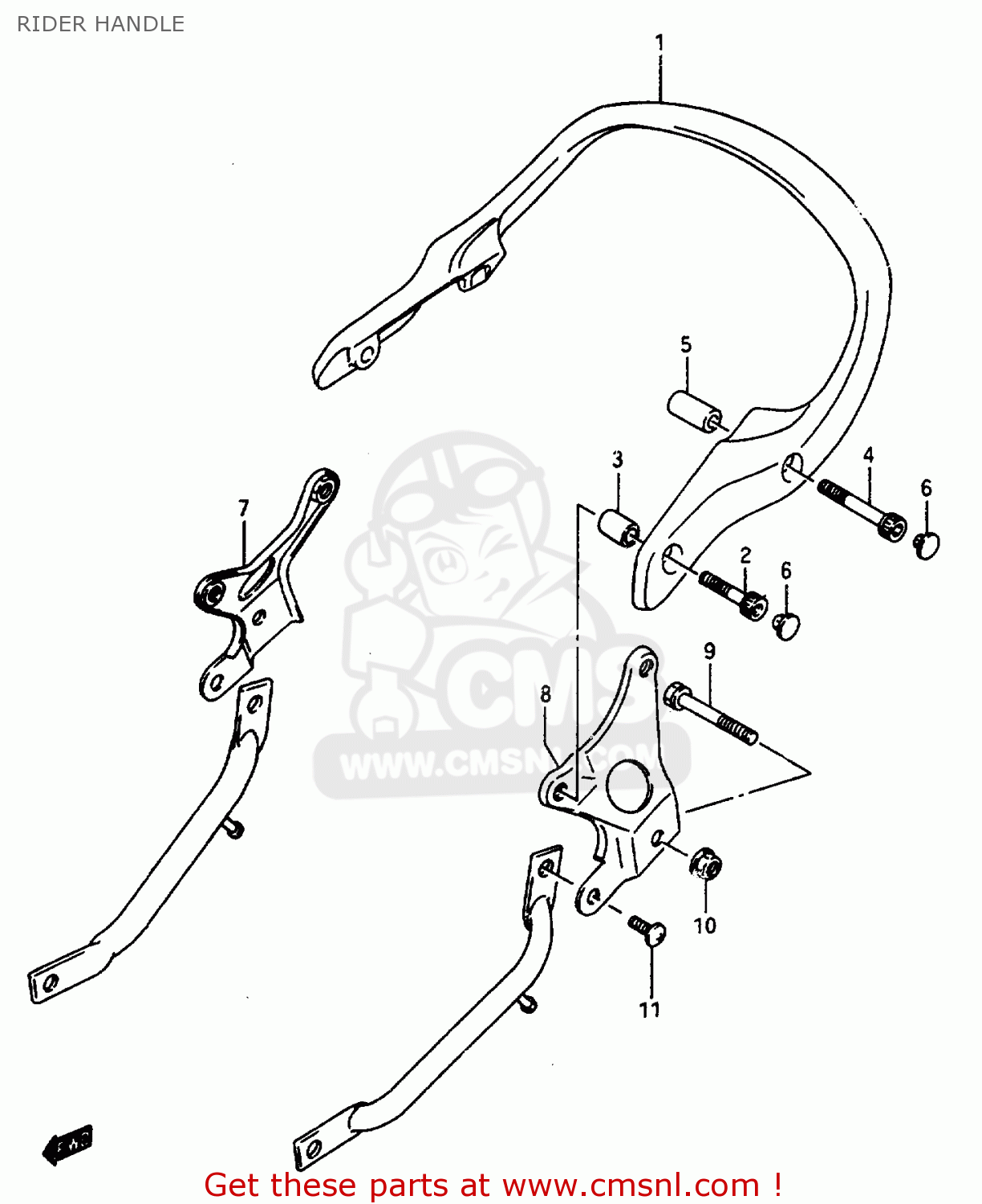

Rider handle diagram GSX600FU2 1997 (V) GERMANY (E22)

RIDER HANDLE GSX600FU2 1997 (V) GERMANY (E22)

RIDER HANDLE GSX600FU2 1997 (V) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

4621119C00019
ref: 1

HANDLE,PILLION RIDER

€ 111.50

2

0713008353
ref: 2

BOLT

€ 4.00

3

0918008205
ref: 3

SPACER(8.5X14X21.5)

€ 6.50

4

0713008553
ref: 4

BOLT

€ 3.50

5

0918008206
ref: 5

SPACER(8.5X14X28)

€ 9.00

6

0925006004
ref: 6

CAP(OD:14.5)

€ 1.50

7

4622019C01
ref: 7

BRACKET,PILLION RIDER HANDLE,R

€ 13.00

8

4623019C01
ref: 8

BRACKET,PILLION RIDER HANDLE,L

€ 11.50

9

0155008553
ref: 9

BOLT

€ 3.00

10

0831620083
ref: 10

NUT

€ 1.50

11

0214206203
ref: 11

SCREW

€ 2.00
