INSTALLATION PARTS
GSX600FU2 1997 (V) GERMANY (E22)

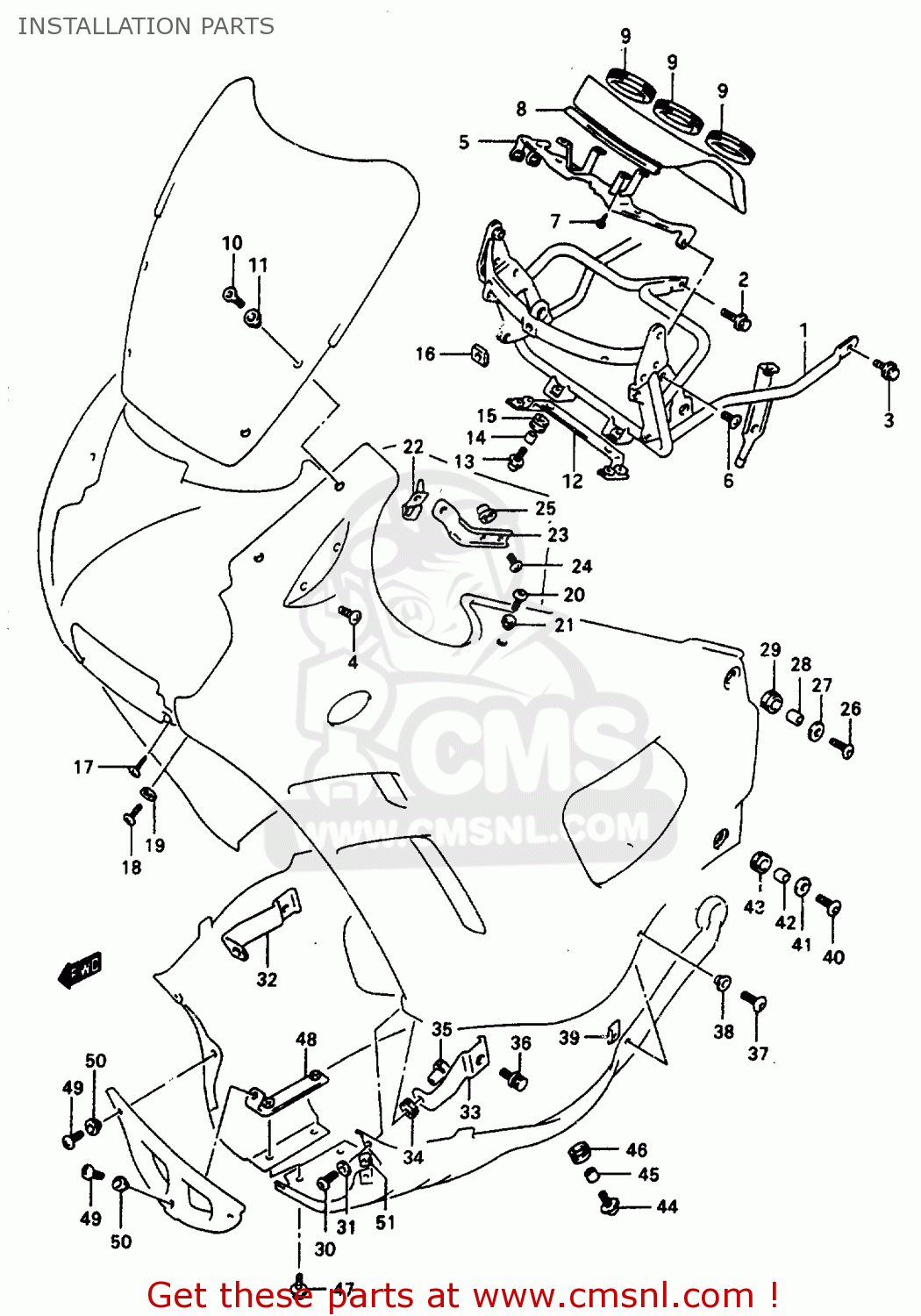

Installation parts diagram GSX600FU2 1997 (V) GERMANY (E22)
INSTALLATION PARTS GSX600FU2 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
9451020C20
ref: 1
BRACE,COWLING
€ 128.50
2
0910308266
ref: 2
BOLT(8X20)
€ 2.50
3
0155006123
ref: 3
BOLT
€ 2.50
4
0214206123
ref: 4
SCREW 6X12
€ 2.00
5
9452019C00
ref: 5
PLATE,METER FITING
€ 31.50
6
0214206123
ref: 6
SCREW 6X12
€ 2.00
7
0354105083
ref: 7
SCREW 5X8
€ 2.00
8
9452719C00
ref: 8
MOLDING,METER COVER
€ 3.00
9
9442619C00
ref: 9
CUSHION,METER COVER
€ 6.00
10
0913905022
ref: 10
SCREW
€ 2.50
11
0916105002
ref: 11
WASHER
€ 2.00
12
9446019C00
ref: 12
PLATE,COWL CTR PANEL
€ 12.00
13
0913606081
ref: 13
SCREW(6X20)
€ 3.00
14
0918006317
ref: 14
SPACER (6.5X10X9.4)
€ 2.00
15
0932010015
ref: 15
CUSHION
€ 2.50
16
9463819C00
ref: 16
CUSHION,SCREEN
€ 2.50
17
0214205123
ref: 17
SCREW 5X12
€ 1.50
18
0913906029
ref: 18
SCREW(6X25)
€ 5.00
19
0916006006
ref: 19
WASHER
€ 2.00
20
0913906030
ref: 20
SCREW(6X16)
€ 3.50
21
0916106021
ref: 21
WASHER(6.3X16X1.5)
€ 2.50
22
9456019C00
ref: 22
BRACKET,COWLING UPR,R
€ 40.50
23
9457019C00
ref: 23
BRACKET,COWLING UPR,L
€ 40.50
24
0214206253
ref: 24
SCREW
€ 1.50
25
9457319C00
ref: 25
NUT,COWLING SIDE BRKT
€ 8.00
26
0913906029
ref: 26
SCREW(6X25)
€ 5.00
27
0916006006
ref: 27
WASHER
€ 2.00
28
0918006263
ref: 28
SPACER(6.5X9X9)
€ 2.00
29
0932009016
ref: 29
CUSHION
€ 2.50
30
0913906042
ref: 30
SCREW(6X30)
€ 7.50
31
0916006006
ref: 31
WASHER
€ 2.00
32
9453119C00
ref: 32
BRACKET,COWLING LWR,R
€ 8.00
33
9453219C00
ref: 33
BRACKET,COWLING LWR,L
€ 6.00
34
0932010015
ref: 34
CUSHION
€ 2.50
35
9459019C00
ref: 35
NUT,COWLING,FR
€ 8.00
36
0158006163
ref: 36
BOLT
€ 2.50
37
0913905025
ref: 37
SCREW(5X14)
€ 2.00
38
0916105017
ref: 38
WASHER(5.2X14X1.5)
€ 3.00
39
9448432B00
ref: 39
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
40
0913906029
ref: 40
SCREW(6X25)
€ 5.00
41
0916006006
ref: 41
WASHER
€ 2.00
42
0918006097
ref: 42
SPACER(6.1X9X12.3)
€ 5.50
43
0932009016
ref: 43
CUSHION
€ 2.50
44
0913606081
ref: 44
SCREW(6X20)
€ 3.00
45
0918006263
ref: 45
SPACER(6.5X9X9)
€ 2.00
46
0932009016
ref: 46
CUSHION
€ 2.50
47
0214205163
ref: 47
SCREW
€ 2.50
48
9458019C00
ref: 48
BRACKET,FR UNDER COWL
€ 6.50
49
0214205163
ref: 49
SCREW
€ 2.50
50
0916105017
ref: 50
WASHER(5.2X14X1.5)
€ 3.00
51
9448432B00
ref: 51
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
