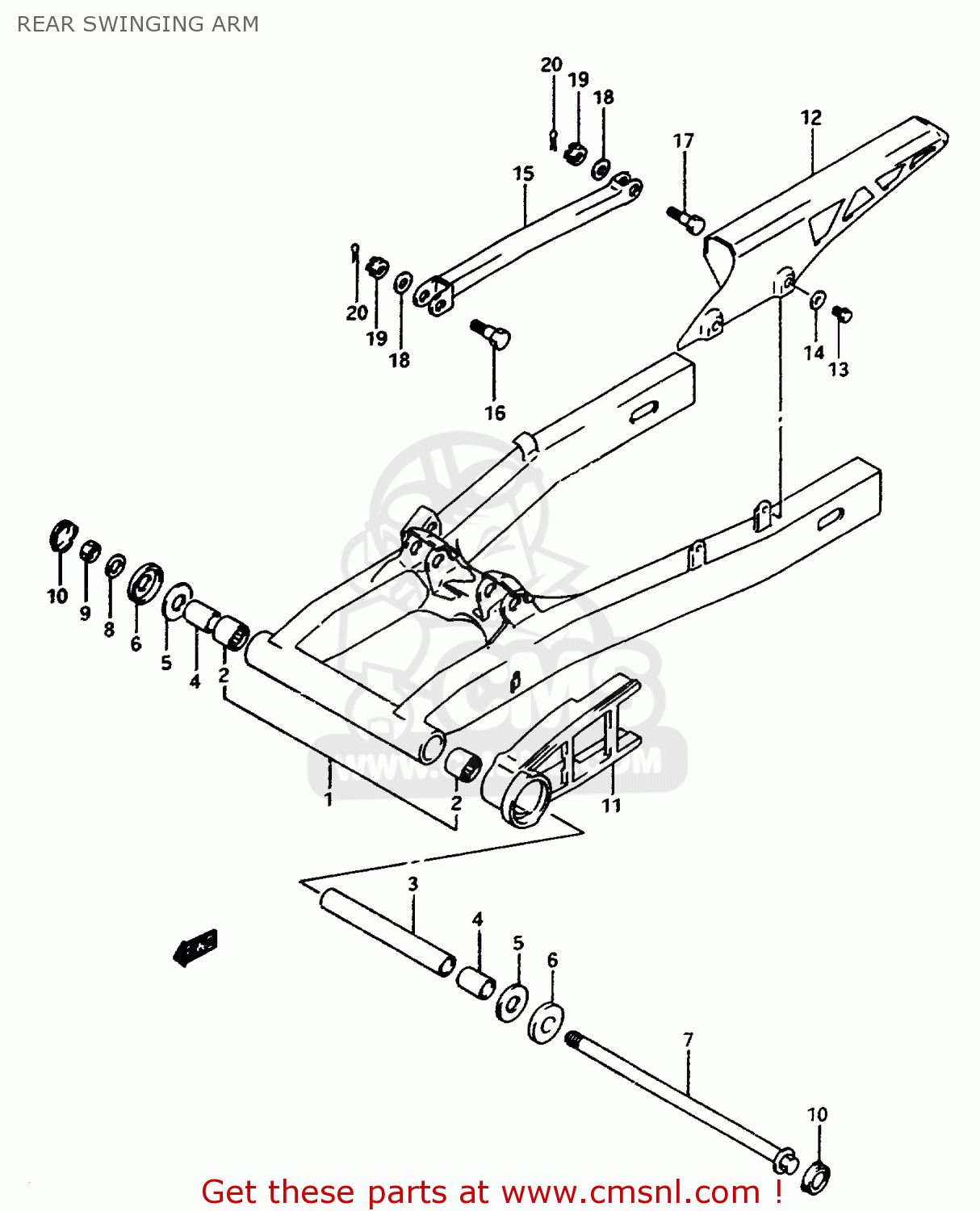

REAR SWINGING ARM

ref

part #

description

quantity

1

6100019C1013L
ref: 1

SWINGINGARM ASSY,RR

€ 456.50

2

0926322017
ref: 2

BEARING(22X29X30)

€ 18.50

3

6128219C00
ref: 3

SPACER,RR SWGARM PIVOT CTR

€ 16.50

4

6125145001
ref: 4

SPACER,RR SWGARM PIVOT

€ 12.50

5

0821114341
ref: 5

WASHER

€ 3.00

6

6126245002
ref: 6

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

7

6121119C00
ref: 7

SHAFT,REAR SWING ARM PIVOT

€ 19.50

8

0916014015
ref: 8

WASHER(14X27X3)

€ 4.00

9

0915914019
ref: 9

NUT

€ 8.50

10

6122243400
ref: 10

CAP,SWINGINGARM PIVOT

€ 4.00

11

6127320C00
ref: 11

BUFFER,CHAIN TOUCH DEFENSE

€ 24.50

12

6131027A01
ref: 12

CASE,CHAIN

€ 48.00

13

0214206123
ref: 13

SCREW 6X12

€ 2.00

14

0916906026
ref: 14

WASHER

€ 2.00

15

6431019C00
ref: 15

TORQUE LINK,REAR

€ 20.50

16

0911110016
ref: 16

BOLT(10X41)

€ 6.50

17

0910110036
ref: 17

BOLT(10X35)

€ 4.50

18

0916010069
ref: 18

WASHER (10X18X3.2)

€ 2.00

19

0831440103
ref: 19

NUT

€ 2.50

20

0411120208
ref: 20

PIN 20X20

€ 1.50
