SEAT

GSX600FU2 1997 (V) GERMANY (E22)

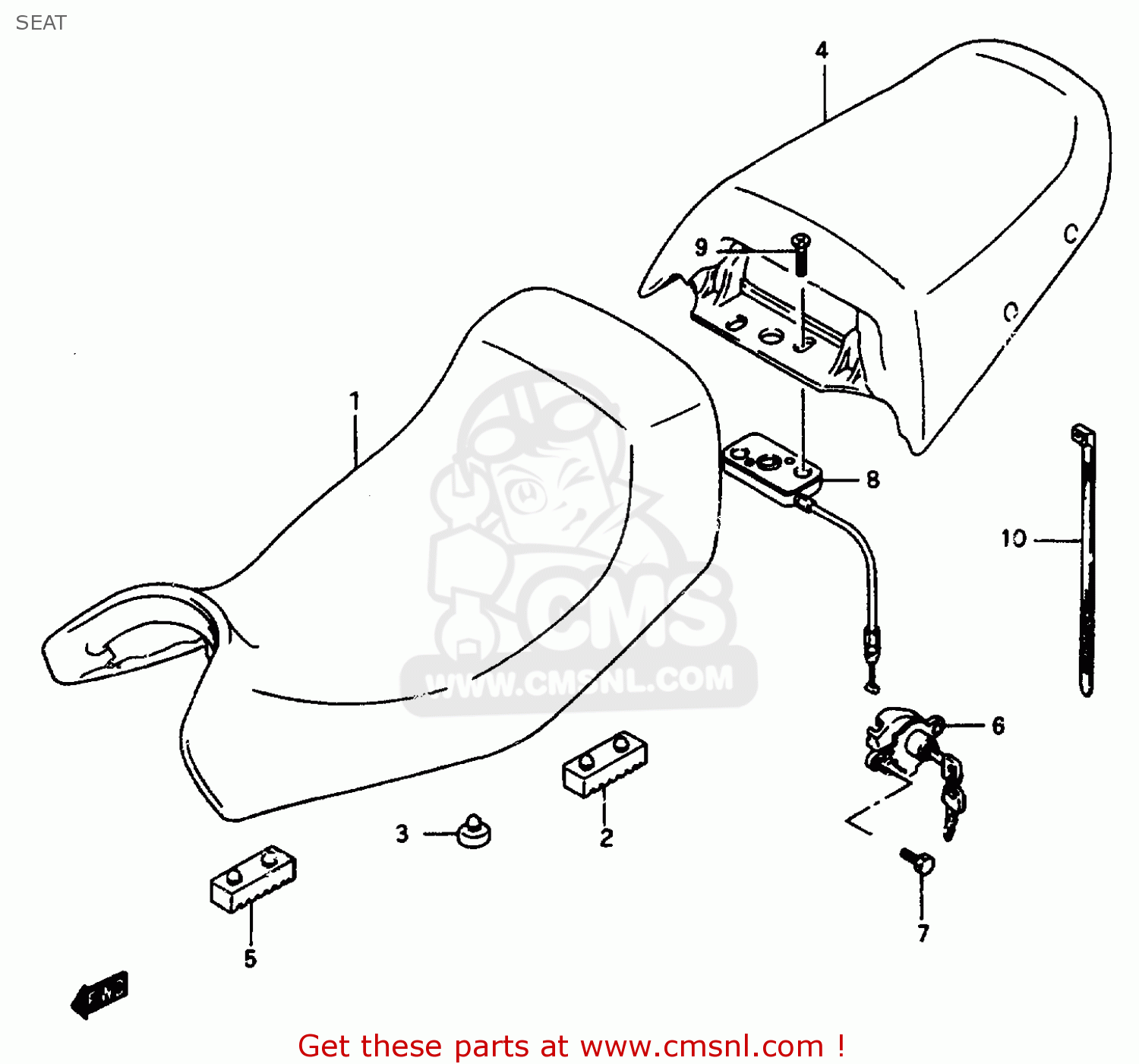

Seat diagram GSX600FU2 1997 (V) GERMANY (E22)

SEAT GSX600FU2 1997 (V) GERMANY (E22)

SEAT GSX600FU2 1997 (V) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

4510019C0058R
ref: 1

SEAT SET

€ 359.00

2

4514943500
ref: 2

CUSHION,SEAT

€ 3.00

3

0932110012
ref: 3

CUSHION

€ 3.00

4

4530019C0058R
ref: 4

SEAT SET,PILLION

€ 99.50

5

4514931300
ref: 5

CUSHION,SEAT(40X20X15)

€ 2.00

6

4570019840
ref: 6

LOCK SET,SEAT

€ 59.50

7

0157006163
ref: 7

BOLT

€ 2.50

8

4522019C00
ref: 8

BRACKET,SEAT SUPPORT RR

€ 22.50

9

0212206303
ref: 9

SCREW

€ 2.00

10

0940718403
ref: 10

CLAMP L:165

€ 2.50
