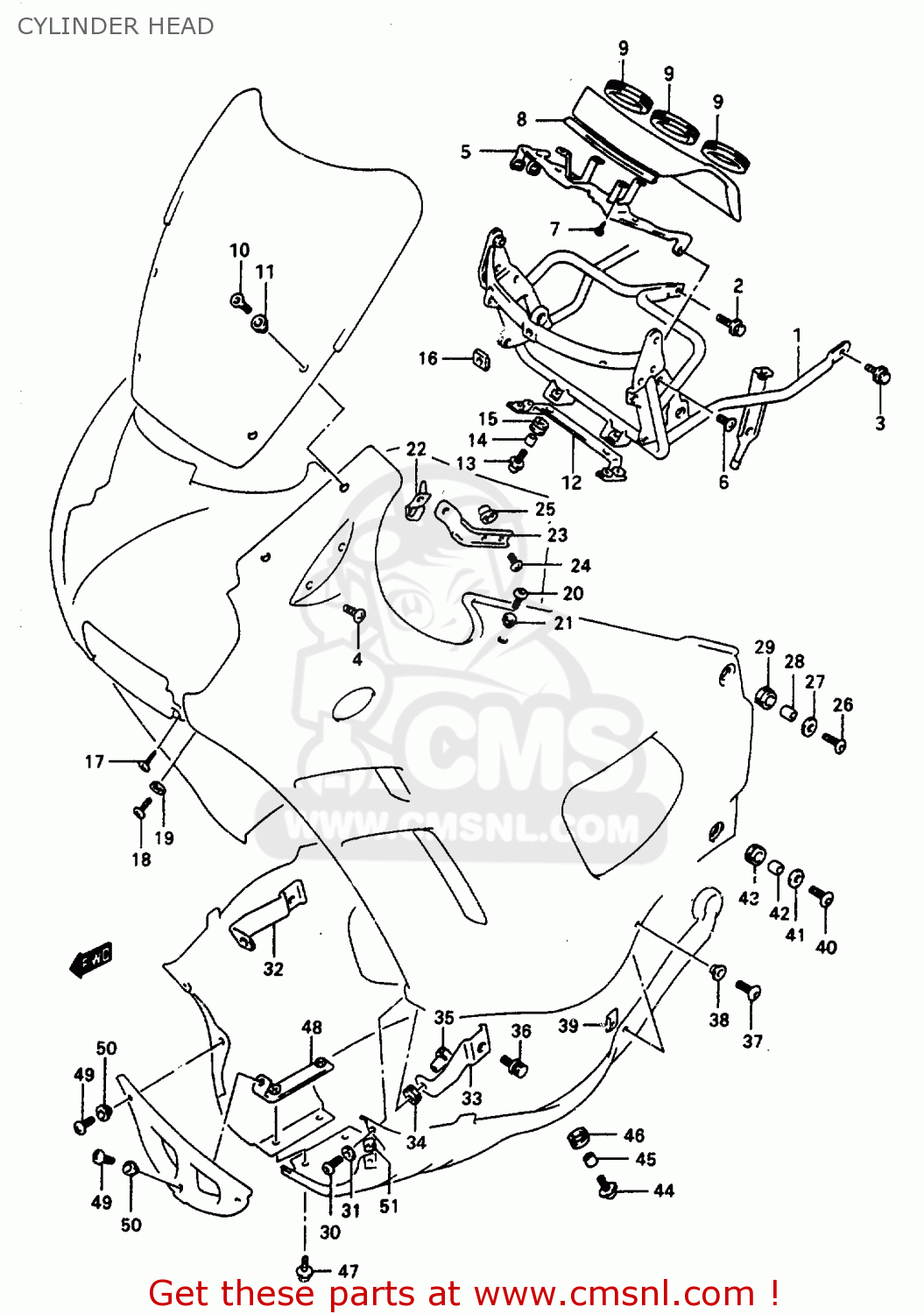

CYLINDER HEAD

ref

part #

description

quantity

1

1110019E20
ref: 1

HEAD ASSEMBLY,CYLINDER

€ 1,356.50

2

1111618D70
ref: 2

GUIDE,VALVE

€ 19.00

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0910306026
ref: 4

BOLT(6X39)

€ 2.00

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

1114119C03
ref: 6

GASKET,CYLINDER HEAD (NAS)

€ 63.00

7

0928012013
ref: 7

O RING(D:2.6,ID:12.1)

€ 7.50

8

0421111189
ref: 8

PIN

€ 2.00

9

0155006303
ref: 9

BOLT

€ 2.50

10

0915910054
ref: 10

NUT

€ 7.50

11

0831610103
ref: 11

NUT

€ 2.00

12

0916810031
ref: 12

GASKET(10.2X20X2).3 (NAS)

€ 2.00

13

0916010060
ref: 13

WASHER (10.5X22X2.3)

€ 2.50

14

1113127A00
ref: 14

PIPE,OIL NO.1

€ 6.00

15

1113327A00
ref: 15

PIPE,OIL NO.3

€ 7.00

16

1113527A02
ref: 16

PLATE,OIL PIPE,R

€ 4.00

17

1113627A02
ref: 17

PLATE,OIL PIPE,L

€ 4.00

18

0155006123
ref: 18

BOLT

€ 2.50

19-1

0948200410
ref: 19-1

PLUG,SPARK(CR9EK)

€ 10.50

19-2

0948200411
ref: 19-2

PLUG,SPARK(U27ETR)

€ 8.50

19-3

0948200412
ref: 19-3
OPT

PLUG,SPARK(CR8EK)

€ 11.00

19-4

0948200413
ref: 19-4
OPT

PLUG,SPARK(U24ETR)

€ 11.00

19-5

0948200462
ref: 19-5
OPT

PLUG,SPARK(CR10EK)

€ 10.50

19-6

0948200463
ref: 19-6
OPT

PLUG,SPARK(U31ETR)

€ 10.50

20

1310119C12
ref: 20

PIPE ASSY,INTAKE NO.1

€ 39.50

21

1310219C12
ref: 21

PIPE ASSY,INTAKE NO.2

€ 37.50

22

1310319C12
ref: 22

PIPE ASSY,INTAKE NO.3

€ 37.50

23

1310419C12
ref: 23

PIPE ASSY,INTAKE NO.4

€ 37.00

24

0928040010
ref: 24

O RING(D:2.4,ID:39.7)

€ 3.50

25

0940252208
ref: 25

CLAMP

€ 5.50

26

0211216163
ref: 26

SCREW

€ 2.00

27

0924814010
ref: 27

PLUG

€ 5.00

28

0916814002
ref: 28

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

all assemblies
