FRONT BRAKE HOSE

GSX600FU2 1997 (V) GERMANY (E22)

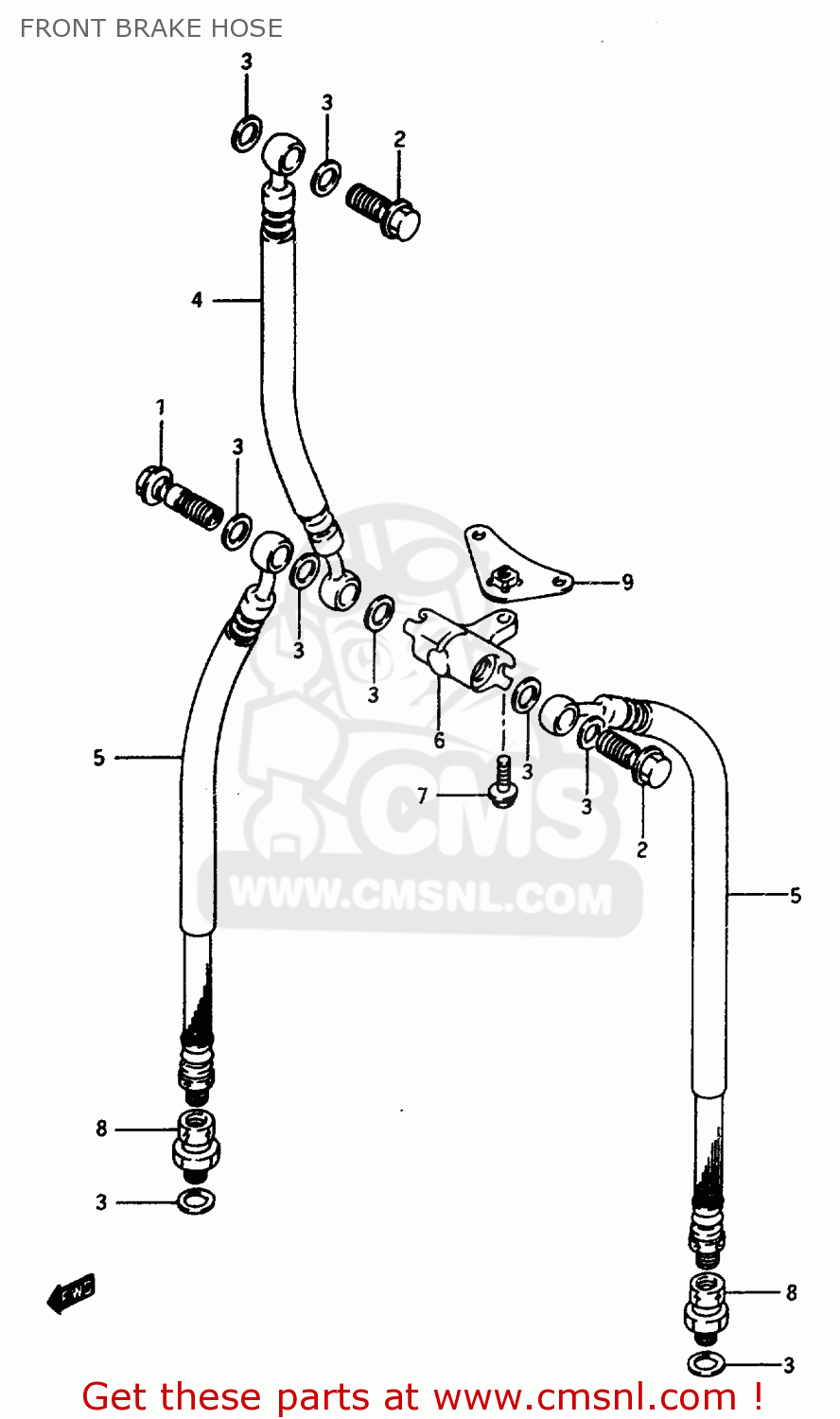

Front brake hose diagram GSX600FU2 1997 (V) GERMANY (E22)

FRONT BRAKE HOSE GSX600FU2 1997 (V) GERMANY (E22)

FRONT BRAKE HOSE GSX600FU2 1997 (V) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

0936010043
ref: 1

BOLT UNION

€ 6.50

2

0936010041
ref: 2

BOLT UNION

€ 6.50

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5948019C10
ref: 4

HOSE,FR BRAKE NO.1

€ 59.50

5

5924019C10
ref: 5

HOSE,FR BRAKE NO.2

€ 48.00

6

5949145001
ref: 6

JOINT,BRAKE HOSE

€ 29.00

7

0155006203
ref: 7

BOLT

€ 2.50

8

5929043500
ref: 8

ADAPTER,BRAKE HOSE

€ 34.50

9

5939019C00
ref: 9

PLATE,FRONT BRAKE JOINT

€ 3.00
