TURN SIGNAL LAMP
GSX600FU2 1997 (V) GERMANY (E22)

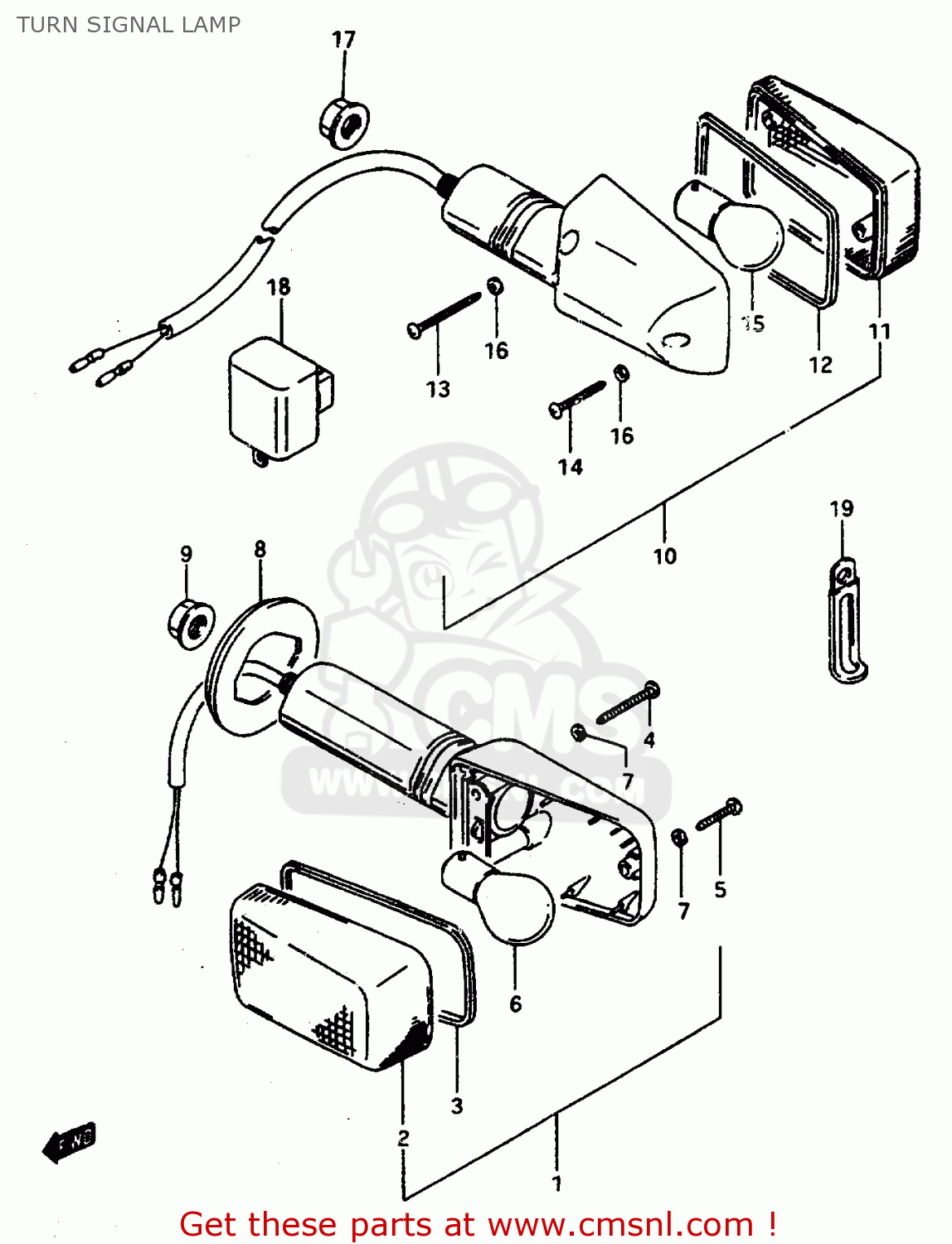

Turn signal lamp diagram GSX600FU2 1997 (V) GERMANY (E22)
TURN SIGNAL LAMP GSX600FU2 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3560101D10
ref: 1
LAMP ASSY,FR TURN SIGNAL
€ 70.50
2
3561217C20
ref: 2
LENS
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
€ 1.50
5
3572540511
ref: 5
SCREW
€ 1.50
6
0947112045
ref: 6
BULB(12V21W)
€ 5.00
7
3562727A02
ref: 7
GASKET (NAS)
€ 1.50
8
3567427A01
ref: 8
GROMMET
€ 13.50
9
0831610103
ref: 9
NUT
€ 2.00
10-1
3560314D10
ref: 10-1
E2,E25,E34
LAMP ASSY,RR TURNSIGNAL
€ 88.00
10-2
3560314D20
ref: 10-2
E17,E22
LAMP ASSY,RR TURNSIGNAL
€ 74.00
11
3565217C20
ref: 11
LENS
€ 6.50
12
3561327A00
ref: 12
GASKET (NAS)
€ 3.00
13
3562327A00
ref: 13
SCREW(3X30)
€ 1.50
14
3572540511
ref: 14
SCREW
€ 1.50
15
0947112045
ref: 15
BULB(12V21W)
€ 5.00
16
3562727A02
ref: 16
GASKET (NAS)
€ 1.50
17
0831610103
ref: 17
NUT
€ 2.00
18
3861045D01
ref: 18
RELAY ASSY,TURNSIGNAL LAMP
€ 68.50
19
0940406429
ref: 19
CLAMP(L:45)
€ 2.50
