CARBURETOR

GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

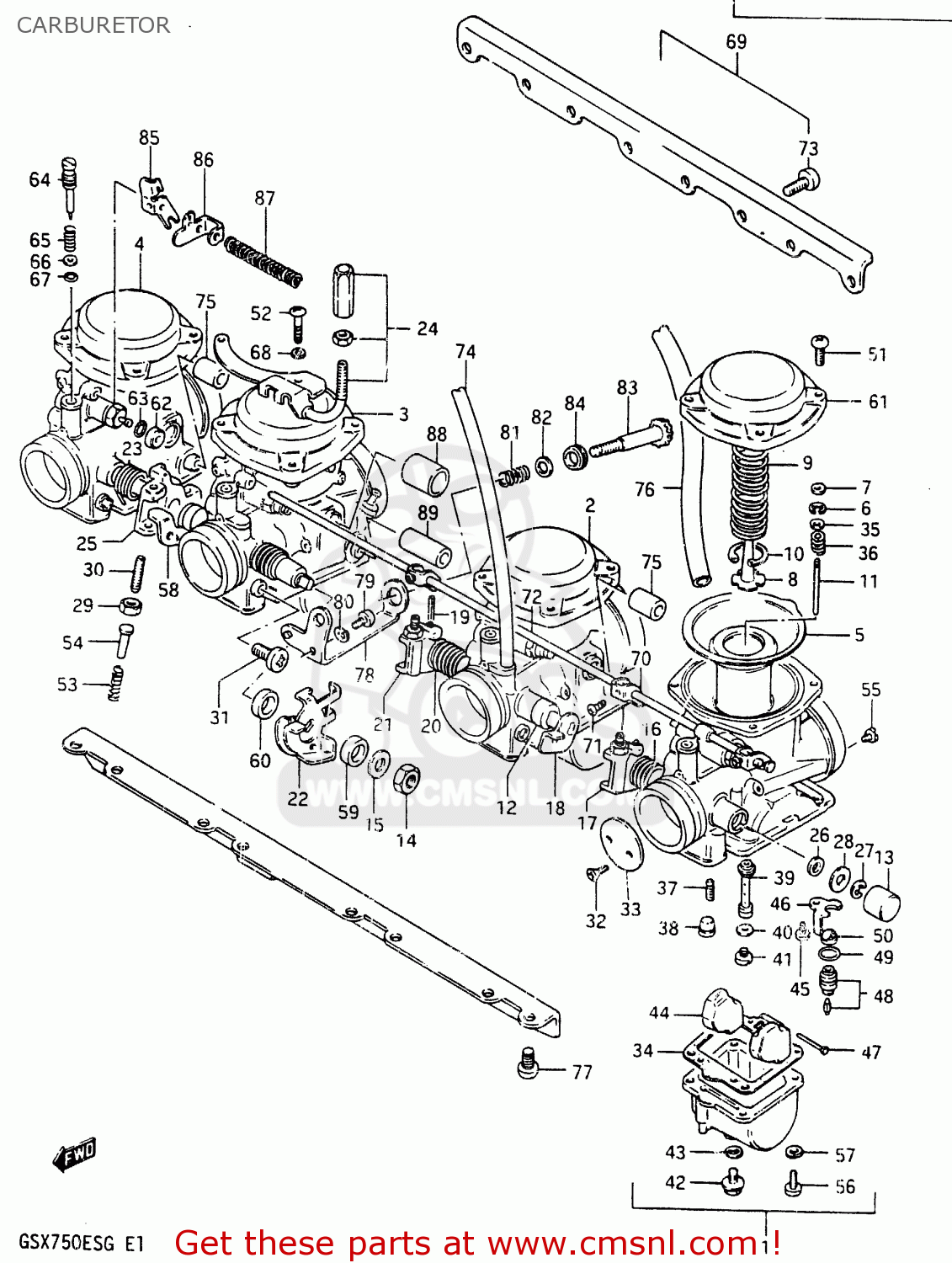

Carburetor diagram GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

CARBURETOR GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
CARBURETOR GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
CARBURETOR GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1320131360
ref: 1
CARBURETOR, LH
€ 0.00
1
1320131320
ref: 1
E18
CARBURETOR, LH
€ 181.50
2
1320231360
ref: 2
CARBURETOR, ML
€ 0.00
2
1320231320
ref: 2
E18
CARBURETOR, ML
€ 0.00
3
1320331360
ref: 3
CARBURETOR, MR
€ 0.00
3
1320331320
ref: 3
E18
CARBURETOR, MR
€ 0.00
4
1320431360
ref: 4
CARBURETOR, RH
€ 0.00
4
1320431320
ref: 4
E18
CARBURETOR, RH
€ 0.00
5
1350031300
ref: 5
DIAPHRAGM,CARBURETOR
1350031300
€ 184.50
6
1339431210
ref: 6
CLIP,NEEDLE
1339431210
€ 3.50
7
1338744030
ref: 7
RING
1338744030
€ 5.00
8
1338944030
ref: 8
HOLDER,GUIDE
1338944030
€ 10.50
9
1350331300
ref: 9
SPRING,DIAPHRAGM
1350331300
€ 8.00
10
1358144030
ref: 10
E RING
1358144030
€ 6.50
11
1338345410
ref: 11
NEEDLE,JET
1338345410
€ 15.00
11
1338331310
ref: 11
E18
NEEDLE, JET (5D10-3)
€ 13.00
12
1355749200
ref: 12
ML,MR
GASKET
1355749200
€ 7.00
13
1357847070
ref: 13
RH,LH
CAP
1357847070
€ 5.50
14
0831022086
ref: 14
MR
NUT
€ 1.50
15
1360647070
ref: 15
MR
WASHER
1360647070
€ 3.00
16
1357347070
ref: 16
LH
SPRING,THROTTLE SHAFT
1357347070
€ 6.00
17
1355047070
ref: 17
LH
SHAFT,THROTTLE
1355047070
€ 44.50
18
1355045400
ref: 18
ML
SHAFT,THROTTLE
€ 0.00
19
1356347070
ref: 19
ML
PIN,THROTTLE SHAFT
€ 0.00
20
1357345110
ref: 20
ML
SPRING,THROTTLE SHAFT
€ 0.00
21
1355347070
ref: 21
ML
LEVER,THROTTLE SHAFT
€ 0.00
22
1355547070
ref: 22
MR
LEVER ASSEMBLY,THROTTLE
€ 0.00
23
1357347080
ref: 23
MR,RH
SPRING,THROTTLE SHAFT
€ 0.00
24
1362131300
ref: 24
MR
BRACKET,THROTTLE CABLE
€ 14.50
25
1355047090
ref: 25
RH
SHAFT,THROTTLE
€ 0.00
26
1355631210
ref: 26
SEAL
€ 4.00
27
1361744080
ref: 27
LH,RH
E RING
1361744080
€ 3.50
28
1355747070
ref: 28
LH,RH
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
29
1360747070
ref: 29
LH,ML,RH
NUT
1360747070
€ 4.00
30
1360547080
ref: 30
LH,ML,RH
SCREW
1360547080
€ 7.00
31
1360573000
ref: 31
MR
SCREW
1360573000
€ 10.50
32
1360444080
ref: 32
SCREW
1360444080
€ 3.50
33
1355147090
ref: 33
VALVE,THROTTLE (BUTTERFLY)
€ 17.00
34
1325144080
ref: 34
GASKET,FLOAT CHAMBER (NAS)
1325144080
€ 9.50
35
1338244030
ref: 35
WASHER
1338244030
€ 3.50
36
1338844030
ref: 36
SPRING
1338844030
€ 6.00
37
0949245016
ref: 37
JET,PILOT(45)
0949245016
€ 12.00
37
0949240014
ref: 37
E18
JET(40)
0949240014
€ 8.50
38
1335744080
ref: 38
PLUG,NEEDLE JET
1335744080
€ 4.50
39
0949400473
ref: 39
JET,NEEDLE(Y-7)
€ 19.50
39
0949400416
ref: 39
E18
JET, NEEDLE (Y-7)
€ 17.00
40
1333244080
ref: 40
WASHER,NEEDLE NOZZLE
€ 2.50
41
0949123017
ref: 41
JET,MAIN(117.5)
0949123017
€ 11.00
41
0949124005
ref: 41
E18
JET
0949124005
€ 11.50
42
1324744080
ref: 42
PLUG,DRAIN
1324744080
€ 9.50
43
1324644080
ref: 43
GASKET (NAS)
1324644080
€ 3.50
44
1325044080
ref: 44
FLOAT
1325044080
€ 31.00
45
0211204066
ref: 45
SCREW
€ 2.00
46
1337311400
ref: 46
PLATE,NEEDLE VALVE FITING
1337311400
€ 7.00
47
1325492311
ref: 47
PIN,FLOAT
1325492311
€ 2.00
48
1337011400
ref: 48
VALVE ASSEMBLY,NEEDLE
1337011400
€ 40.50
49
1337444080
ref: 49
O-RING,NEEDLE VALVE
1337444080
€ 6.00
50
1337665010
ref: 50
FILTER
€ 6.50
51
1360234390
ref: 51
LH:4,ML:4,MR:2,RH:4
SCREW
1360234390
€ 2.50
52
0211205166
ref: 52
MR:2
SCREW
€ 2.00
53
1326844010
ref: 53
LH,ML,RH
SPRING,THROTTLE SCREW
1326844010
€ 3.00
54
1357547070
ref: 54
LH,ML,RH
PIN,THROTTLE LEVER
1357547070
€ 2.50
55
0949338001
ref: 55
JET,AIR(190)
0949338001
€ 9.00
55
0949330005
ref: 55
E18
JET,AIR
0949330005
€ 17.00
56
0211205166
ref: 56
SCREW
€ 2.00
57
0832121056
ref: 57
LOCK WASHER
0832121056
€ 3.00
58
1355045410
ref: 58
MR
SHAFT,THROTTLE
€ 0.00
59
1357445110
ref: 59
MR
RING
€ 3.50
60
1357445120
ref: 60
MR
RING
€ 2.50
61
1350234390
ref: 61
COVER
€ 29.00
62
1368231210
ref: 62
CAP,STARTER VALVE
1368231210
€ 5.00
63
1327847090
ref: 63
O RING
1327847090
€ 2.00
64
1327947080
ref: 64
SCREW,PILOT AIR
1327947080
€ 11.50
64
1327947080
ref: 64
E18
SCREW,PILOT AIR
1327947080
€ 11.50
65
1326847070
ref: 65
SPRING
1326847070
€ 5.00
66
1327744080
ref: 66
GASKET
€ 2.00
67
1327844080
ref: 67
O-RING
€ 4.00
68
0832121056
ref: 68
MR:2
LOCK WASHER
0832121056
€ 3.00
69
1321031300
ref: 69
FLANGE ASSEMBLY,CARBURETOR
€ 0.00
70
1342244080
ref: 70
LEVER
1342244080
€ 10.00
71
1360509300
ref: 71
SCREW,THROTTLE ADJUST
1360509300
€ 3.50
72
1341045400
ref: 72
SHAFT,STARTER
€ 0.00
73
0211205126
ref: 73
SCREW 5X12
€ 1.50
74
1368345050
ref: 74
L:390->180
HOSE 4.5X8X390
€ 14.00
75
1368531300
ref: 75
NIPPLE,CARBURETOR
1368531300
€ 14.50
76
1368311420
ref: 76
HOSE
€ 13.00
77
0211206126
ref: 77
SCREW
0211206126
€ 1.50
78
1362744110
ref: 78
BRACKET,THROTTLE ADJUST
€ 12.50
79
0211205106
ref: 79
SCREW 5X10
€ 2.00
80
0832121056
ref: 80
LOCK WASHER
0832121056
€ 3.00
81
1327137100
ref: 81
SPRING
€ 4.50
82
1343234390
ref: 82
WASHER
€ 1.50
83
1326734390
ref: 83
ADJUSTER
1326734390
€ 15.50
84
1327634390
ref: 84
BUSH
1327634390
€ 6.00
85
1341349220
ref: 85
LEVER,CHOKE CABLE
€ 4.00
86
1342149220
ref: 86
PLATE,CHOKE CABLE
1342149220
€ 3.00
87
1343749220
ref: 87
SPRING,CHOKE CABLE
€ 0.00
88
1368344080
ref: 88
L:250->18
HOSE
€ 26.00
89
1368531310
ref: 89
NIPPLE,CARBURETOR
1368531310
€ 18.00
