HEADLAMP (GSX750EF)

GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

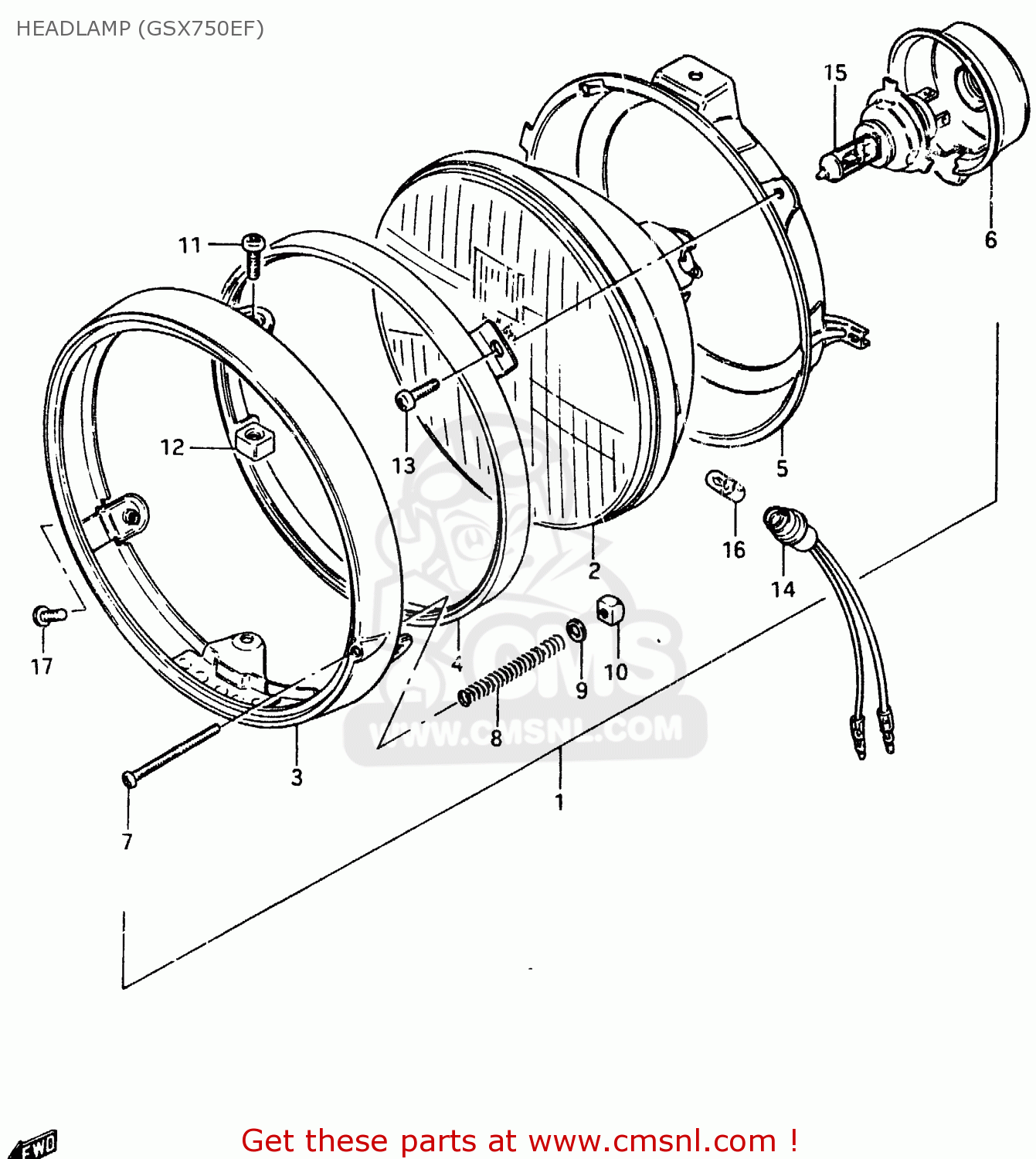

Headlamp (gsx750ef) diagram GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

prices are in EUR

ref

part #

description

quantity

3510045930999
ref: 1
E1,E24

HEADLAMP ASSEMBLY

€ 140.50

3510045920999
ref: 1
E2

HEADLAMP ASSY

€ 0.00

3510045950999
ref: 1
E21

HEADLAMP ASSY

€ 125.00

3512145930
ref: 2
E1,E24

LAMP UNIT

€ 151.00

3512145920
ref: 2
E2

UNIT

€ 164.50

3512145950
ref: 2
E21

LAMP UNIT

€ 171.00

3511145900
ref: 3

RIM

€ 69.50

3512745900
ref: 4

RETAINER

€ 30.50

3513045900
ref: 5

RING,MOUNTING

€ 126.00

3517349200
ref: 6

COVER,HEADLAMP SOCKET

€ 12.50

3515145950
ref: 7

SCREW

€ 1.50

3515445900
ref: 8

SPRING,HEADLAMP ADJUST

€ 3.50

3515727630
ref: 9

WASHER

€ 2.50

3513545600
ref: 10

NUT

€ 3.00

0211205128
ref: 11

SCREW

€ 2.50

3513545900
ref: 12

NUT

€ 2.50

0211204088
ref: 13

SCREW

€ 1.50

3611845900
ref: 14
E2,E21

SOCKET,PARKING

€ 13.00

0947112060
ref: 15

BULB(12V60/55W,H4)

€ 8.00

0947112063
ref: 16
E2,E21

BULB(12V4W)

€ 6.00

0912705013
ref: 17

SCREW(5X12)

€ 2.50
