HEADLAMP HOUSING - FRONT FENDER

GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

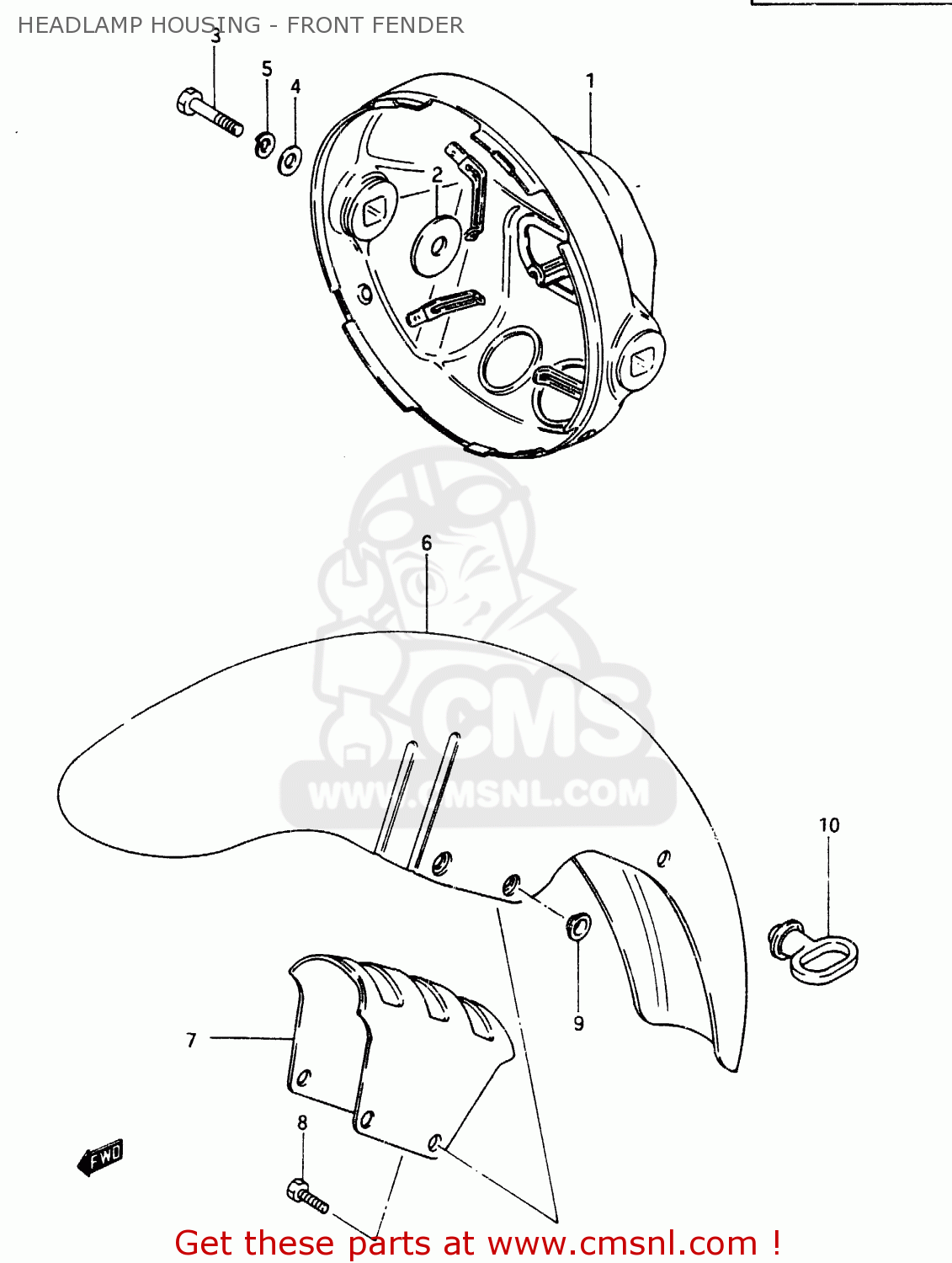

Headlamp housing - front fender diagram GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

prices are in EUR

ref

part #

description

quantity

5181045900019
ref: 1
GSX750EF

HOUSING,HEADLAMP(BLACK)

€ 139.00

0916008002
ref: 2
GSX750EF

WASHER (8.5X29X1.6)

€ 2.00

0120408307
ref: 3
GSX750EF

BOLT

€ 2.50

0832211088
ref: 4
GSX750EF

WASHER

€ 2.00

0832121088
ref: 5
GSX750EF

LOCK WASHER

€ 2.00

531113130022R
ref: 6
MODEL F

FENDER, FRONT (WHITE)

€ 116.50

531113130020G
ref: 6
MODEL G

FENDER, FRONT (GRAY)

€ 116.50

531113130022P
ref: 6
MODEL G

FENDER, FRONT (RED)

€ 116.50

531113133022R
ref: 6
MODEL F E22

FENDER, FRONT (WHITE)

€ 116.50

531113133020G
ref: 6
MODEL G E22

FENDER,FR

€ 116.50

531113133022P
ref: 6
MODEL G E22

FENDER,FR

€ 116.50

5311431300
ref: 7

BRACE,FRONT FENDER

€ 17.00

0110708168
ref: 8

BOLT

€ 2.00

0916908032
ref: 9

WASHER

€ 11.50

5862121203A
ref: 10

GUIDE,CABLE

€ 7.50
