Buy Suzuki GSX Parts Online


COWLING (GSX750EFF)

GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

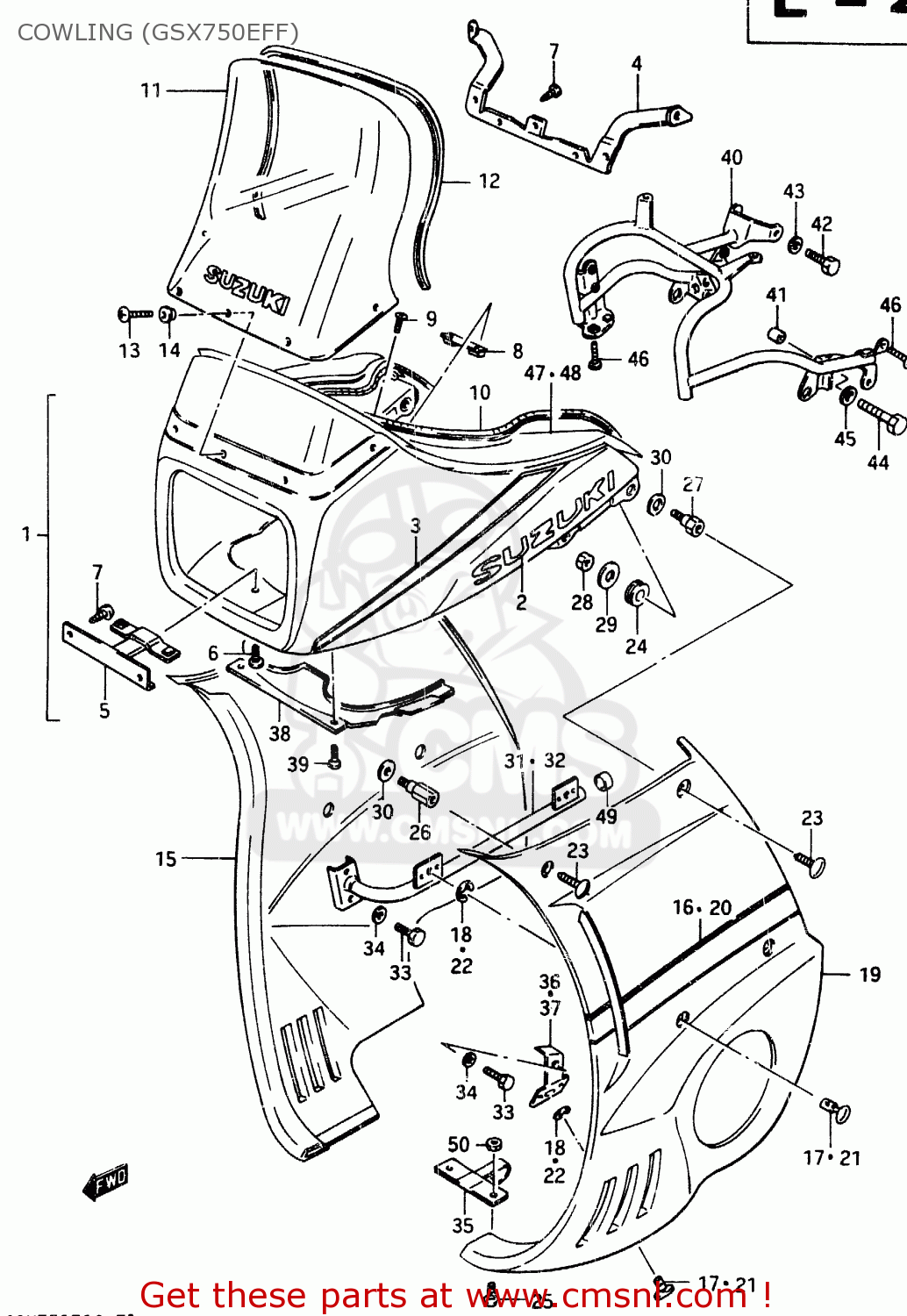

Cowling (gsx750eff) diagram GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

COWLING (GSX750EFF) GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
COWLING (GSX750EFF) GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
COWLING (GSX750EFF) GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
94400313907JJ
ref: 1
COWLING ASSY (WHITE/RED)
€ 745.00
1
94400313907JH
ref: 1
COWLING ASSY (WHITE/BLUE)
€ 745.00
2
681124340022R
ref: 2
EMBLEM
681124340022R
€ 9.50
3
68190313507JJ
ref: 3
FOR 7JJ
TAPE SET
€ 0.00
3
68190313507JH
ref: 3
FOR 7JH
TAPE SET
€ 0.00
4
9453031311
ref: 4
BRACE,COWLING,UPPER
9453031311
€ 18.50
5
9454031311
ref: 5
BRACE,COWLING,LOWER
9454031311
€ 10.00
6
0214205107
ref: 6
SCREW
0214205107
€ 2.50
7
0321205105
ref: 7
SCREW
0321205105
€ 1.00
8
9455031311
ref: 8
BRACE
9455031311
€ 2.50
9
0214205105
ref: 9
SCREW
0214205105
€ 2.50
10
9459331310
ref: 10
MOLDING,FUEL TANK
€ 32.00
11
9461131330
ref: 11
WINDOW
9461131330
€ 318.50
11
9461131340
ref: 11
E17
WINDOW,COWLING
€ 323.00
12
9463131310
ref: 12
MOLDING
9463131310
€ 18.00
12
9463131320
ref: 12
E17
MOULDING
€ 14.00
13
0214205204
ref: 13
SCREW
€ 2.00
14
0932005008
ref: 14
CUSHION
0932005008
€ 5.00
15
94430313407JJ
ref: 15
FOR 7JJ
COVER, RH (WHITE/RED)
€ 174.00
15
94430313407JH
ref: 15
FOR 7JH
COVER, RH (WHITE/BLUE)
€ 174.00
16
68680313107JG
ref: 16
FOR 7JJ
TAPE SET
€ 15.50
16
68680313107JF
ref: 16
FOR 7JH
TAPE SET
€ 0.00
17
9449143400
ref: 17
FASTENER,COWL SIDE COVER
9449143400
€ 8.00
18
0833211075
ref: 18
E-RING
€ 2.00
19
94440313407JJ
ref: 19
FOR 7JJ
COVER, LH (WHITE/RED)
€ 199.00
19
94440313407JH
ref: 19
FOR 7JH
COVER, LH (WHITE/BLUE)
94440313407JH
€ 199.00
20
68690313107JG
ref: 20
FOR 7JJ
TAPE SET
€ 15.50
20
68690313107JF
ref: 20
FOR 7JH
TAPE SET
€ 0.00
21
9449143400
ref: 21
FASTENER,COWL SIDE COVER
9449143400
€ 8.00
22
0833211075
ref: 22
E-RING
€ 2.00
23
9443943400
ref: 23
SCREW,COWLING SIDE COVER
9443943400
€ 3.50
24
0932008018
ref: 24
CUSHION
0932008018
€ 4.00
25
0214206127
ref: 25
SCREW 6X12
0214206127
€ 1.50
26
9447531310
ref: 26
BOSS, FRONT
9447531310
€ 5.00
27
9447631310
ref: 27
BOSS, REAR
9447631310
€ 5.00
28
0831011065
ref: 28
NUT
€ 2.00
29
0916006004
ref: 29
WASHER (6.5X24X1.6)
0916006004
€ 1.50
30
0916010051
ref: 30
WASHER
0916010051
€ 2.00
31
9452031320
ref: 31
BRACE, RH
€ 35.50
32
9456031320
ref: 32
BRACE, LH
€ 35.50
33
0110706125
ref: 33
BOLT
€ 2.00
34
0832121064
ref: 34
WASHER,LOCK
0832121064
€ 2.00
35
9457031320
ref: 35
BRACE, FRONT
9457031320
€ 11.50
36
9458031310
ref: 36
BRACE, RH
9458031310
€ 11.50
37
9459031310
ref: 37
BRACE, LH
9459031310
€ 10.50
38
9444531310
ref: 38
COVER,COWLING,LOWER
€ 12.00
39
0321205105
ref: 39
SCREW
0321205105
€ 1.00
40
9451031312
ref: 40
BRACE,COWLING
€ 98.00
41
9454949500
ref: 41
SPACER,COWLING
9454949500
€ 10.50
42
0110708165
ref: 42
BOLT
€ 2.00
43
0832121084
ref: 43
WASHER,LOCK,8.
0832121084
€ 2.50
44
0110708305
ref: 44
BOLT, LOWER
€ 2.50
45
0832121084
ref: 45
WASHER,LOCK,8.
0832121084
€ 2.50
46
0214206125
ref: 46
SCREW 6X12
0214206125
€ 2.00
47
6819731310291
ref: 47
TAPE,RIGHT
6819731310291
€ 8.50
48
6819831310291
ref: 48
TAPE,LEFT
6819831310291
€ 9.50
49
0932912004
ref: 49
CUSHION
0932912004
€ 1.50
50
0831321065
ref: 50
NUT
€ 2.00
