STAND

GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

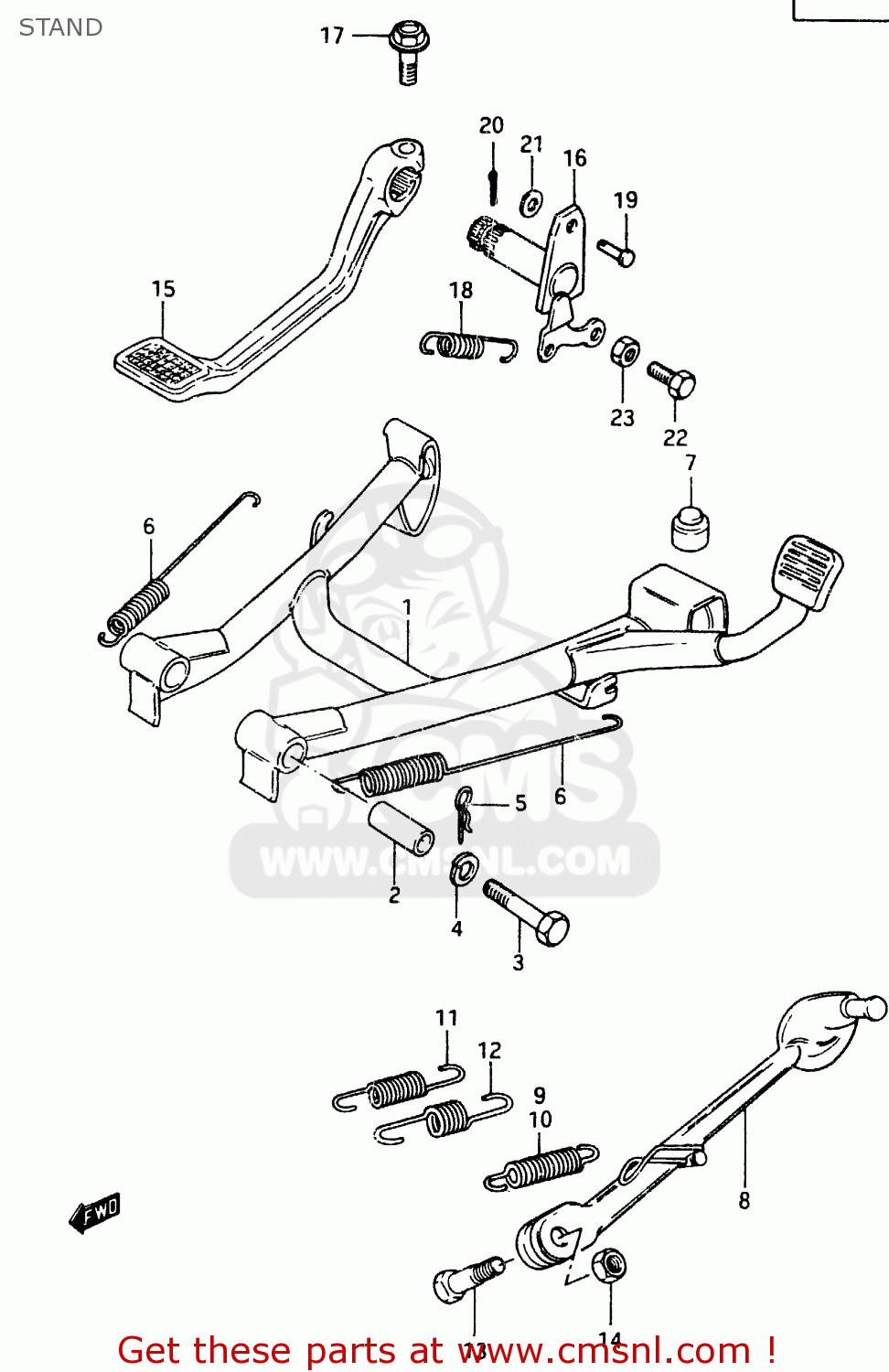

Stand diagram GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

STAND GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
STAND GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
STAND GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
4210031302
ref: 1
STAND,CENTER
€ 129.00
1
4210031310
ref: 1
E6,E24
STAND, CENTER
€ 0.00
2
0918010040
ref: 2
SPACER(10X16X38.8)
0918010040
€ 3.00
3
0910110034
ref: 3
BOLT
€ 6.50
4
0832121107
ref: 4
WASHER,LOCK,10
0832121107
€ 2.00
5
0938510001
ref: 5
CLIP
0938510001
€ 1.50
6
0944317017
ref: 6
SPRING
0944317017
€ 8.50
7
0932110001
ref: 7
CUSHION
0932110001
€ 2.50
8
4231031301
ref: 8
STAND,SIDE
4231031301
€ 44.00
8
4231031311
ref: 8
E15,E16,E18,E22,E26,
STAND, PROP
€ 55.50
9
0944317018
ref: 9
SPRING
0944317018
€ 5.50
10
0944315013
ref: 10
E15,E16,E18,E26,MODE
SPRING
0944315013
€ 22.50
11
0944314019
ref: 11
E22
SPRING
0944314019
€ 7.00
12
0944322002
ref: 12
E22
SPRING
€ 7.00
13
0911110024
ref: 13
BOLT(10X32)
0911110024
€ 4.50
14
0831022106
ref: 14
NUTM10X1.25X8
€ 2.00
15
4311131300
ref: 15
PEDAL,BRAKE
4311131300
€ 72.50
16
4312031301
ref: 16
ARM,BRAKE PEDAL
€ 18.50
17
0151708258
ref: 17
BOLT
0151708258
€ 2.50
18
0944314013
ref: 18
SPRING
0944314013
€ 21.50
19
0920006029
ref: 19
PIN
0920006029
€ 1.50
20
0411120158
ref: 20
PIN
0411120158
€ 1.50
21
0832221067
ref: 21
WASHER
0832221067
€ 2.00
22
0110706257
ref: 22
BOLT
€ 2.00
23
0831011067
ref: 23
NUT 6MM
€ 2.50
