CLUTCH

GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

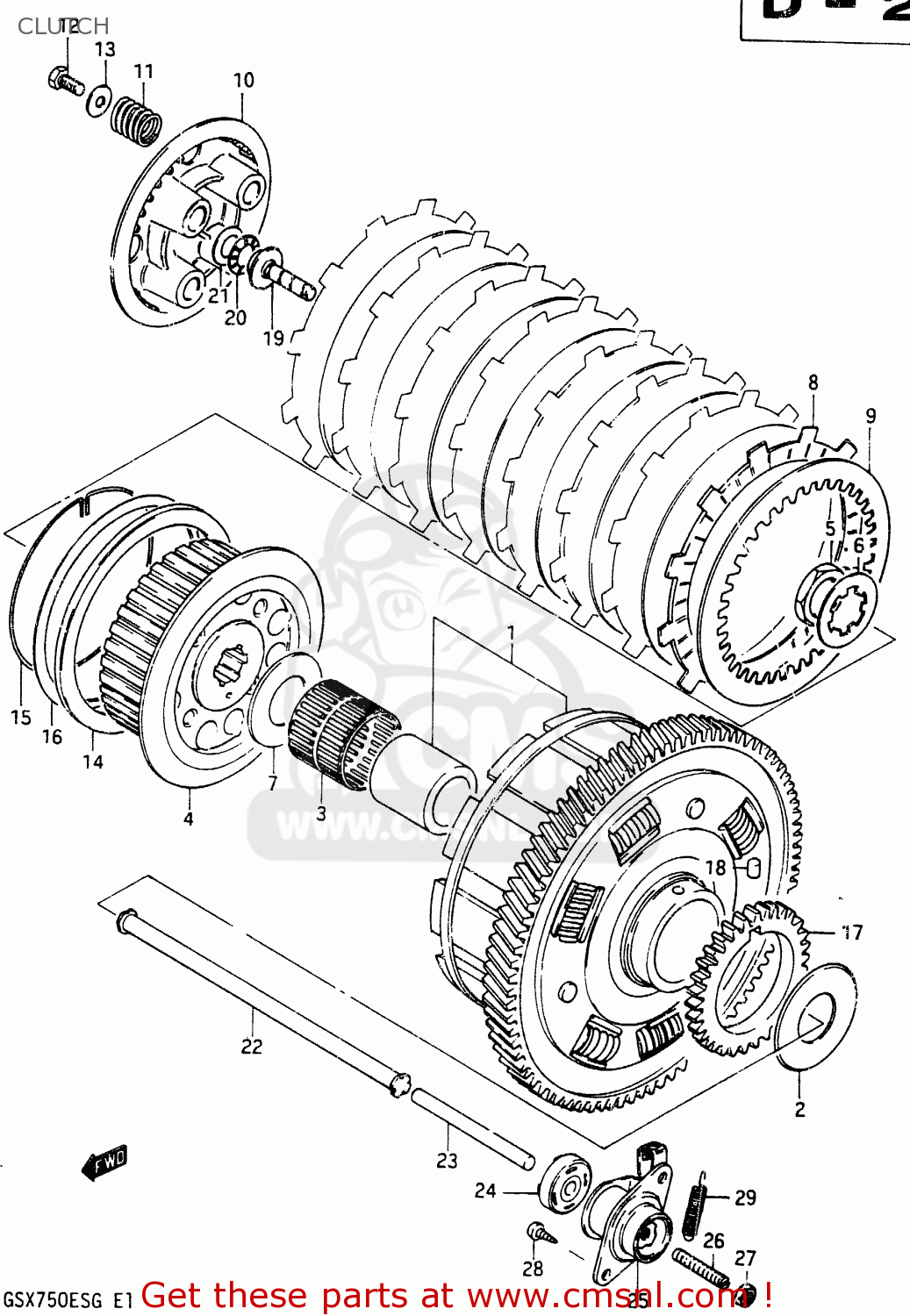

Clutch diagram GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

CLUTCH GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
CLUTCH GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
CLUTCH GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
2120031834
ref: 1
GEAR ASSEMBLY,PRIMARY DRIVE
€ 290.00
2
0916025037
ref: 2
WASHER(25X54X2.5)
0916025037
€ 9.00
3
0926335013
ref: 3
BEARING(35X40X39.8)
0926335013
€ 29.00
4
2141031304
ref: 4
HUB,CLUTCH SLEEVE
€ 99.00
5
0914024007
ref: 5
NUT
0914024007
€ 4.50
6
0916725007
ref: 6
WASHER,LOCK
0916725007
€ 7.50
7
0916025055
ref: 7
WASHER(25X50X2.5)
0916025055
€ 9.50
8
2144145100
ref: 8
PLATE,CLUTCH DRIVE (MCA)
2144145100
€ 20.00
9
2145131000
ref: 9
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
2145131000
€ 9.00
10
2146231300
ref: 10
PLATE,CLUTCH PRESSURE
2146231300
€ 35.00
11
0944020010
ref: 11
SPRING
0944020010
€ 5.00
12
0110706166
ref: 12
BOLT
€ 2.00
13
0916006020
ref: 13
WASHER
0916006020
€ 2.00
14
2147145101
ref: 14
SEAT,WAVE WASHER
2147145101
€ 16.00
15
2148145100
ref: 15
RING,STOPPER
2148145100
€ 5.00
16
0916400003
ref: 16
WASHER
0916400003
€ 9.00
17
1632131300
ref: 17
GEAR,OIL PUMP DRIVE
1632131300
€ 44.00
18
0926106002
ref: 18
PIN(6X6)
0926106002
€ 1.50
19
2312144100
ref: 19
PIECE,CLUTCH PUSH
2312144100
€ 21.50
20
0926315003
ref: 20
BEARING(15X28X2)
0926315003
€ 7.00
21
0916015015
ref: 21
WASHER
€ 4.00
22
2311031300
ref: 22
ROD,CLUTCH PUSH
2311031300
€ 25.00
23
2311131301
ref: 23
ROD,CLUTCH PUSH,L
2311131301
€ 14.50
24
0928506018
ref: 24
SEAL,OIL(6X34X7.5)
0928506018
€ 12.00
25
2320031300
ref: 25
SCREW ASSY,CLUTCH RELEASE
2320031300
€ 104.50
26
0913406010
ref: 26
SCREW(6X25)
0913406010
€ 3.00
27
0831022067
ref: 27
NUT 6MM
0831022067
€ 2.50
28
0311106168
ref: 28
SCREW
€ 1.50
29
0944308001
ref: 29
SPRING
0944308001
€ 3.00
