TJRN SIGNAL LAMP

GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

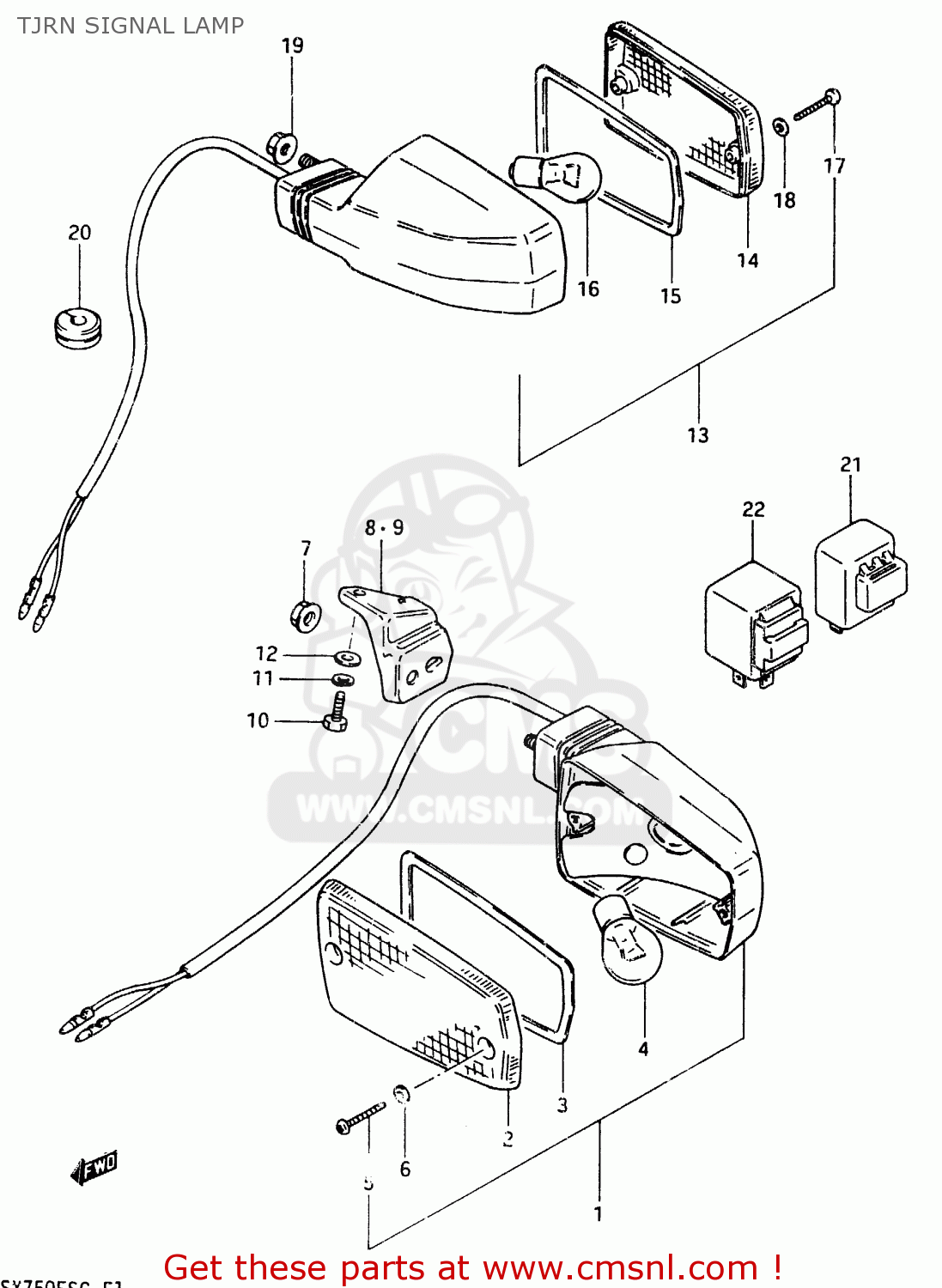

Tjrn signal lamp diagram GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

TJRN SIGNAL LAMP GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
TJRN SIGNAL LAMP GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
TJRN SIGNAL LAMP GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
3560100A10
ref: 1
E1,E6,E24
LAMP ASSY, FRONT TURN SIGNAL
3560100A10
€ 77.50
1
3560143421
ref: 1
E4,E15,E16,E18,E22,E
LAMP ASSY, FRONT TURN SIGNAL
3560143421
€ 98.50
1
3560143440
ref: 1
MODEL G E17
LAMP ASSY,FR TURN SIGNAL
3560143440
€ 98.50
2
3561243410
ref: 2
LENS
3561243410
€ 11.00
2
3561200A80
ref: 2
MODEL G E17
LENS,FR TURNSIGNAL LAMP
3561200A80
€ 11.00
3
3561343410
ref: 3
GASKET (NAS)
3561343410
€ 3.50
4
0947112006
ref: 4
E1,E6,E26
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
4
0947112045
ref: 4
E4,E15,E16,E17,E18,E
BULB(12V21W)
0947112045
€ 5.00
5
0321104208
ref: 5
SCREW
0321104208
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0831626086
ref: 7
NUT
€ 1.50
8
3567131300
ref: 8
GSX750ESF/EFF/ESG
BRACKET,FRONT TURN SIGNAL
3567131300
€ 4.50
9
3568131300
ref: 9
GSX750ESF/EFF/ESG
BRACKET,FRONT TURN SIGNAL
3568131300
€ 5.50
10
0110708165
ref: 10
BOLT
€ 2.00
11
0832121084
ref: 11
WASHER,LOCK,8.
0832121084
€ 2.50
12
0832211084
ref: 12
WASHER
0832211084
€ 1.50
13
3560331300
ref: 13
E1,E6,E24
LAMP ASSY REAR
€ 77.50
13
3560331321
ref: 13
E4,E16,E18,E22,E25,E
LAMP ASSY, REAR TURN SIGNAL
3560331321
€ 75.00
13
3560331340
ref: 13
E15
LAMP ASSY, REAR TURN SIGNAL
€ 79.00
13
3560331321
ref: 13
MODEL F E17
LAMP ASSY, REAR TURN SIGNAL
3560331321
€ 75.00
13
3560331350
ref: 13
MODEL G E17
LAMP ASSY, REAR TURN SIGNAL
3560331350
€ 75.00
14
3561243410
ref: 14
E1,E6,E24
LENS
3561243410
€ 11.00
14
3565243420
ref: 14
E4,E15,E16,E18,E22,E
LENS,TURN SIGN
3565243420
€ 11.50
14
3565200A70
ref: 14
MODEL G E17
LENS
3565200A70
€ 11.50
15
3561343410
ref: 15
GASKET (NAS)
3561343410
€ 3.50
16
0947112006
ref: 16
E1,E6,E24
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
16
0947112045
ref: 16
E4,E15,E16,E17,E18,E
BULB(12V21W)
0947112045
€ 5.00
17
0321104208
ref: 17
SCREW
0321104208
€ 1.50
18
3562743010
ref: 18
GASKET (NAS)
3562743010
€ 2.00
19
0831626086
ref: 19
NUT
€ 1.50
20
0930805011
ref: 20
GROMMET
0930805011
€ 2.00
21
3861031310
ref: 21
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
22
3861045091
ref: 22
E22
RELAY ASSY,TUR
€ 67.50
