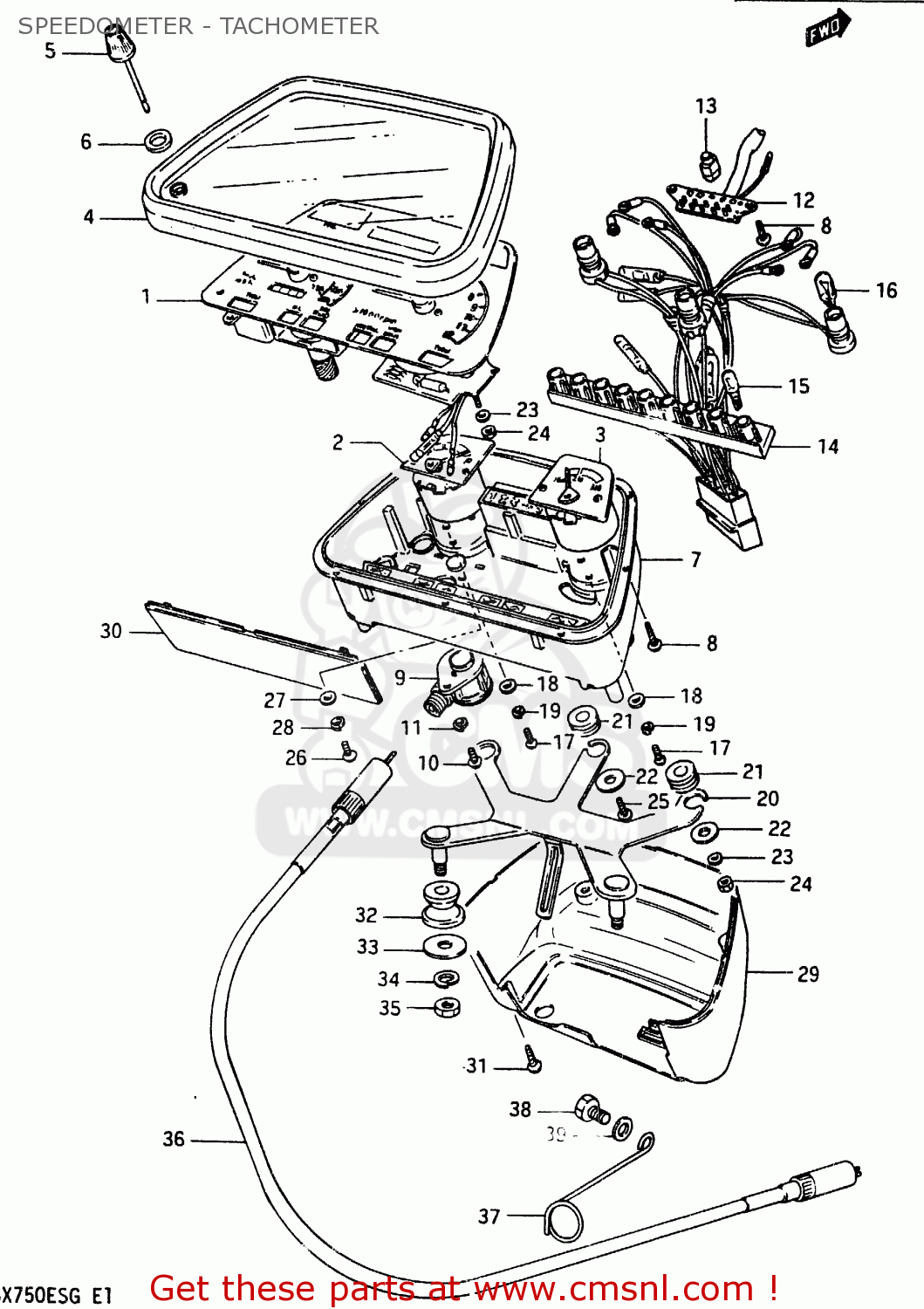

SPEEDOMETER - TACHOMETER - GSX750ES 1986 (G) (E01 E2 E4 E6 E15 E16 17 22 24 25 26 34 39 53)

ref

part #

description

quantity

1

3412031320
ref: 1

SPEEDO & TACHOMETER (MILE/KILO)

€ 0.00

1

3412031321
ref: 1
MODEL G E2

SPEEDO/TACHOMETER (MILE/KILO)

€ 0.00

1

3412031310
ref: 1

SPEEDO & TACHOMETER (KILO)

€ 824.00

1

3412031340
ref: 1
E15,E16,E18,E22,E26

SPEEDO & TACHOMETER (KILO)

€ 865.50

1

3412031380
ref: 1
E24

SPEEDO & TACHOMETER (KILO)

€ 824.00

2

3432049910
ref: 2

METER,FUEL

€ 119.50

3

3473049920
ref: 3
FOR MILE

METER,OIL TEMPERATURE

€ 0.00

3

3473049910
ref: 3
FOR KILO

3473049910

4

3415049910
ref: 4

HOOD,METER

€ 83.00

5

3412449910
ref: 5

KNOB,TRIP METER

€ 10.00

6

3499649910
ref: 6

SEAL,TRIP KNOB

€ 4.00

7

3411131310
ref: 7

CASE,METER INNER

€ 78.00

7

3411131470
ref: 7
E17

CASE, METER

€ 0.00

8

0314103106
ref: 8

SCREW

€ 1.50

9

3413149300
ref: 9

GEAR BOX,SPEEDOMETER

€ 197.50

10

0211204108
ref: 10

SCREW 4X10

€ 2.00

11

0832121047
ref: 11

WASHER,LOCK 4M

€ 2.00

12

3645331310
ref: 12

SOCKET,GEAR INDICATOR

€ 28.50

13

0947112071
ref: 13

BULB(14V1.12W)

€ 5.00

14

3417031310
ref: 14

SOCKET UNIT,METER

€ 125.50

14

3417031340
ref: 14
E15,E16,E18,E22,E26,

SOCKET, METER

€ 125.50

15

0947112085
ref: 15

BULB(12V3W,WB371,T7)

€ 3.00

16

0947112082
ref: 16

BULB(12V3.4W,T10,BF175-01450A)

€ 3.50

17

0211203128
ref: 17

SCREW 3X12

€ 2.50

18

0832221038
ref: 18

WASHER

€ 2.00

19

0832121038
ref: 19

LOCK WASHER

€ 1.50

20

3495031310
ref: 20

BRACKET,METER

€ 16.50

21

3495528010
ref: 21

CUSHION

€ 4.00

22

3418149300
ref: 22

WASHER,COMBINATION METER

€ 1.50

23

0832131046
ref: 23

LOCK WASHER

€ 2.00

24

0831022048
ref: 24

NUT 4MM

€ 2.00

25

0314204169
ref: 25

SCREW

€ 2.00

26

0211203108
ref: 26

SCREW

€ 1.50

27

0832221038
ref: 27

WASHER

€ 2.00

28

0832121038
ref: 28

LOCK WASHER

€ 1.50

29

3419349910
ref: 29

COVER,METER LWR

€ 77.50

30

3419749910
ref: 30

PLATE,COVER

€ 20.50

31

0314104165
ref: 31

SCREW

€ 2.00

32

3495631001
ref: 32

CUSHION,METER BRACKET

€ 4.50

33

0916008057
ref: 33

WASHER (8.5X20X1.6)

€ 2.00

34

0832121084
ref: 34

WASHER,LOCK,8.

€ 2.50

35

0831011085
ref: 35

NUT

€ 1.50

36

3491033400
ref: 36

CABLE ASSY,SPEEDOMETER

€ 28.50

37

3493845100
ref: 37

CLAMP,SPEEDOMETER CABLE

€ 14.50

38

0110706167
ref: 38

BOLT

€ 3.00

39

0832221067
ref: 39

WASHER

€ 2.00
